Description

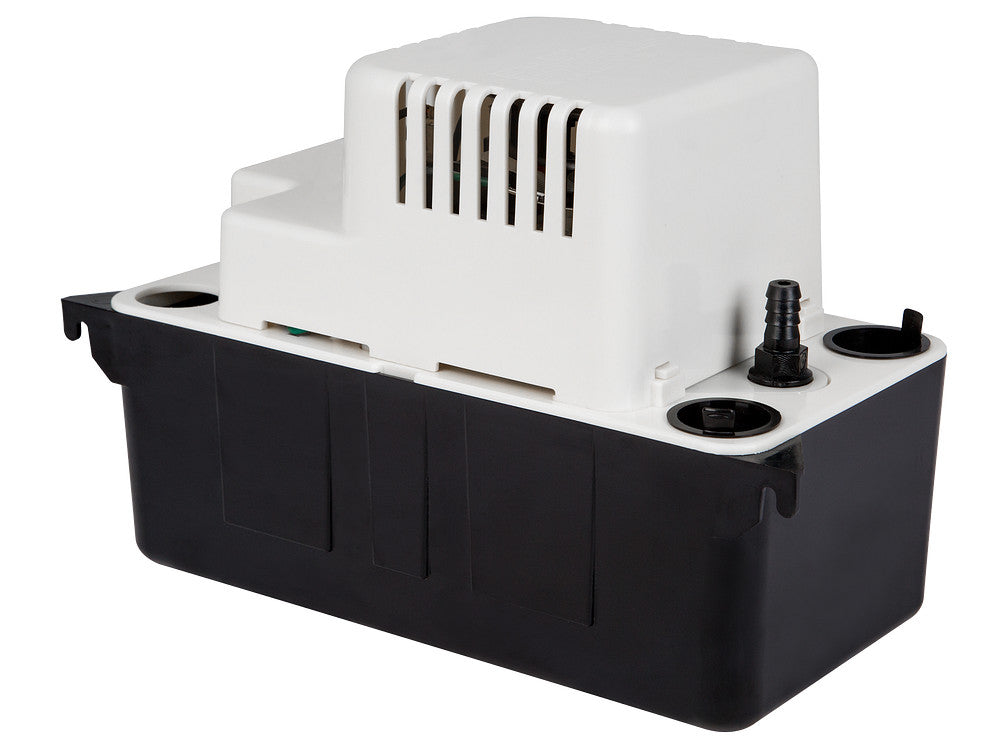

115V Condensate Automatic HVAC Drain Pump with Check Valve
The Little Giant VCMA-15UL condensate pump is a compact, automatic pump engineered to collect and remove condensate from air conditioning systems, refrigeration units, dehumidifiers, and high-efficiency furnaces where gravity drainage isn’t feasible. Designed for HVAC and water management applications, this pump delivers reliable performance with minimal maintenance.
Built with a 1/50 HP motor and operating on 115 VAC, the VCMA-15UL offers a 0.5 gallon reservoir and a maximum shut-off head of 15 feet, pumping up to 65 gallons per hour at 1 ft of lift. The included 3/8″ barbed discharge check valve helps prevent backflow and maintain efficient condensate removal.
Key Benefits – VCMA-15UL Condensate Pump
- Reliable Automatic Operation: The VCMA-15UL starts and stops automatically based on condensate levels, simplifying maintenance in HVAC systems.
- Compact Yet Powerful Design: Equipped with a 1/50 HP 115 V motor, this pump delivers up to 65 GPH at 1 ft lift while handling lifts up to 15 feet.
- Built-In Check Valve: The removable 3/8″ barbed check valve helps prevent backflow and maintains consistent drain performance.
- Durable Construction: With a plastic body and GF polypropylene impeller, the pump resists corrosion and wear in HVAC environments.
- Easy Installation: Standard barb discharge and screened suction simplify application and hookup to existing condensate drain tubing.
- Wide HVAC Compatibility: Ideal for use with air conditioners, dehumidifiers, condensing furnaces, and refrigeration equipment.
Condensate Pump Specifications
| Technical Specification | Details |
| Horsepower | 1/50 hp |
| Voltage | 115 V |
| Amps (Full Load) | 1 A |
| Flow Rate | 65 GPH (1.08 GPM) |
| Shut-Off Head | 15 ft |
| Tank Capacity | 0.5 gallons |
| Cord Length | 6 ft |
| Discharge Size | 3/8" barbed with check valve |
| Max Fluid Temperature | 75°F |
| Weight | 3.9 lbs (4.4 lbs packaged) |
| Certification | CSA/UL approved |
| Warranty | 12 months |
What’s Included
- Little Giant VCMA-15UL condensate pump (model 554401)
- Built-in removable check valve
Key Features of the Automatic HVAC Drain Pump
High-Performance Motor
1/50 hp motor delivers steady condensate removal with flow rates up to 65 GPH at 60 Hz.
Compact Vertical Design
Space-saving vertical layout allows installation in tight areas without sacrificing pumping performance.
1/2-Gallon Tank Capacity
Provides adequate holding capacity for reliable, continuous condensate collection.
Reliable Shut-Off Head
Capable of lifting condensate up to 15 feet to handle demanding drainage setups.
Built-In Check Valve
Helps block backflow to support smooth and efficient drainage operation.
Durable Construction
Features an ABS tank and motor cover paired with a stainless steel motor shaft for lasting durability.
Versatile Inlets
Includes three 1-1/8" inlet openings with removable plugs for flexible connection options.
CSA/UL Certified
Approved to meet recognized safety standards in both the United States and Canada.
Applications
This condensate pump is ideal for:
- Air conditioning systems (where gravity drainage isn’t possible)
- High-efficiency gas furnaces and condensing boilers
- Refrigeration and dehumidification equipment
- HVAC installations in basements and attics
- Commercial and residential HVAC systems
(Suitable wherever automatic condensate removal is required.)
Get the Little Giant VCMA-15UL Condensate Pump
Check out the Little Giant VCMA-15UL condensate pump from Cleanflow for efficient, automatic removal of HVAC condensate in air conditioning, furnace, and dehumidifier applications. With a 115 V, 1/50 HP motor, up to 65 GPH capacity, and a built-in check valve, this pump delivers reliable drainage performance with minimal maintenance.
Explore more drainage solutions in the Condensate Pumps collection → or buy the Little Giant VCMA-15UL condensate pump today for dependable HVAC condensate removal performance.
Frequently Asked Questions
What is a condensate pump used for?
A condensate pump is used to remove water produced by HVAC systems when gravity drainage is not possible. It is commonly installed with air conditioners, furnaces, dehumidifiers, and refrigeration equipment.
What does a 15 ft lift rating mean?
The 15 ft lift rating indicates the maximum vertical height the pump can move condensate water before shutting off. This allows the pump to discharge water upward from basements or lower installation points.
What does 65 GPH mean?
65 GPH means the pump can move up to 65 gallons of condensate per hour at a 1 ft lift. Flow rate decreases as discharge height increases.
Does the VCMA-15UL include a check valve?
Yes. The pump includes a removable 3/8″ barbed discharge check valve to help prevent backflow and maintain efficient condensate removal.
Can this pump handle warm condensate?
The pump is designed for typical HVAC condensate applications and is suitable for moderate fluid temperatures commonly produced by air conditioning and high-efficiency furnace systems.
Is the VCMA-15UL easy to install?
Yes. The pump features standard 3/8″ barbed discharge connections, multiple inlet options, and a screened intake, making installation straightforward with common HVAC drain tubing.
Does the pump run continuously?
No. The pump operates automatically, turning on when condensate reaches a preset level and shutting off once the reservoir is emptied.
Where can I find other condensate pump options?
Additional HVAC condensate management solutions are available in the Condensate Pumps collection at Cleanflow.
