Description

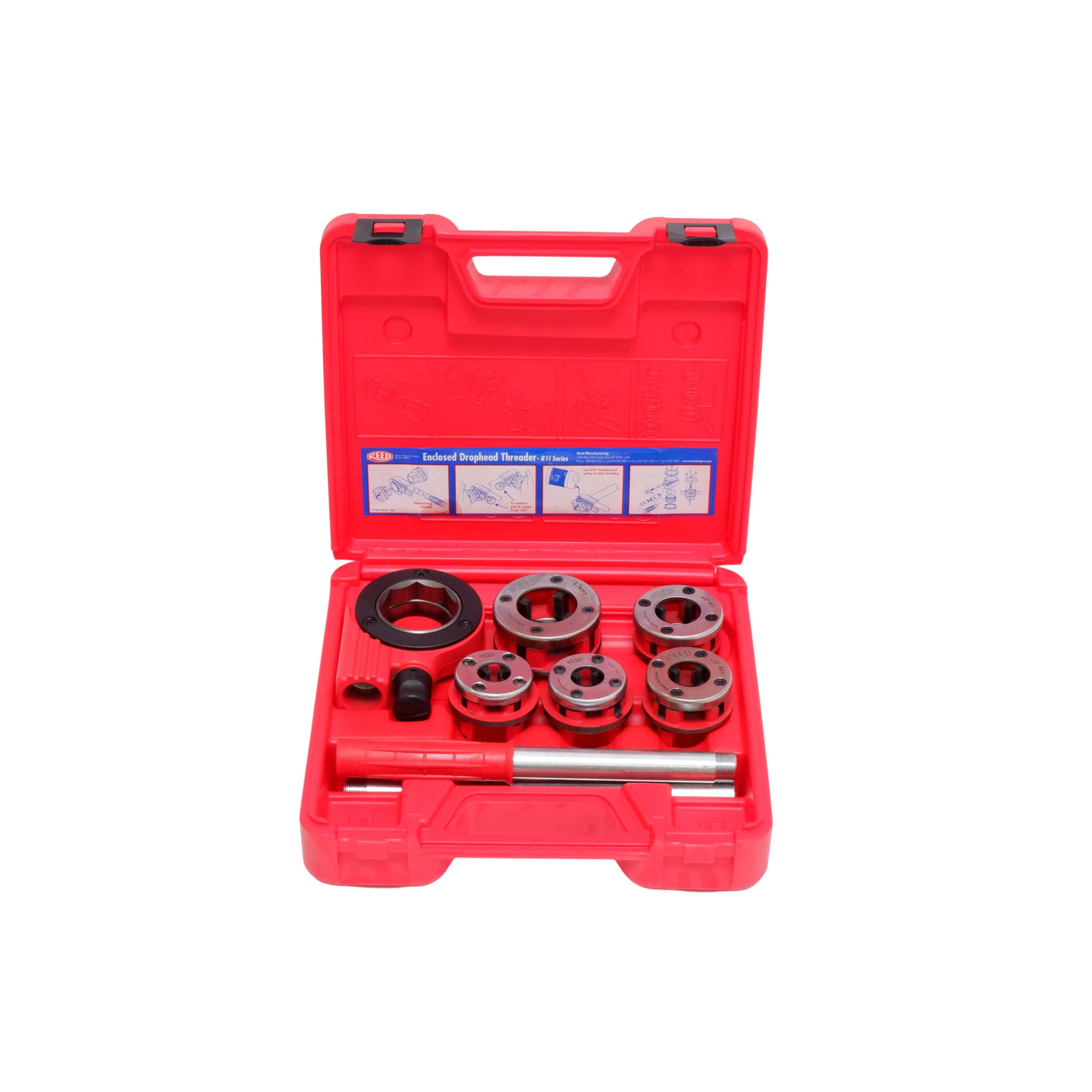

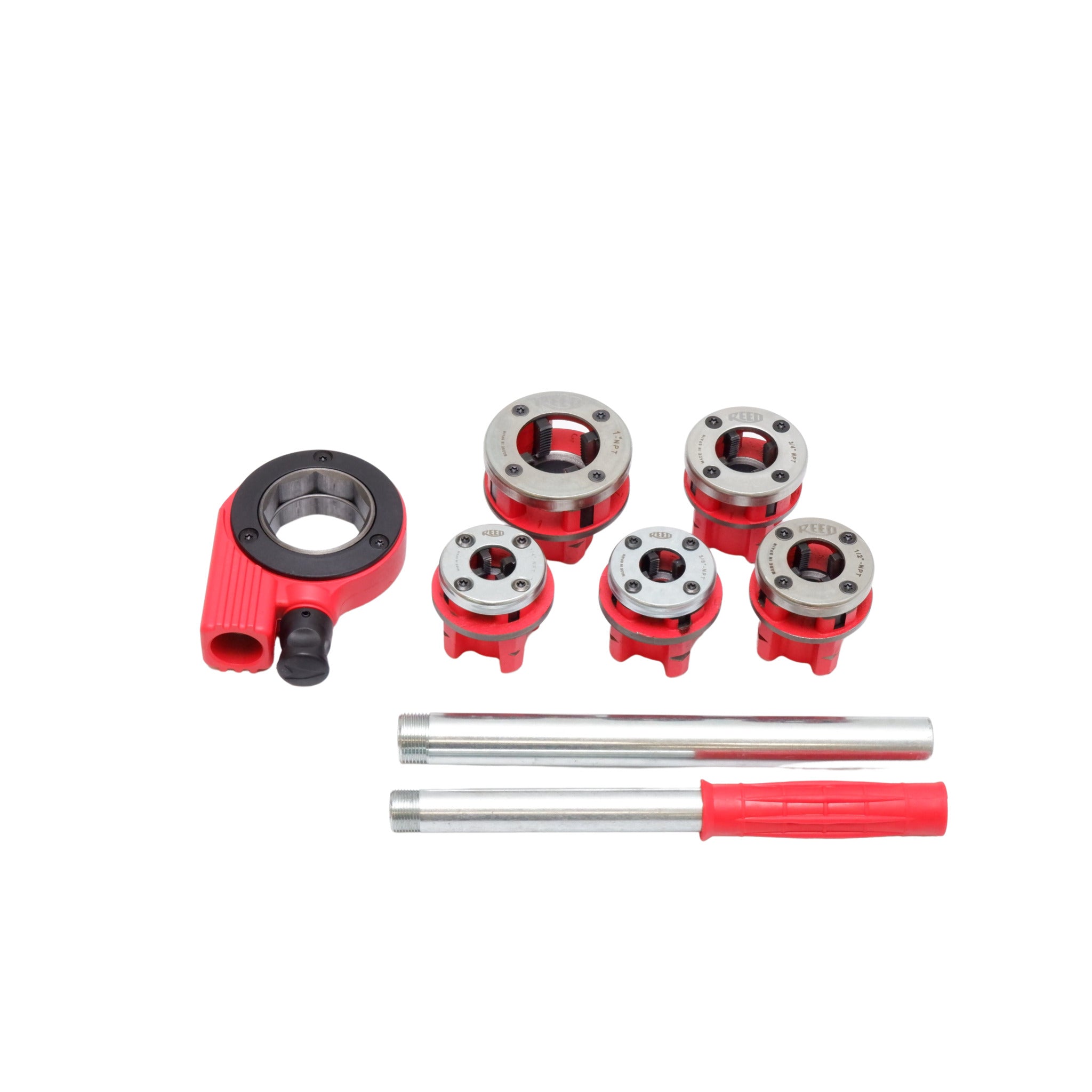

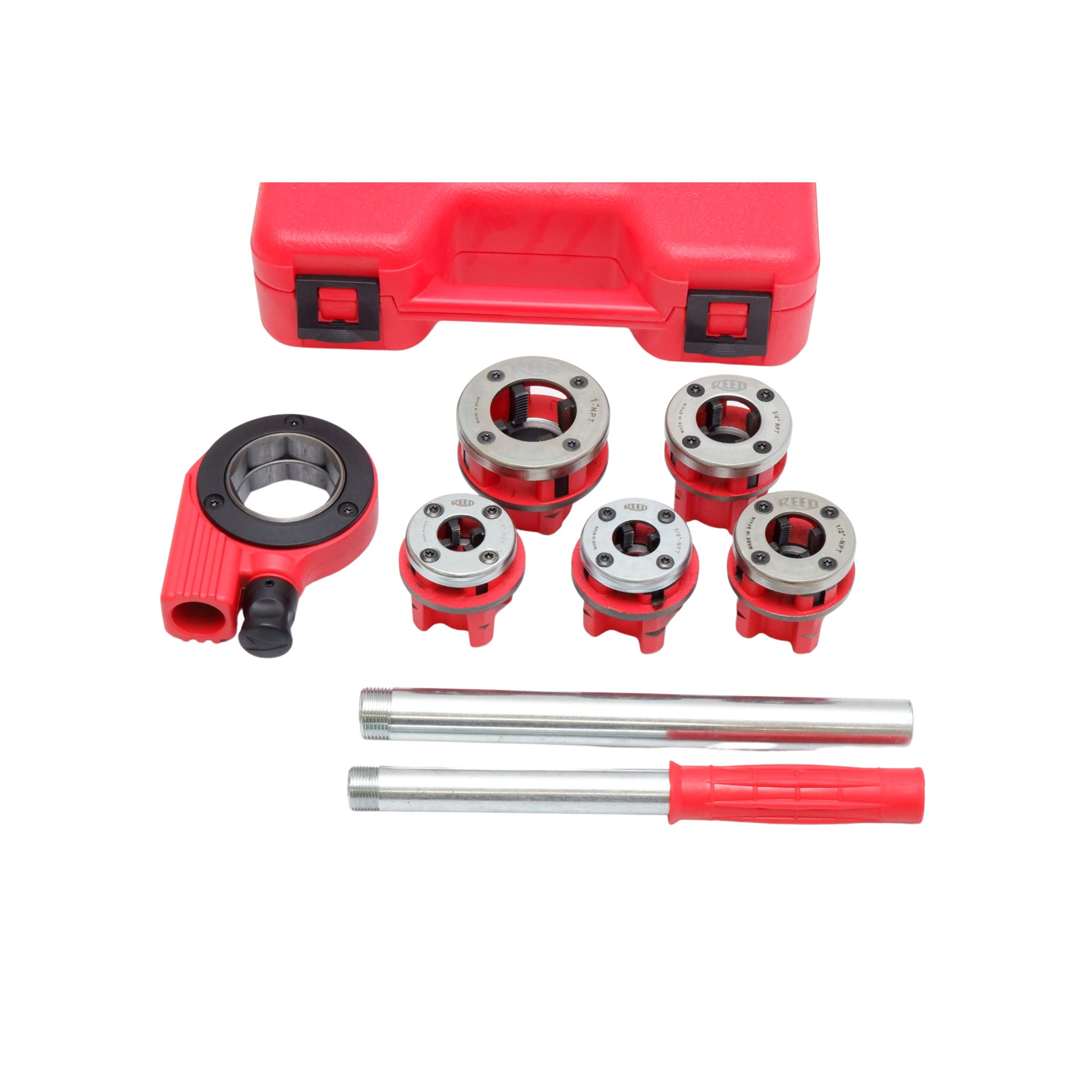

Five-Head Enclosed Ratchet Threader Set for 1/4" to 1" NPT Pipe | 12.7 lbs With Carrying Case
Overview
Most residential and light commercial plumbing uses pipe sized 1" or smaller. The Reed DH81-2 is a pipe threading die set that covers this range with five enclosed dropheads from 1/4" to 1" NPT, packed in a reinforced case with a ratchet handle. At 12.7 lbs, it weighs 44% less than the DH84-4. All five heads are cross-compatible with RIDGID 11-R threaders.
Specifications
| Specification | Detail |
|---|---|
| Catalog No. | DH81-2 |
| Item Code | 05202 |
| Pipe Range | 1/4" to 1" NPT |
| Drophead Sizes | 1/4, 3/8, 1/2, 3/4, 1 in |
| Number of Heads | 5 |
| Die Material | Alloy steel (CNC machined) |
| Head Material | Malleable iron (CNC machined) |
| Weight | 12.7 lbs (5.8 kg) |

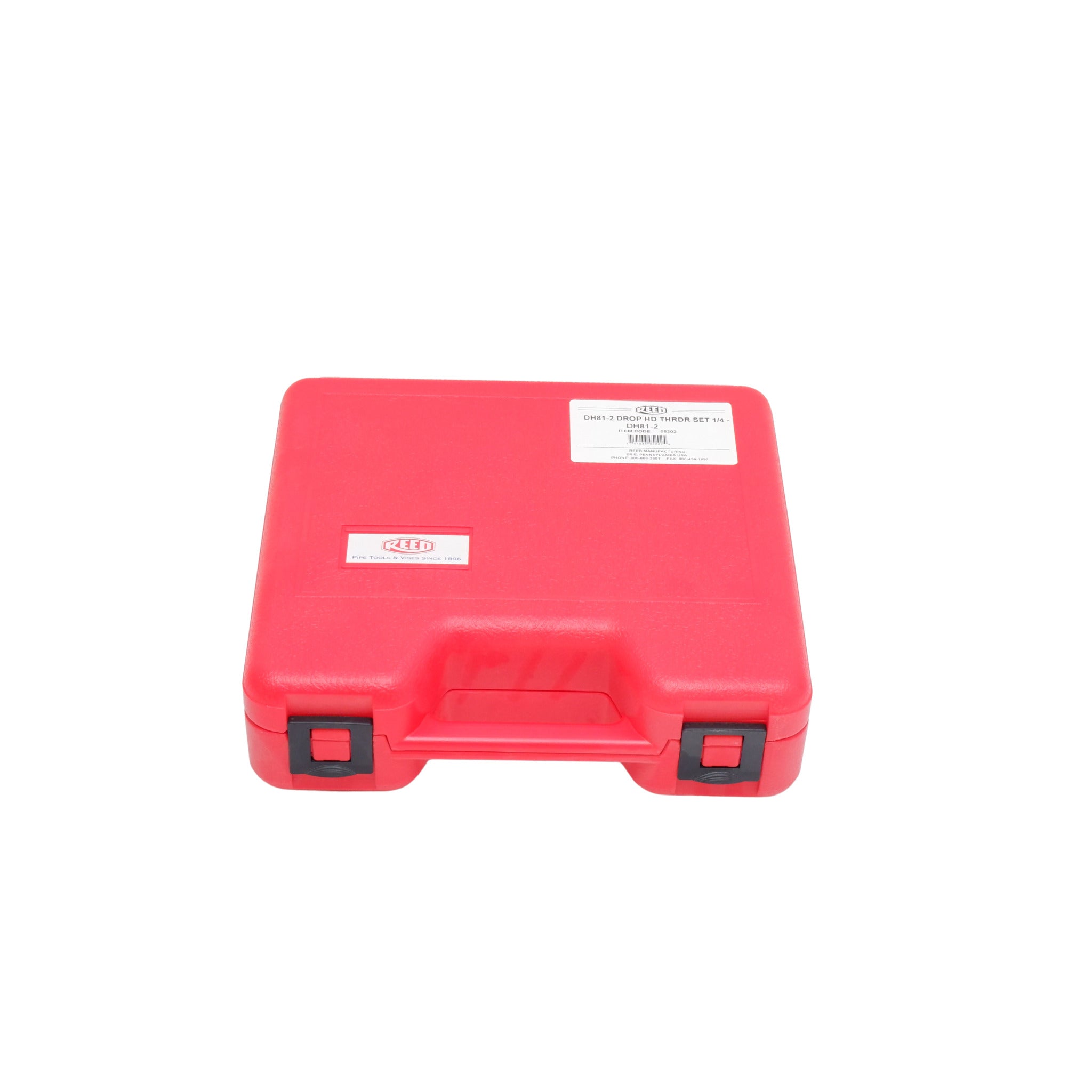

| Case | Reinforced plastic carrying case |
| Cross-Compatibility | RIDGID 11-R, R200, Super-Ego 600, Virax 1362, Rothenberger Super Cut |
| Power Drive | Reed 601PD (all 5 heads) |
| Warranty | 5 years |
Key Features
- Full Small-Bore Coverage. Five heads span every standard NPT size from 1/4" to 1", including the 1/4" and 3/8" sizes not available in the DH84 series. One pipe threading die set handles all small-bore work without additional heads.
- CNC Alloy Steel Dies. Dies and heads are manufactured on CNC machines for consistent thread quality across all five sizes. The alloy steel cutting edges hold up through repeated use on steel, iron, and brass pipe.
- 44% Lighter Than the DH84-4. At 12.7 lbs for the full set, the DH81-2 is the lightest small pipe threader in Reed's enclosed threader lineup, practical to carry between floors, up ladders, and across job sites.
- Enclosed Die Design. Dies stay fixed inside each head throughout the cut, maintaining alignment without manual adjustment. This produces cleaner threads than an exposed ratchet pipe threader where die segments can shift during the cut.
- Universal Cross-Compatibility. Every head in the DH81-2 falls under the 1-1/4" threshold, so all five fit RIDGID 11-R, Super-Ego 600, Rothenberger Super Cut threaders, and the Reed 601PD power drive.
Compatibility
All five dropheads in the DH81-2 fit these threading platforms, making it a versatile NPT pipe threader across multiple systems:
- Reed 601PD power drive (motorized threading, 1/2" to 1-1/4")
- RIDGID 11-R and R200 hand ratchet threaders
- Super-Ego 600, Virax 1362, Rothenberger Super Cut hand threaders
- Supertronic portable power threaders
Individual replacement heads are available as Reed Enclosed Dropheads when dies wear out.
Applications
The DH81-2 is the smallest enclosed ratchet threader set in the Reed lineup, covering NPT connections on:
- Residential water supply lines and fixture hookups
- Instrument and gauge piping
- Pneumatic air lines
- Small-bore gas piping (1" and under)
- Condensate drain lines
- Control panel piping in industrial settings
- Maintenance and repair on existing threaded systems
Buy Reed DH81-2 Enclosed Ratchet Threader Set Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Reed dealer serving customers across Canada and the United States. Free shipping on orders over $199, with a 30-day return policy. The Reed DH81-2 is covered by Reed's 5-year warranty on manual tools.
Browse the full Reed pipe threading collection or see all Reed pipe tools and pipe tools.
Frequently Asked Questions
What pipe sizes does the Reed DH81-2 thread?
The DH81-2 threads 1/4", 3/8", 1/2", 3/4", and 1" NPT pipe. It includes five enclosed dropheads covering every standard size in this range. For pipe over 1", the DH82 and DH84 series cover up to 1-1/4" and 2" respectively.
Reed DH81-2 vs DH84-4: which set do I need?
Choose the DH81-2 as your manual pipe threader for work on pipe 1" and under, where its lighter weight (12.7 vs 22.8 lbs) and lower cost matter. The DH84-4 covers 1/2" to 2" for larger pipe. Both use CNC alloy steel dies and fit the Reed 601PD power drive.
Best enclosed ratchet threader for small pipe?
For NPT pipe 1" and under, the Reed DH81-2 is the lightest enclosed ratchet threader set at 12.7 lbs and the only one with both 1/4" and 3/8" heads. Budget alternatives use exposed dies, which require manual alignment and produce less consistent threads on repeated cuts.
Do Reed enclosed threader heads fit RIDGID 11-R?
Yes. All Reed enclosed dropheads up to 1-1/4" are interchangeable with RIDGID 11-R and R200, Super-Ego 600, Virax 1362, and Rothenberger Super Cut threaders. Since the DH81-2 contains only heads 1" and under, all five fit these platforms.
Which Reed enclosed threader set covers 1/4 inch pipe?
The DH81-2 is the only Reed enclosed ratchet threader set with a 1/4" head. No other standard set in the DH81, DH82, or DH84 series starts below 3/8". Individual 1/4" enclosed dropheads are also sold separately.
