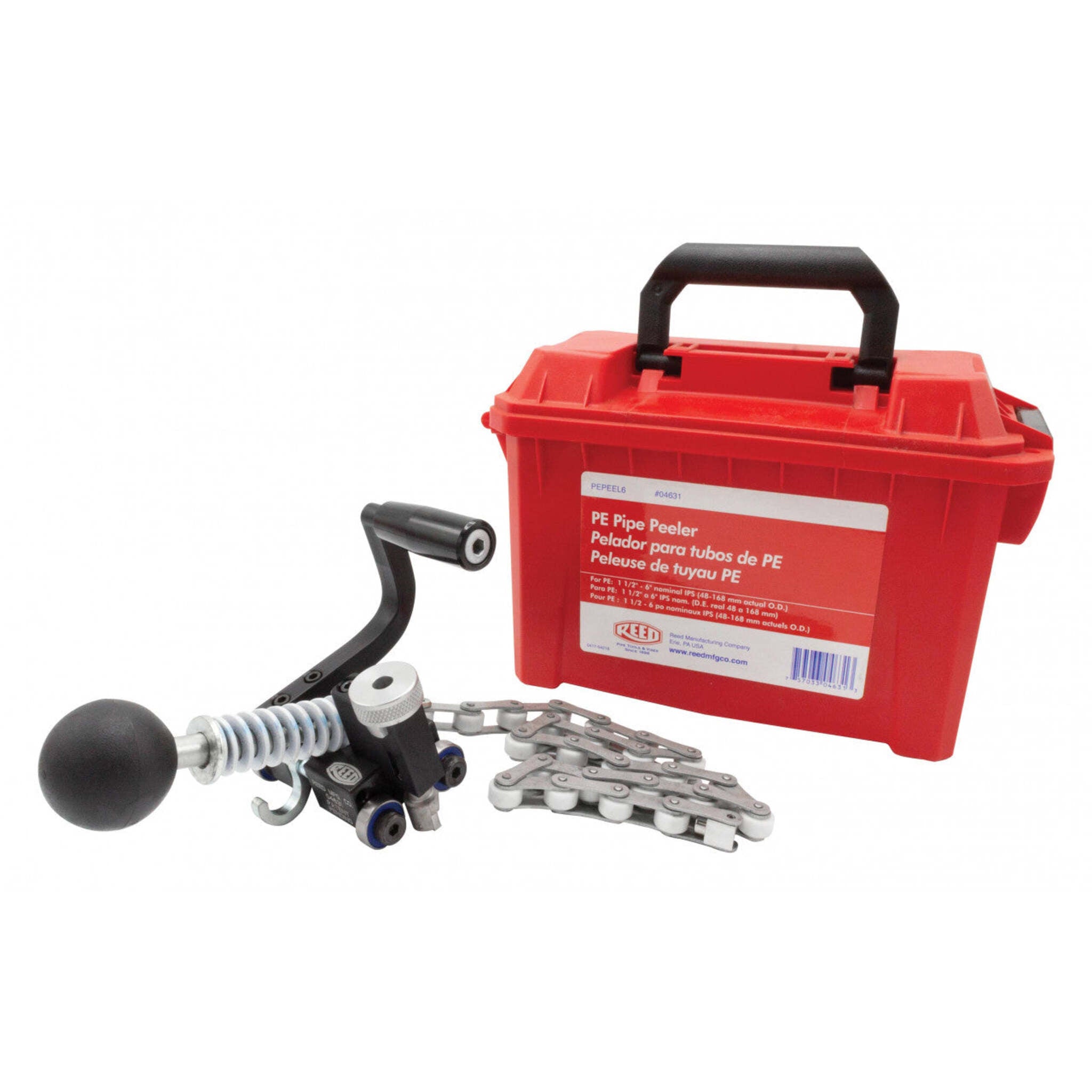

Reed PEPEEL6 PE Pipe Peeler for Electrofusion

Electrofusion Surface Preparation Tool for 1-1/2" to 6" PE and HDPE Pipe

Product Overview

Electrofusion joints on PE pipe require removing at least 0.007 inches of oxidized outer material before the fitting contacts the pipe. The Reed PEPEEL6 PE pipe peeler strips 0.010 inches per pass across diameters from 1-1/2 to 6 inches, clearing the standard in one revolution. This PE pipe peeler for electrofusion uses a spring-loaded carbide blade that holds a consistent depth on round and out-of-round pipe.

Key Features of this Reed PEPEEL6 PE Pipe Peeler

Multi-Size Coverage: 1-1/2" to 6"

Covers the full range from 1-1/2 to 6 inches (48 to 180mm actual O.D.), so you can handle service and distribution pipe sizes without carrying multiple peelers. The chain wraps around the pipe, and the polyethylene pipe peeler spirals back, cutting a clean path every revolution.

Four-Sided Carbide Blade

Each blade has four cutting edges, so you can rotate to a fresh side when one dulls and get four times the blade life before replacing. The blade maintains continuous contact throughout each revolution, preventing skips that leave unpeeled strips.

Spring-Loaded Depth Control

The spring-loaded blade holder applies constant pressure against the pipe surface, so you get uniform peel depth on out-of-round sections without manual adjustment. This HDPE pipe peeler compensates automatically for high and low spots, leaving the surface ready for electrofusion.

Corrosion-Resistant Build

Acetal copolymer rollers and plated side plates resist corrosion, so you can work in wet trenches and underground utility environments without rust slowing you down. This PE pipe surface preparation tool holds up where moisture and soil contact are constant.

Electrofusion Surface Preparation

Electrofusion welding bonds PE pipe to a fitting through an embedded heating coil. If the oxidized outer layer remains, the joint fails. A pipe peeler for electrofusion welding removes this layer mechanically, exposing a fresh bonding surface.

Industry guidelines require removing at least 0.007 inches (0.2mm) from where the fitting coils contact the pipe. The Reed PEPEEL6 PE pipe peeler removes 0.010 inches per pass, exceeding this minimum so you get full oxide clearance in a single revolution. Abrasives like sandpaper and emery cloth redistribute contaminants rather than removing them. A PE pipe peeler for electrofusion strips material cleanly without grit residue. After peeling, wipe with an isopropanol pipe wipe before assembling the joint.

Specifications

Applications

• Municipal water and gas: Electrofusion surface prep on PE water mains, gas distribution lines, and sewer force mains from 1-1/2 to 6 inches. This polyethylene pipe peeler covers the most common service and distribution sizes in one tool.
• Electrofusion tapping saddles: Peel the pipe surface before installing electrofusion tapping saddles. Reed recommends chamfering the pipe edge to prevent damage to the electrofusion fitting.
• Industrial piping and mining: Use this HDPE pipe peeler for electrofusion joint prep on slurry lines, irrigation systems, and industrial process piping. This PE pipe surface preparation tool works on PE, HDPE, and PP-RCT pipe.
• Contractor field work: The Reed PEPEEL6 PE pipe peeler weighs 3.1 lbs and needs only 5-1/2 inches of turning clearance, so you can work in tight trench conditions. Cleanflow carries the Reed PEPEEL6 for sale with the larger PEPEEL12 for projects that span both size ranges.

Buy PEPEEL6 PE Pipe Peeler for Electrofusion Online from Cleanflow

Cleanflow Utility Supply Company is an authorized Reed supplier. Cleanflow ships the Reed PEPEEL6 for sale across Canada and the USA, with free shipping on orders over $199. Email info@cleanflow.ca for returns or exchanges within 30 days.

For pipes above 6 inches, pair with the Reed PEPEEL12 PE Pipe Peeler to cover the full 1-1/2 to 12 inch range. The Reed PEPEEL6 PE pipe peeler ships ready to use with the carbide blade installed and is backed by Reed's 5-year warranty.
