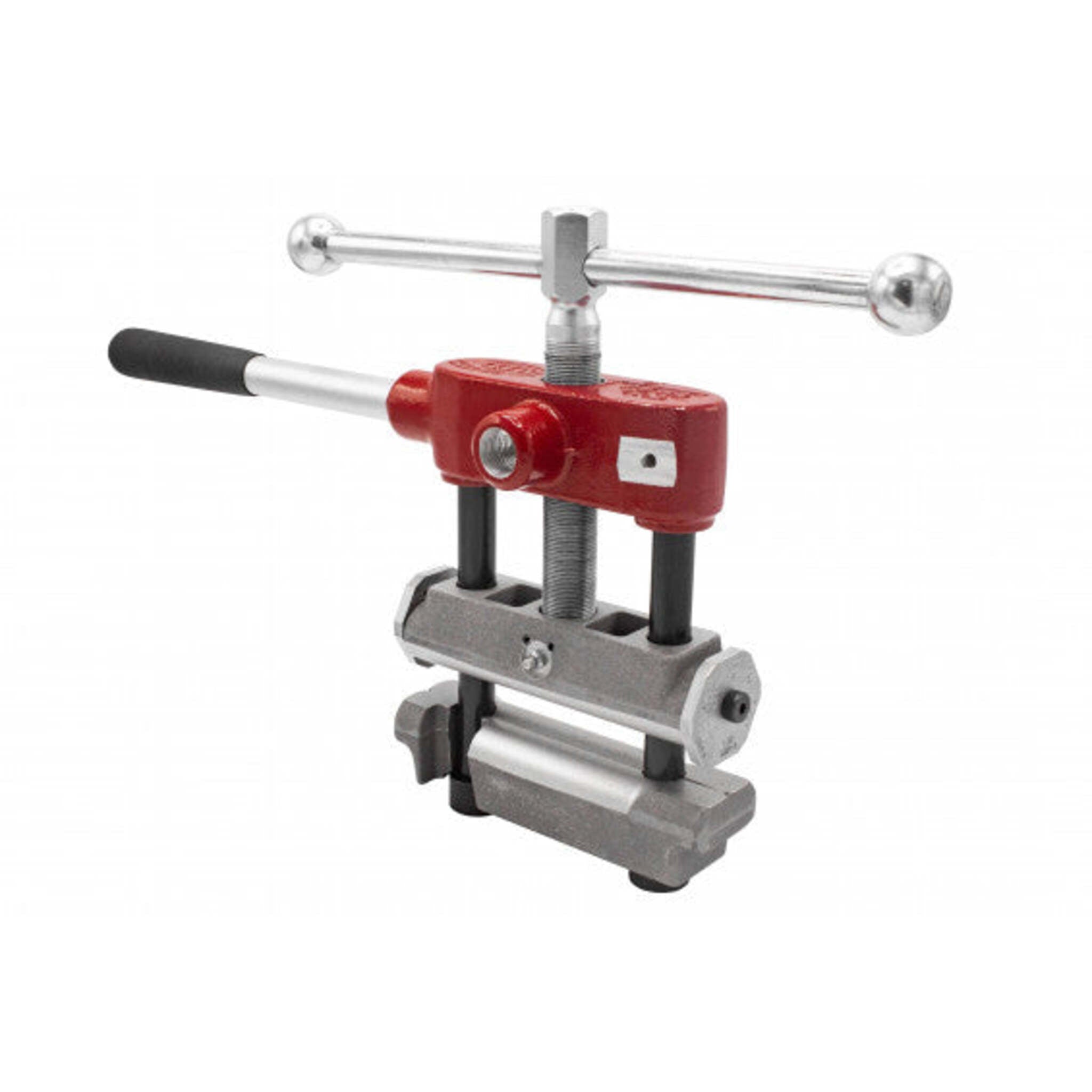

Reed PES2DBM Double Squeeze™ Manual PE Squeeze Tool for Metric Polyethylene Pipes | Heavy-Duty, Dual Squeeze Points, Adj Handle for Secure Pipework

Metric PE Squeeze Off Tool with Double Bar Design for 20-63 mm Pipe

Product Overview

Metric PE pipe has different outside diameters than IPS or CTS pipe, so standard squeeze tools do not fit. The Reed PES2DBM PE squeeze tool is a metric PE squeeze-off tool that handles 20 to 63 mm polyethylene pipe with a double bar design. Two squeeze bars stop flow at dual points, giving gas and water utility operators added confidence during maintenance and repair.

Specifications

Key Features

• Dual Squeeze Points for Flow Control. The double bar PE squeeze design clamps the pipe at two separate locations, providing redundant flow stoppage. If one bar does not fully close the pipe, the second bar catches the remaining flow.

• Metric Pipe Stops (20-63 mm). The metric PE squeeze-off tool includes stops (Part #98124) calibrated for polyethylene pipe from 20 mm to 63 mm actual outside diameter. Positive stops prevent over-clamping, so the pipe wall is not damaged during the squeeze procedure.

• Lightweight Aluminum Construction. At 11.2 lbs (5.1 kg), the Reed PES2DBM PE squeeze tool is easy to carry to the jobsite and position on the pipe. Aluminum bars resist corrosion and reduce operator fatigue during extended field work.

• Swing-Out Bottom Bar. The bottom bar swings open on this squeeze tool for metric pipe, allowing easy pipe loading without disassembly. No loose parts to drop or lose in the trench.

• Fine Thread Power Screw. This manual polyethylene squeeze tool uses a high-strength power screw with fine threads for smooth, low-effort squeezing. A sliding handle and two-position assist handle give the operator flexibility in tight work areas.

IPS vs CTS vs Metric: Choosing the Right PE Squeeze Tool

Three pipe sizing standards exist for polyethylene pipe in North America and internationally. Using the wrong squeeze tool risks pipe damage and incomplete flow stoppage.

IPS (Iron Pipe Size)

IPS-rated PE pipe uses the same outside diameters as steel pipe. It is common in US gas distribution and waterworks applications. The Reed PES2IPSDB handles 1/2 to 2 inch IPS pipe.

CTS (Copper Tube Size)

CTS-rated PE pipe matches copper tube outside diameters. It is typical for residential gas and water service lines in the US. The Reed PES2CTSDB handles 1/2 to 2 inch CTS pipe.

Metric

Metric PE pipe is sized by actual outside diameter in millimeters. It is standard in Canada, Europe, and most international markets. The Reed PES2DBM PE squeeze tool handles 20 to 63 mm metric pipe.

How to Identify Your Pipe Type

Check the markings printed on the pipe surface. Manufacturers stamp the nominal size, SDR rating, and sizing standard directly on the pipe. If the markings read millimeters (e.g., "63 mm SDR 11"), you need a squeeze tool for metric pipe like the PES2DBM. If they read inches with an "IPS" or "CTS" designation, select the corresponding model.

Each Reed Double Squeeze PE tool ships with size-specific stops matched to its pipe standard. Cleanflow carries the full lineup, so you can buy PE squeeze tool online for IPS, CTS, or metric pipe. The IPS vs CTS vs metric PE squeeze tool selection depends entirely on the pipe already in the ground. A double squeeze vs single bar PE tool comparison is separate: the double bar PE squeeze approach provides two squeeze points for higher flow control confidence, while single bar tools like the Reed PES2 PE Squeeze Off Tool squeeze at one point only.

Applications

• Gas utility crews stopping flow in metric PE distribution mains and service lines for tap insertions, valve replacements, or leak repairs

• Water utility maintenance teams squeezing off metric PE pipe during connection work or hydrant installations

• Pipeline contractors using a metric PE squeeze-off tool for new construction tie-ins on metric polyethylene systems

• Field crews who need a metric PE squeeze tool for gas and water line maintenance, including valve insertions and pipe repairs

• Municipal teams choosing a manual polyethylene squeeze tool for scheduled PE pipe inspections where no hydraulic equipment is available

Buy the Reed PES2DBM PE Squeeze Tool Online from Cleanflow

Cleanflow Utility Supply Company is an authorized Reed supplier. Utility and pipeline crews buy PE squeeze tool online from Cleanflow for fast delivery across Canada and the USA. This metric PE squeeze-off tool is part of the Reed Double Squeeze PE line, which provides two squeeze points for confident flow control on polyethylene pipe. The PES2DBM is a manual polyethylene squeeze tool backed by Reed's 5-year warranty. Free shipping on orders over $199. Returns accepted within 30 days. Email info@cleanflow.ca for returns or exchanges.

Browse more pipe tools from Reed and other brands.

Frequently Asked Questions

What is a double squeeze PE tool?

A double squeeze PE tool uses two parallel bars to clamp a polyethylene pipe at two separate points, stopping flow more completely than a single bar tool. The PES2DBM is Reed's double squeeze model for 20-63 mm metric PE pipe.

How does a PE squeeze off tool work?

The operator places the tool around the PE pipe, aligns the stops to the correct pipe size, and turns the power screw to compress the pipe walls together. This pinches the pipe shut and stops the flow of gas or water inside the line.

What size metric PE pipe does the PES2DBM handle?

The Reed PES2DBM PE squeeze tool handles metric PE pipe from 20 mm to 63 mm actual outside diameter. It ships with metric stops (Part #98124). For larger metric pipe up to 110 mm, use the Reed PES4DBM.

What is the difference between IPS, CTS, and metric PE squeeze tools?

IPS tools fit iron pipe size PE pipe, CTS tools fit copper tube size PE pipe, and metric tools fit PE pipe sized in millimeters. The PES2DBM handles metric pipe. Match the squeeze tool to the sizing standard stamped on the pipe wall.

Can I use the Reed PES2DBM on gas pipe?

Yes. The PES2DBM works on PE gas pipe and PE water pipe within its 20-63 mm capacity range. Reed recommends using the PEGR7 Static Grounding Device (#04621) when squeezing gas lines to dissipate static charge and reduce ignition risk.
