Two-Bar Polyethylene Pipe Squeeze Tool for 1/2 to 2 Inch IPS PE Pipe
Product Overview

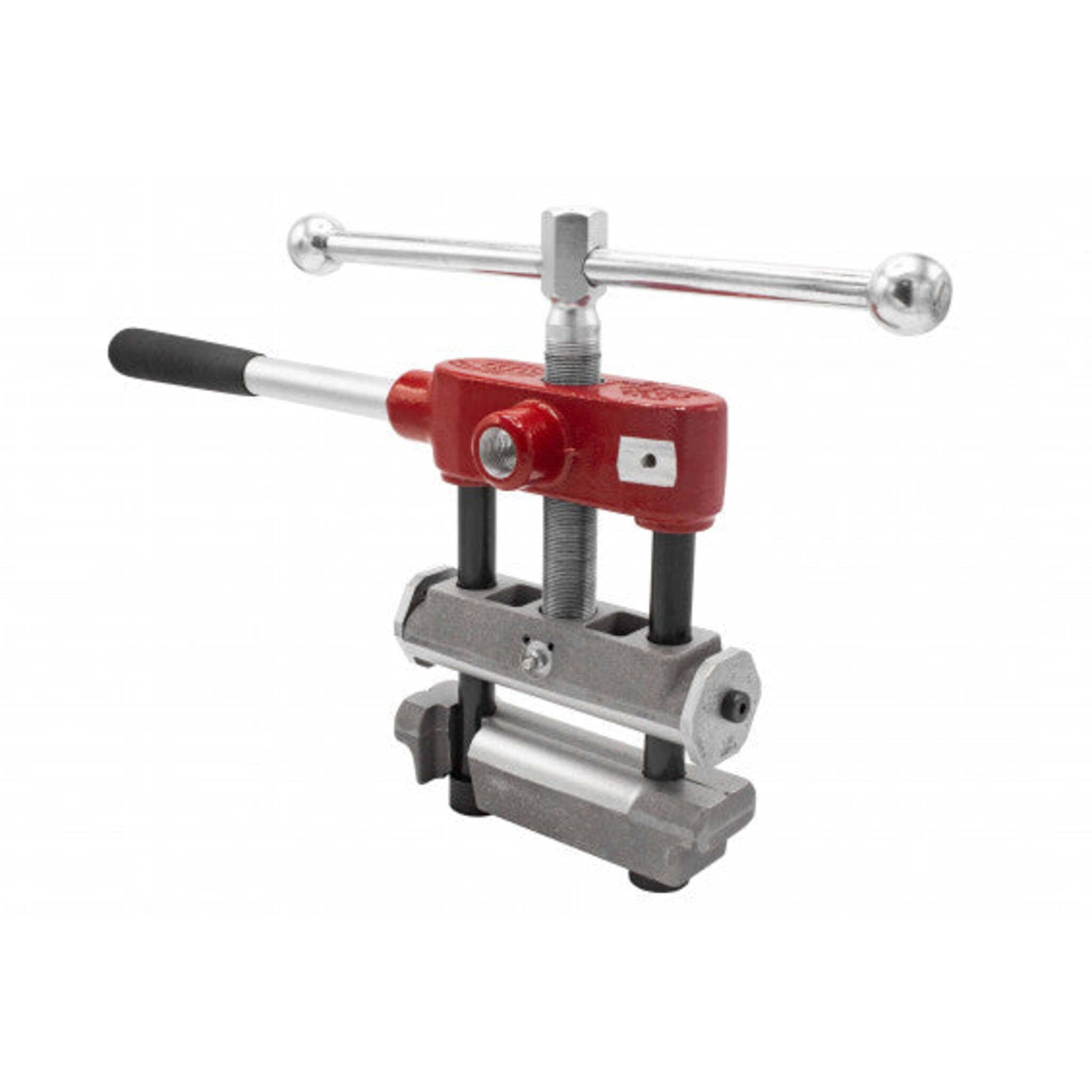

The Reed PES2IPSDB is a PE squeeze tool that uses two bars instead of one to shut off flow in 1/2 to 2-inch IPS polyethylene pipe. This double squeeze PE tool gives crews a second contact point for situations where a single bar cannot achieve full flow control. The tool weighs 11.2 lbs, operates manually without power tools, and carries a five-year Reed warranty.
Key Features and Benefits
- The Reed PES2IPSDB is a double squeeze PE tool with two independent squeeze bars along the pipe. Each bar contacts the PE pipe wall at a separate point, so this PE squeeze-off tool handles flow control where a single squeeze point falls short.
- A swing-out bottom bar lets crews position the polyethylene pipe squeeze tool around a buried or exposed pipe without disconnecting fittings. The bottom bar pivots open, slides under the pipe, and locks back into the rectangular bar channel for fast setup in excavations and tight utility trenches.
- A high-strength power screw with fine-pitched thread applies controlled force to each squeeze bar. The sliding power screw handle adjusts to fit the available workspace, and a two-position assist handle adds leverage when the PE squeeze tool needs extra force in cold weather or on thicker-wall SDR pipe.
- Positive pipe stops on each bar prevent over-clamping damage to the PE pipe wall. Multiple size and SDR settings on one pair of stops cover the full 1/2 to 2 inch IPS range, so one set of stops works across several standard pipe sizes without needing separate accessories.
- Lightweight aluminum construction keeps the Reed PES2IPSDB at 11.2 lbs (5.1 kg) for one-person carries in and out of excavations. Anodized or painted aluminum bars resist corrosion in wet conditions, and two grease fittings at friction points keep the power screw operating smoothly between jobs.
Specifications
The table below lists verified specifications for the Reed PE squeeze tool, sourced from Reed Manufacturing documentation. The PES2IPSDB also functions as a PE pipe shut-off tool for both planned maintenance shutdowns and emergency flow control on PE service lines.
| Specification | Detail |
|---|---|
| Catalog Number | PES2IPSDB |
| Item Code | 04332 |
| Barcode | 757033043329 |
| Description | Double Squeeze PE Squeeze Tools, Manual |
| Pipe Capacity | 1/2 to 2 in nominal IPS (0.84 to 2.38 in actual O.D.) |
| Pipe Type | PE (polyethylene) only |
| Operation | Manual only (no power tools or cheater bars) |
| Tool Weight | 11.2 lbs (5.1 kg) |
| Dimensions (without helper handle) | 11.5 x 3 x 13.6 in (29.2 x 7.6 x 34.5 cm) |
| Bar Configuration | Double bar (two squeeze points) |
| Feed Screw Thread | Fine-pitched for controlled, low-effort squeeze |
| Squeeze Rate (max) | 2 in/min (51 mm/min) |
| Release Rate (max) | 1/2 in/min (13 mm/min) |
| Pipe/SDR Stops Accessory | Item #98079 (sold separately) |
| Cold Weather Note | Below 50°F (10°C), reduce squeeze/release rates and allow extra pipe relaxation time |
| Minimum Distance from Fittings | 12 in (305 mm) or 3x pipe diameter, whichever is greater |
| Standard Reference | ASTM F1041-02 |
| Recommended Accessory | Reed PEGR7 Static Grounding Device (Item #04621) |
| Construction | Aluminum (anodized or painted) |
| Warranty | 5 years (manual tools) |
| Manufacturer | Reed Manufacturing, Erie, PA (est. 1896) |
Applications
The Reed PES2IPSDB PE pipe shut-off tool is used wherever polyethylene service lines or mains need temporary flow control during maintenance, repair, or new connections. Common applications include:
- Water main repairs and emergency shutdowns on PE distribution lines
- Gas service line maintenance and tie-ins on polyethylene gas piping
- New service connections where the main cannot be shut down at the valve
- Planned PE pipe maintenance where a single-bar tool cannot achieve full flow control
- Double squeeze-off procedures (two tools in series) on higher-pressure PE lines per ASTM F1041
For water and gas line maintenance, the Reed PE squeeze tool covers the most common residential and small commercial service sizes in the 1/2 to 2 inch IPS range. Crews selecting a PE squeeze tool for 1/2 to 2-inch pipe will find the PES2IPSDB covers 0.84 to 2.38 inch actual O.D., matching all standard IPS diameters.
Utility crews also use this PE squeeze tool for water line repair during emergency shutdowns and planned service connections. For jobs where a single squeeze point provides adequate flow control, the Reed PES2 covers the same pipe range in a lighter, single-bar configuration. Crews working on larger mains (2 to 4 inch) can move up to the Reed PES4.
Buy Reed PES2IPSDB PE Squeeze Tool Online from Cleanflow
Cleanflow Utility Supply Company is the authorized Reed dealer for pipe tools and shut-off tools across Canada and the USA. The Reed PES2IPSDB double squeeze PE tool is in stock and ships with free shipping on orders over $199.
Cleanflow stocks the full Reed PE squeeze tool lineup, from single-bar squeeze-off tools to double squeeze models and pipe/SDR stop accessories. Browse all shut off tools for your PE pipe needs, or see the complete Reed collection and pipe tools for threaders, cutters, wrenches, and waterworks equipment.
Cleanflow also carries waterworks products including poly pipe insert fittings, pipe repair clamps, and valves for PE distribution systems. For questions about this product, compatibility, or to set up a net-terms account, email info@cleanflow.ca.
Frequently Asked Questions
What is a PE squeeze off tool?
A PE squeeze off tool temporarily stops flow in polyethylene pipe by mechanically squeezing the pipe wall shut between bars. The pipe rebounds to its original shape after the tool releases. These tools are standard equipment for water and gas utility crews during repairs and connections.
What is the difference between a double squeeze and single squeeze PE tool?
A double squeeze PE tool uses two bars at two separate contact points on the pipe. A single squeeze tool uses one bar. When comparing a double squeeze vs single squeeze PE tool, the double bar provides backup flow control for jobs where one contact point cannot fully stop flow.
How to use a PE squeeze tool?
Position the tool at least 12 inches from any fitting or fusion joint. Squeeze at no more than 2 inches per minute. Release at no more than 1/2 inch per minute. Below 50°F, slow both rates and allow extra pipe relaxation time before removing the PE squeeze tool.
Does the Reed PES2IPSDB work on CTS or metric pipe?
No. The Reed PES2IPSDB is sized for IPS pipe only (1/2 to 2 inch nominal). For CTS pipe, Reed makes the PES2CTSDB (Item #04333). For metric pipe (20 to 63 mm), Reed makes the PES2DBM (Item #04334). All three models share the same double bar design.
What pipe stops does the Reed PES2IPSDB use?
The PES2IPSDB uses pipe/SDR stops sold as Reed Item #98079. Each pair of stops has multiple size and SDR settings to cover the full 1/2 to 2 inch IPS range. The stops prevent over-clamping by limiting how far the bars can close on each pipe size.
