Description

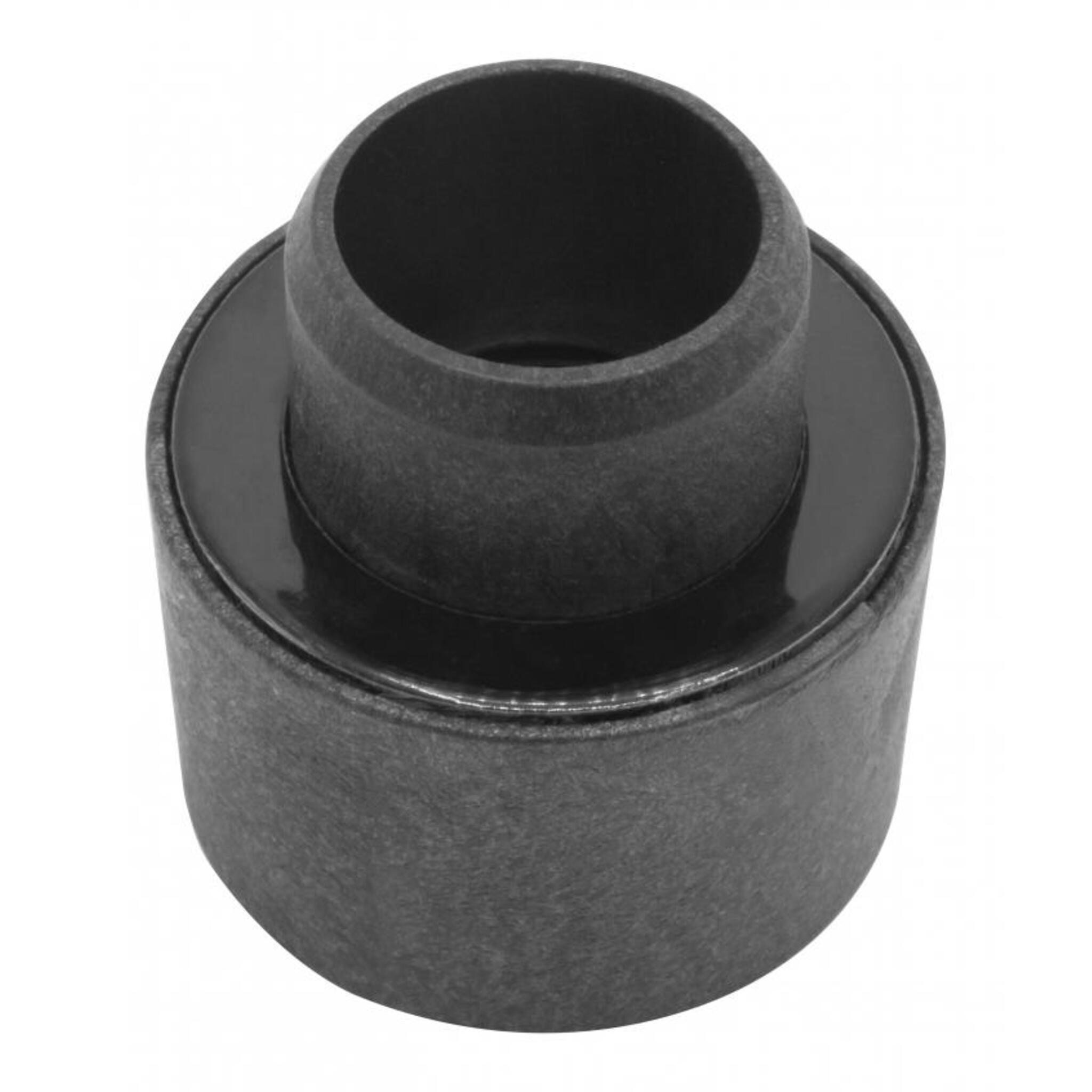

Pump Stick Hose Coupling with Magnetic Connection
Adding a second hose to your Pump Stick requires a Reed CP15COUP hose coupling between each pair of hose sections. This pump stick magnetic hose coupling uses embedded magnets to snap two hose ends together. No tools, no threading, no clamps. Slide the coupling onto one hose, bring the second close, and the magnets pull the connection tight. One coupling per joint.
How to Connect Two Pump Stick Hoses

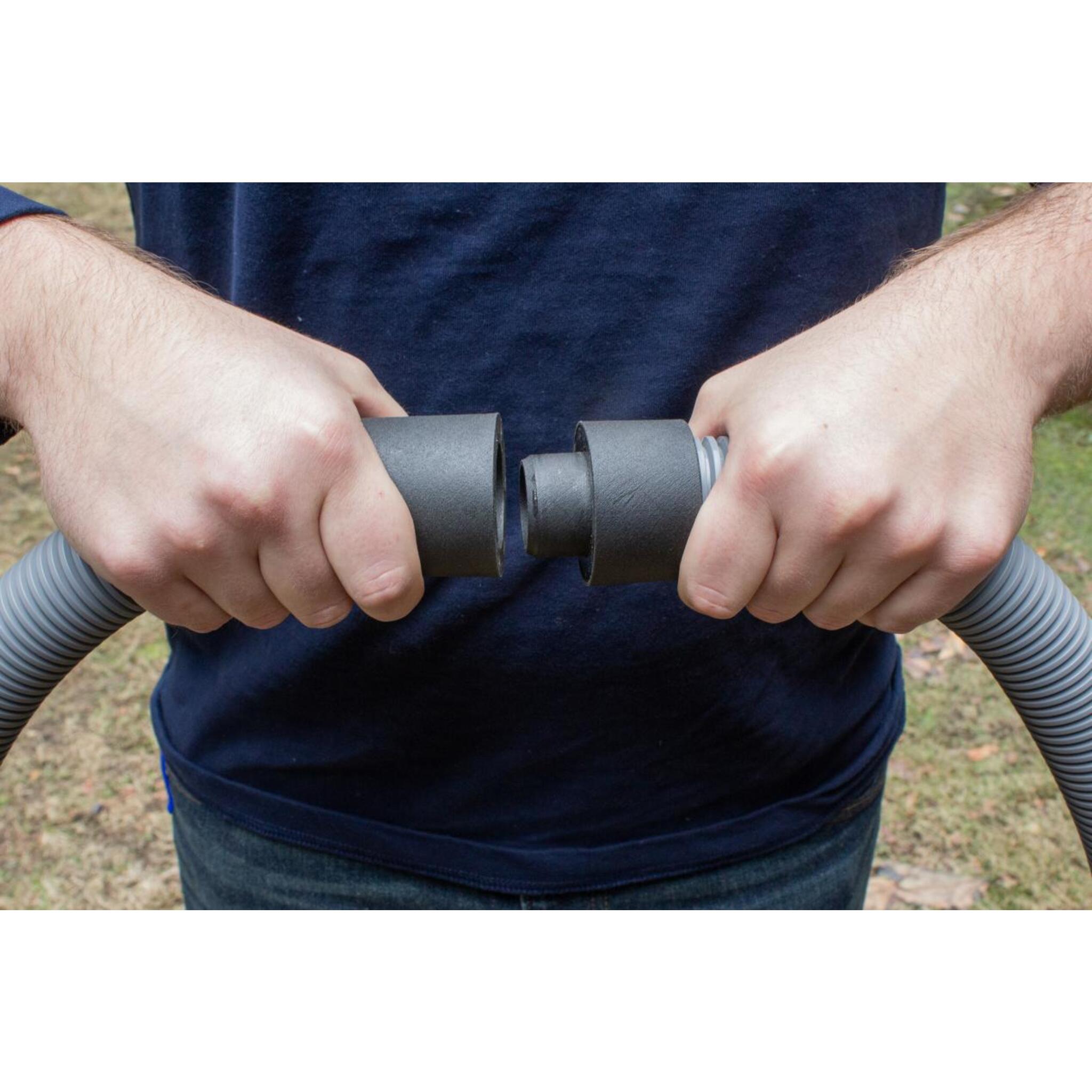

How to connect two Pump Stick hoses: place the Reed CP15COUP hose coupling at the end of one hose section. The magnetic end of the second hose pulls toward the coupling and locks into place. The magnets hold the joint firm during pumping. To disconnect, pull the hoses apart by hand.
For pump stick hose extension beyond two sections, add one coupling between each pair. Three hose sections need two couplings. Four sections need three.
Key Features
- Magnetic Snap-Fit. The Pump Stick hose coupling holds two hose ends together with embedded magnets. No threading or tools required. Connect and disconnect in seconds.
- Lightweight and Compact. At 0.14 lbs, this Pump Stick hose connector adds almost no weight to your setup. Fits in a pocket or tool bag between jobs.
- Works with All Pump Stick Hoses. The hose coupling with magnetic connection fits the CPHOSE2FT (2'), CPHOSE4FT (4'), and CPHOSE7FT (7'). Mix and match lengths for the reach you need.
Reed CP15COUP Specifications
| Spec | Value |
|---|---|
| Catalog No. | CP15COUP |
| Item Code | 98147 |
| Description | Hose Coupling with Magnetic Connection |
| Weight | 0.14 lbs (0.06 kg) |
| Compatible Hoses | CPHOSE2FT (2'), CPHOSE4FT (4'), CPHOSE7FT (7') |
| Compatible Pump Models | All Reed Pump Stick® models (CP15-38, CP15-38B, CP15-38E, CP15-38DB2) |
How to Extend Pump Stick Hose Length
How to extend Pump Stick hose length depends on how far you need to pump. The Reed Pump Stick cordless water pump connects to the first hose directly. Each additional hose section needs one CP15COUP coupling in between.
| Setup | Hoses Used | Total Reach | Couplings Needed |
|---|---|---|---|
| Stock | 1 x 2 ft hose | 2 ft | 0 |
| Standard | 1 x 7 ft hose | 7 ft | 0 |
| Extended | 2 x 7 ft hoses | 14 ft | 1 |
| Long run | 3 x 7 ft hoses | 21 ft | 2 |
| Mixed | 1 x 4 ft + 1 x 7 ft | 11 ft | 1 |
The 2-foot hose (CPHOSE2FT) is a pump stick hose extension for short distances where the full 4-foot or 7-foot length is too long. Pair it with a Pump Stick hose with a magnetic connection and one CP15COUP coupling for a flexible setup.
Reed CP15COUP vs CPGHA: Which Connector Do You Need?
The Pump Stick hose coupling (CP15COUP) joins two Pump Stick hose sections end-to-end. The CPGHA is a garden hose adapter that connects your Pump Stick outlet to a standard 5/8" or 3/4" garden hose. If you need more Pump Stick hose length, the CP15COUP is the right Pump Stick hose connector. If you need to discharge into a garden hose, use the CPGHA.
| Accessory | Item Code | Function |
|---|---|---|
| CP15COUP | 98147 | Joins two Pump Stick hoses together (hose-to-hose) |
| CPGHA | 98256 | Connects Pump Stick to a 5/8" or 3/4" garden hose |
Pump Stick Hose Compatibility
Pump Stick hose compatibility is straightforward. Every Pump Stick hose uses the same magnetic connector system, so the CP15COUP works with any combination of 2-foot, 4-foot, and 7-foot sections. Among Pump Stick hose accessories, the coupling is the most frequently needed add-on because every extra hose section requires one.
Buy Reed CP15COUP Hose Coupling Online from Cleanflow
Cleanflow Utility Supply Company is an authorized distributor of Reed. This Pump Stick hose coupling ships ready to use. Browse other Pump Stick hose accessories and Reed tools from Cleanflow. Ships across Canada and the USA. Free shipping on orders over $199. Returns accepted within 30 days. Email info@cleanflow.ca for returns or exchanges.
Frequently Asked Questions
What hose coupling do I need for Pump Stick?
The Reed CP15COUP hose coupling. It is the only coupling that fits Pump Stick hoses. You need one CP15COUP between each pair of hose sections you want to join. All Pump Stick hoses use the same magnetic connector.
Can I connect Pump Stick hoses without the CP15COUP?
No. Pump Stick hoses need the CP15COUP coupling to join end-to-end. The magnetic connectors at each hose end do not mate directly with another hose. The coupling bridges the two ends and holds the magnetic seal.
Does the CP15COUP work with all Pump Stick hoses?
Yes. The pump stick magnetic hose coupling fits every Pump Stick hose: the 2-foot CPHOSE2FT, the 4-foot CPHOSE4FT, and the 7-foot CPHOSE7FT. All three use the same magnetic connector system, so one CP15COUP works across any hose combination.
What is the difference between the CP15COUP and CPGHA?
The Pump Stick hose coupling (CP15COUP) joins two Pump Stick hoses together. The garden hose adapter (CPGHA) connects your Pump Stick outlet to a standard 5/8" or 3/4" garden hose. Pick the CP15COUP for more reach with Pump Stick hoses, the CPGHA for garden hose discharge.
How many couplings do I need to extend my Pump Stick hose?
One coupling per hose joint. If you connect two hoses, you need one Pump Stick hose connector. Three hoses need two connectors. The coupling weighs 0.14 lbs and adds minimal length, so total reach stays close to the combined hose lengths.
