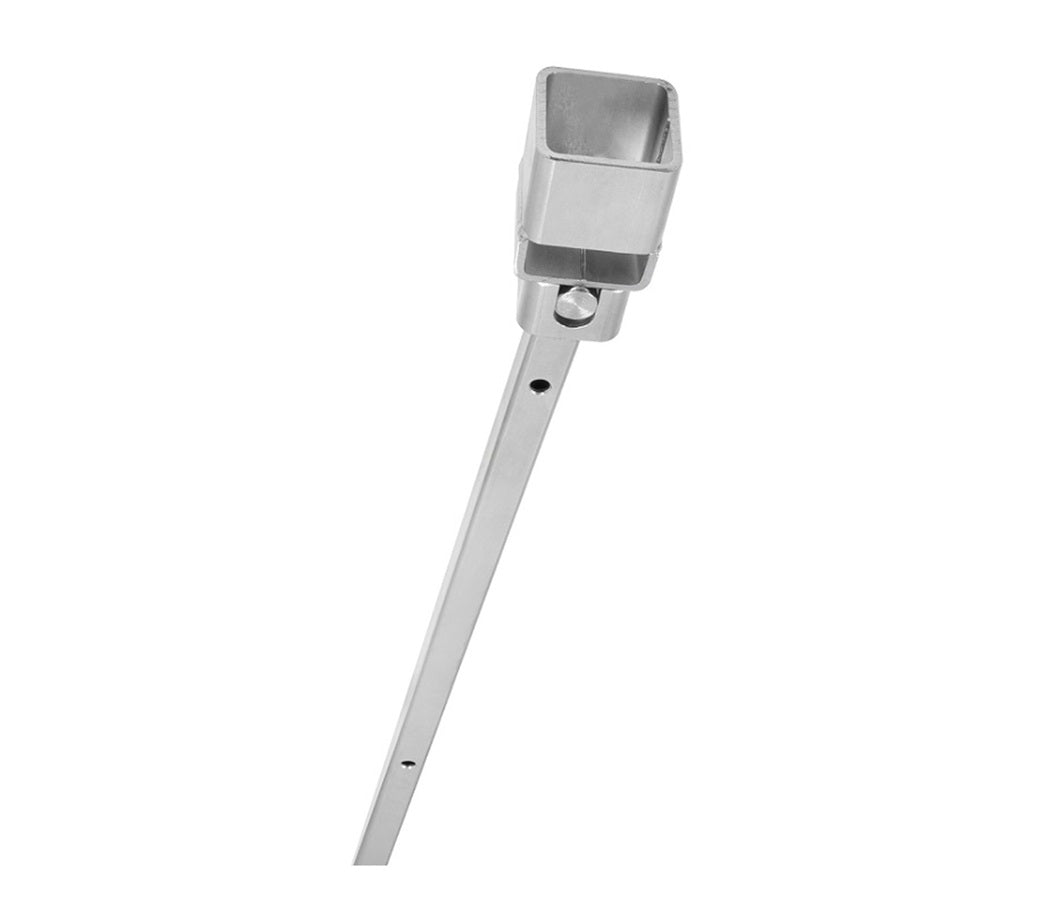

Pivoting Valve Key Lower Shaft for Misaligned 2" Operating Nuts
Product Overview
When a buried water main valve settles out of plumb, a fixed-head key can't seat on the operating nut. The Reed VKPLS valve key lower shaft solves this with a pivoting valve key head that adjusts to engage a misaligned operating nut. This 43.5-inch valve key lower shaft attaches to any Reed handle, adding a second head option without buying a complete tool.
Key Features of Reed VKPLS Valve Key Lower Shaft
- Pivoting Head for Off-Angle Valves. The pivoting valve key head adjusts to fit a misaligned operating nut where a fixed 2-inch valve key head would slip. The pivot keeps the socket fully seated on the nut, reducing the chance of slippage.
- 200 ft-lbs Maximum Torque. Heavy-gauge mechanical steel tubing supports up to 200 foot-pounds of torque. Strong welds at critical points hold up under repeated use on demanding waterworks valve key jobs.
- Attaches to Any Reed Handle. The Reed VKPLS valve key connects to any Reed valve key handle by pin, giving crews a pivoting head option alongside their existing fixed-head lower shaft.
- Power Drive Compatible. The VKPLS lower shaft is also a valve key compatible with VOKUCLUTCH and the CPDWW cordless power drive for controlled, powered turning. Add the CPDWWLVHN expandable leverage handle for improved balance during powered operation.
- Lightweight at 5.8 lbs. At 5.8 lbs, the VKPLS is slightly lighter than the fixed-head VK2LS (6.0 lbs). Among Reed valve key accessories, it is one of the lightest lower shaft options.
How to Choose: Reed VKPLS vs VK2LS
Reed offers two valve key lower shaft options with the same 200 ft-lbs torque rating. The difference is the head.
The Reed VKPLS valve key (92344) has a pivoting valve key head that seats on a misaligned operating nut. Choose this when buried valves have shifted, and a straight approach won't work.
The VK2LS (92339) has a fixed 2-inch valve key head welded to the base. It weighs slightly more at 6.0 lbs and works well when the operating nut is accessible and plumb.
When choosing Reed VKPLS vs VK2LS, the pivoting head is the deciding factor. Older infrastructure where valves have settled favors the VKPLS. Newer systems with plumb valves suit the VK2LS.
| Feature | VKPLS (92344) | VK2LS (92339) |
|---|---|---|
| Key Head | Pivoting, fits misaligned nuts | Fixed (welded) |
| Operating Nut Size | 2 inch | 2 inch |
| Closed Length | 43.5 in (1105 mm) | 43.25 in (1099 mm) |
| Weight | 5.8 lbs (2.6 kg) | 6.0 lbs (2.7 kg) |
| Max Torque | 200 ft-lbs | 200 ft-lbs |
| Compatibility | Any Reed handle; VOKUCLUTCH | Reed Utility Clutch; add a Reed handle |
If you need a complete pivoting valve key with adjustable length and T-handle included, see the Reed VKP Pivoting Valve Key.
Specifications
| Specification | Value |
|---|---|
| Catalog No. | VKPLS |
| Item Code | 92344 |
| Description | Lower Shaft with Pivot Key Head |
| Operating Nut Size | 2 inch |
| Closed Length | 43.5 in (1105 mm) |
| Weight | 5.8 lbs (2.6 kg) |
| Maximum Torque | 200 ft-lbs |
| Shaft Material | Heavy gauge, mechanical steel tubing |
| Key Head Type | Pivoting |
| Handle Compatibility | Any Reed valve key handle; VOKUCLUTCH utility clutch; CPDWW cordless power drive (via VOKUCLUTCH) |
Applications
Municipal water utility crews rely on this waterworks valve key for routine valve exercising and emergency shutoffs, particularly in older service areas where underground valves have shifted. Waterworks contractors use the VKPLS when servicing buried gate valves that require a 2-inch valve key for the operating nut. The VKPLS is also useful as a spare lower shaft on service trucks, ensuring crews always have a pivoting head option available.
Buy Valve Key Lower Shaft Online from Cleanflow
The Reed VKPLS valve key lower shaft is available from Cleanflow Utility Supply Company, an authorized Reed supplier. Cleanflow ships across Canada and the USA with free shipping on orders over $199. For returns and exchanges, email info@cleanflow.ca.
Browse more Reed valve key accessories in the curb and valve keys collection.
Frequently Asked Questions
What is a pivoting valve key?
A pivoting valve key has a head that adjusts the angle to engage operating nuts that are no longer plumb. When buried water main valves shift over time, the pivoting head seats where a fixed head would slip off.
What is the best valve key for misaligned valves?
The Reed VKPLS is the best valve key for misaligned valves in the Reed lineup. Its pivoting head adjusts to seat on off-angle 2-inch operating nuts, while the fixed-head VK2LS works better on valves that are still plumb.
How do you use a valve key lower shaft?
Attach the lower shaft to any Reed valve key handle by inserting it into the upper shaft and securing it with the pin. Lower the assembled key into the valve box, seat the head on the operating nut, and turn the handle.
Does the Reed VKPLS work with the VOKUCLUTCH?
Yes, the VKPLS is a valve key compatible with VOKUCLUTCH and the CPDWW cordless power drive. Attach the VOKUCLUTCH utility clutch to the upper shaft, connect the CPDWW, and the pivoting lower shaft operates with powered torque control.
Can the Reed VKPLS valve key replace a VK2LS?
The VKPLS and VK2LS are interchangeable on any Reed valve key handle. They share the same 200 ft-lbs torque rating. The VKPLS adds a pivoting head for misaligned nuts, while the VK2LS has a fixed welded head. Both are available as Reed valve key accessories.
