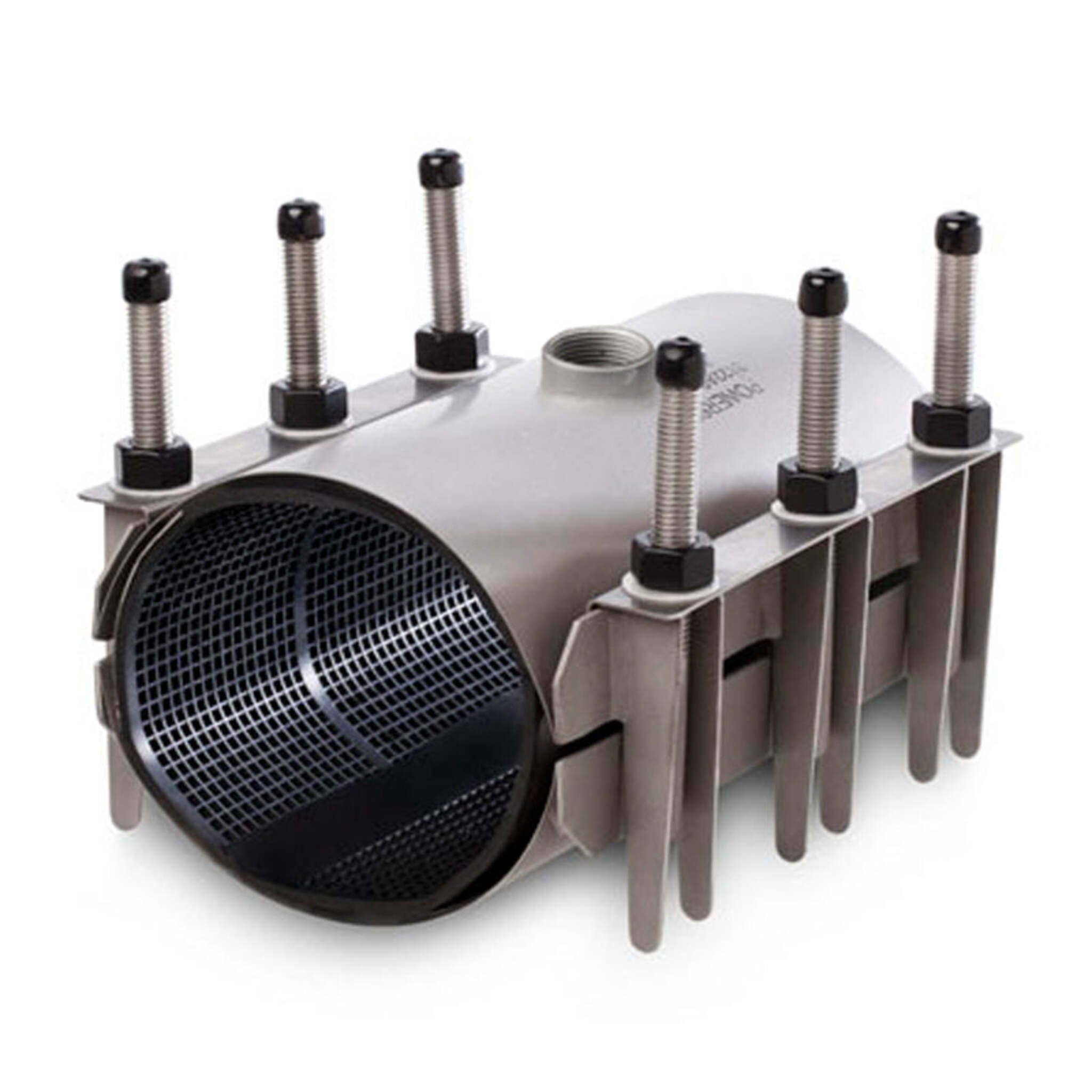

Robar Double Section 5626 Series All Stainless Tapped Repair Clamps | 12" Length | IP Thread | NBR Gasket | 150 PSI | NSF/ANSI 61, AWWA C230

Robar Double Section 5626 Series All Stainless Tapped Repair Clamps | 12" Length | IP Threaded Tap

Economical and Reliable Solution for Water Main Repairs

Robar Double Section 5626 All Stainless IPS Tapped Pipe Repair Clamps provide a simple and economical method for repairing or connecting service lines to water mains. The interior of the clamp is fully lined with a nitrile (NBR) rubber gasket, ensuring a secure and leak-proof seal. The IPS standard pipe thread on the clamp allows for the connection of corporation stops or any other types of pipes or fittings with IPS thread.

Key Features: High-Quality Construction and Versatility

• Premium Materials:
  • Shell: Made from T304 stainless steel, fully passivated for superior durability and corrosion resistance.
  • Sidebar: T304 stainless steel, fully passivated.
  • Armor: T304 stainless steel, fully passivated.
  • Gasket: Nitrile (NBR) rubber for secure sealing.
  • Fasteners: 5/8” NC T304 stainless steel with nuts coated in an anti-galling compound to prevent seizing.
• Torque and Pressure Rating: Fasteners torque rated at 70-80 ft. lbs., with a working pressure rating of up to 150 PSI for all sizes.
• Size Availability: Suitable for pipe sizes ranging from 4" to 12".
• Certifications: Tested and certified by WQA to NSF/ANSI standard 61. UL listed, meeting NSF-61 and AWWA C230 standards.

Installation Tips:

• Suitable for HDPE Water Mains: Well suited for use on HDPE water mains.
• Preparation: Clean the pipe over the entire circumference where the clamp is to be installed. Ensure there are no pebbles or dirt on the pipe or clamp gasket.
• Lubrication: Lubricate the entire clamp gasket with an NSF-approved pipe lubricant.
• Tightening: Tighten the nuts evenly and incrementally, starting from the center and moving outward. Torque each nut to 80 ft. lbs.
• Considerations: The pressure rating of the repair clamp is influenced by the type of repair, extent of damage, condition of the pipe, environmental conditions, and installation workmanship.

Reliable and Efficient Service Solution

Upgrade your infrastructure with Robar Double Section 5626 Series All Stainless Tapped Repair Clamps. Offering durable performance and secure sealing for water main repairs or service line connections, these clamps are made from high-quality materials and designed for ease of use. Order yours today and ensure your water mains are securely and efficiently repaired.
