Description

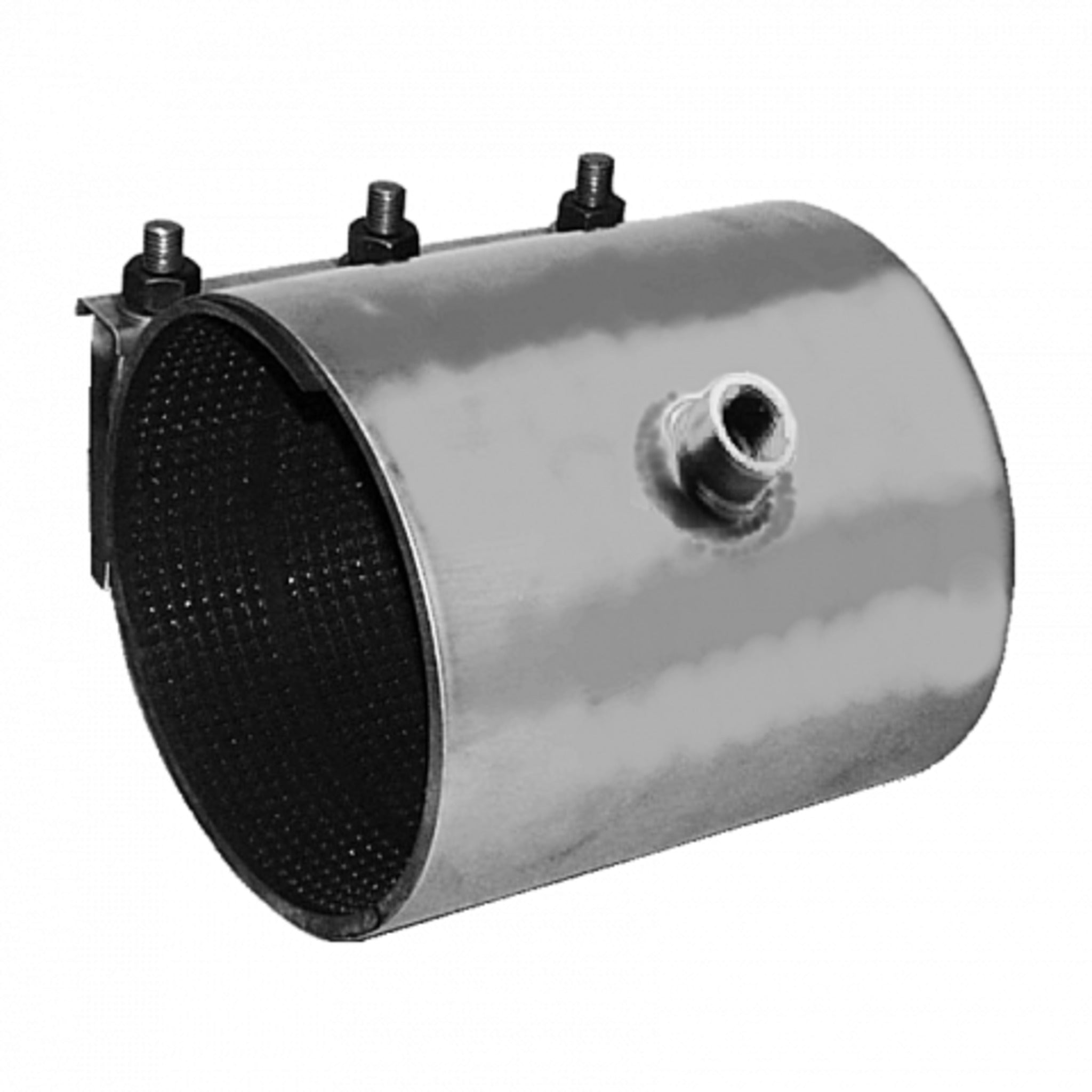

Robar Single Section 5616 Series All Stainless Tapped Repair Clamps | 12" Length | CC Threaded Tap
Economical and Reliable Service Line Repair Solution
The Robar Single Section 5616 Series All Stainless Tapped Pipe Repair Clamps provide a simple and economical method for repairing or connecting service lines to water mains. The interior of the clamp is fully lined with a nitrile (NBR) rubber gasket, ensuring a secure and leak-proof seal. Designed with the AWWA (CC) standard thread, these clamps offer compatibility with all main stops featuring CC (corporation cock) threads.
Key Features: High-Quality Construction and Versatility
-
Premium Materials:
- Shell: Made from T304 stainless steel, fully passivated for superior durability and corrosion resistance.
- Sidebar: T304 stainless steel, fully passivated.
- Armor: T304 stainless steel, fully passivated.
- Gasket: Nitrile (NBR) rubber for secure sealing.
- Fasteners: 5/8” NC T304 stainless steel with nuts coated in an anti-galling compound to prevent seizing.
- Torque and Pressure Rating: Fasteners torque rated at 70-80 ft. lbs., with a working pressure rating of up to 150 PSI for all sizes.
- Size Availability: Suitable for pipe sizes ranging from 3" to 12".
- Certifications: Tested and certified by WQA to NSF/ANSI standard 61. UL listed, meeting NSF-61 and AWWA C230 standards.
Installation:
- Suitable for Most Water Mains: Robar repair clamps can be used on IPS (Iron Pipe Size) HDPE, Cast Iron, Ductile Iron and PVC water mains. Please verify that your pipe has an IPS outside diameter as per the chart below before ordering. Non-standard clamps are available on special order for pipe ODs not shown in the chart.
- Easy Installation: Clean the pipe over the entire circumference where the clamp is to be installed. To quickly clean the underside of a buried pipe use a Belted Pipe Descaler to remove scale and pebbles. Be sure that there is no foreign debris (pebbles or dirt) on the clamp gasket or pipe. Lubricate the entire clamp gasket with an NSF certified pipe lube.
- Fasteners: 5/8” NC T304 threaded stainless steel rods with 15/16" nuts coated in an anti-galling compound to prevent seizing. A Ratcheting Wrench or deep socket will help speed the installation.
- Torque: Complete the installation using a Torque Wrench to evenly tighten the nuts to 70-80 ft. lbs., ensuring a tight and secure fit.
- PSI Rating: Suitable for working pressures up to 150 PSI, making it ideal for a variety of water main repair situations.
Reliable and Efficient Service Solution
Upgrade your infrastructure with Robar Single Section 5616 Series All Stainless Tapped Repair Clamps. Offering durable performance and secure sealing for water main repairs or service line connections, these clamps are made from high-quality materials and designed for ease of use. Order yours today and ensure your water mains are securely and efficiently repaired.
Tapped Repair Clamp Size | Fits Water Mains with OD |
3" | 3.45" to 3.85" |
4" | 4.45" to 4.85" |
6" | 6.40" to 6.80" |
8" |
8.40" to 8.80" |
10" |
10.50" to 10.90" |
12" |
12.55" x 12.95" |
