Robar 5616 Series 12-Inch All Stainless Tapped Repair Clamps, IP Thread, NBR Gasket, for Water Main Connections, 150 PSI Rated, NSF 61 Certified

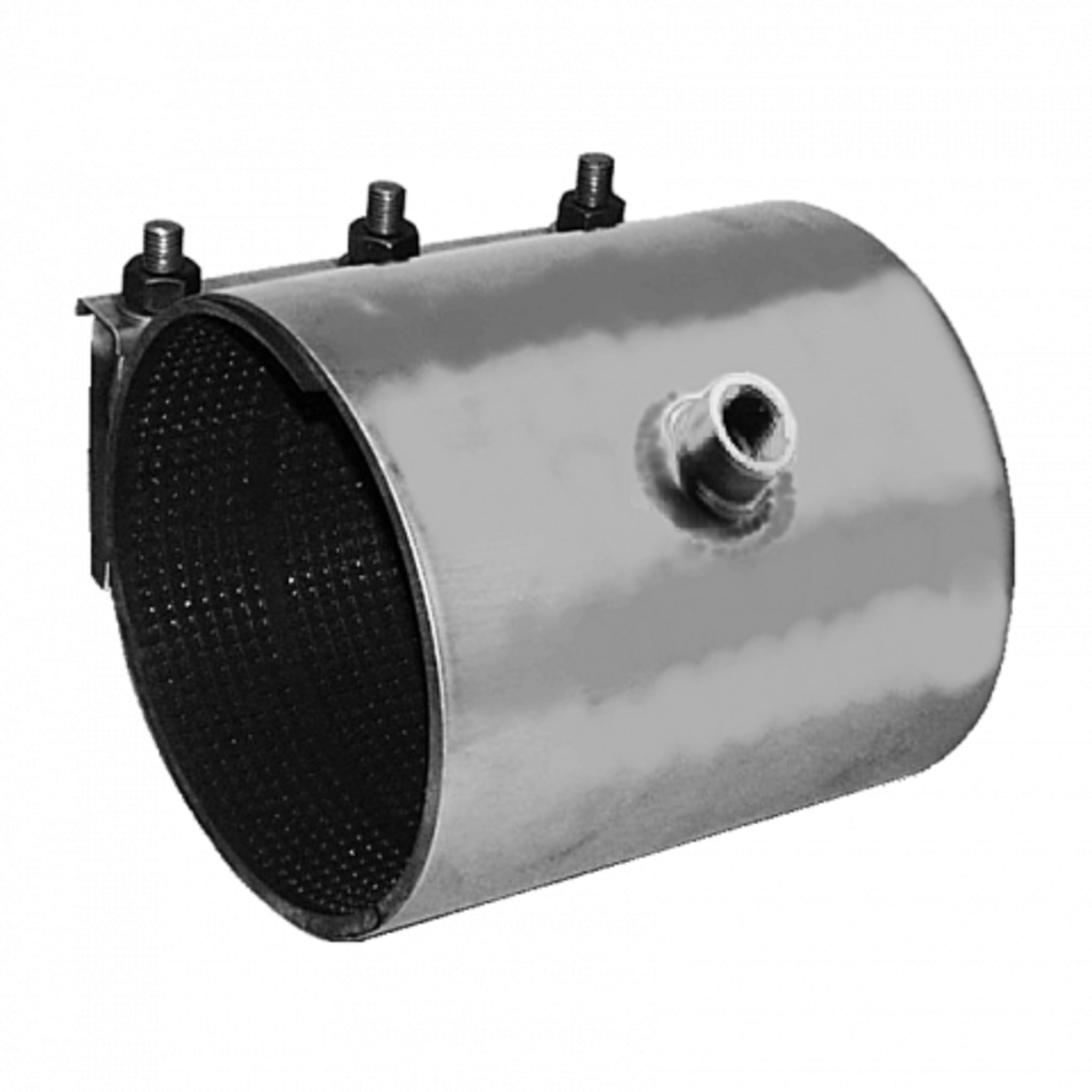

Robar Single Section 5616 Series All Stainless Tapped Repair Clamps | 12" Length | IP Threaded Tap

Economical and Reliable Service Line Repair Solution

Robar Single Section 5616 Series All Stainless IPS Tapped Pipe Repair Clamps provide a simple and economical method for repairing or connecting service lines to water mains. The interior of the clamp is fully lined with a nitrile (NBR) rubber gasket, ensuring a secure and leak-proof seal. The IPS standard pipe thread on the clamp allows for the connection of corporation stops or any other types of pipes or fittings with IPS thread.

Key Features: High-Quality Construction and Versatility

• Premium Materials:
  • Shell: Made from T304 stainless steel, fully passivated for superior durability and corrosion resistance.
  • Sidebar: T304 stainless steel, fully passivated.
  • Armor: T304 stainless steel, fully passivated.
  • Gasket: Nitrile (NBR) rubber for secure sealing.
  • Fasteners: 5/8” NC T304 stainless steel with nuts coated in an anti-galling compound to prevent seizing.
• Torque and Pressure Rating: Fasteners torque rated at 70-80 ft. lbs., with a working pressure rating of up to 150 PSI for all sizes.
• Size Availability: Suitable for pipe sizes ranging from 3" to 12".
• Certifications: Tested and certified by WQA to NSF/ANSI standard 61. UL listed, meeting NSF-61 and AWWA C230 standards.

Installation:

1. Easy Installation: Clean the pipe over the entire circumference where the clamp is to be installed. To quickly clean the underside of a buried pipe use a Belted Pipe Descaler to remove scale and pebbles. Be sure that there is no foreign debris (pebbles or dirt) on the clamp gasket or pipe. Lubricate the entire clamp gasket with an NSF certified pipe lube.
2. Fasteners: 5/8” NC T304 threaded stainless steel rods with 15/16" nuts coated in an anti-galling compound to prevent seizing. A Ratcheting Wrench or deep socket will help speed the installation.

3. Torque: Tighten the nuts evenly and incrementally, starting from the center and moving outward. Complete the installation using a Torque Wrench to evenly tighten the nuts to 80 ft. lbs., ensuring a tight and secure fit.
4. PSI Rating: Suitable for working pressures up to 150 PSI, making it ideal for a variety of water main repair situations

Reliable and Efficient Service Solution

Upgrade your infrastructure with Robar Single Section 5616 Series All Stainless Tapped Repair Clamps. Offering durable performance and secure sealing for water main repairs or service line connections, these clamps are made from high-quality materials and designed for ease of use. Order yours today and ensure your water mains are securely and efficiently repaired.
