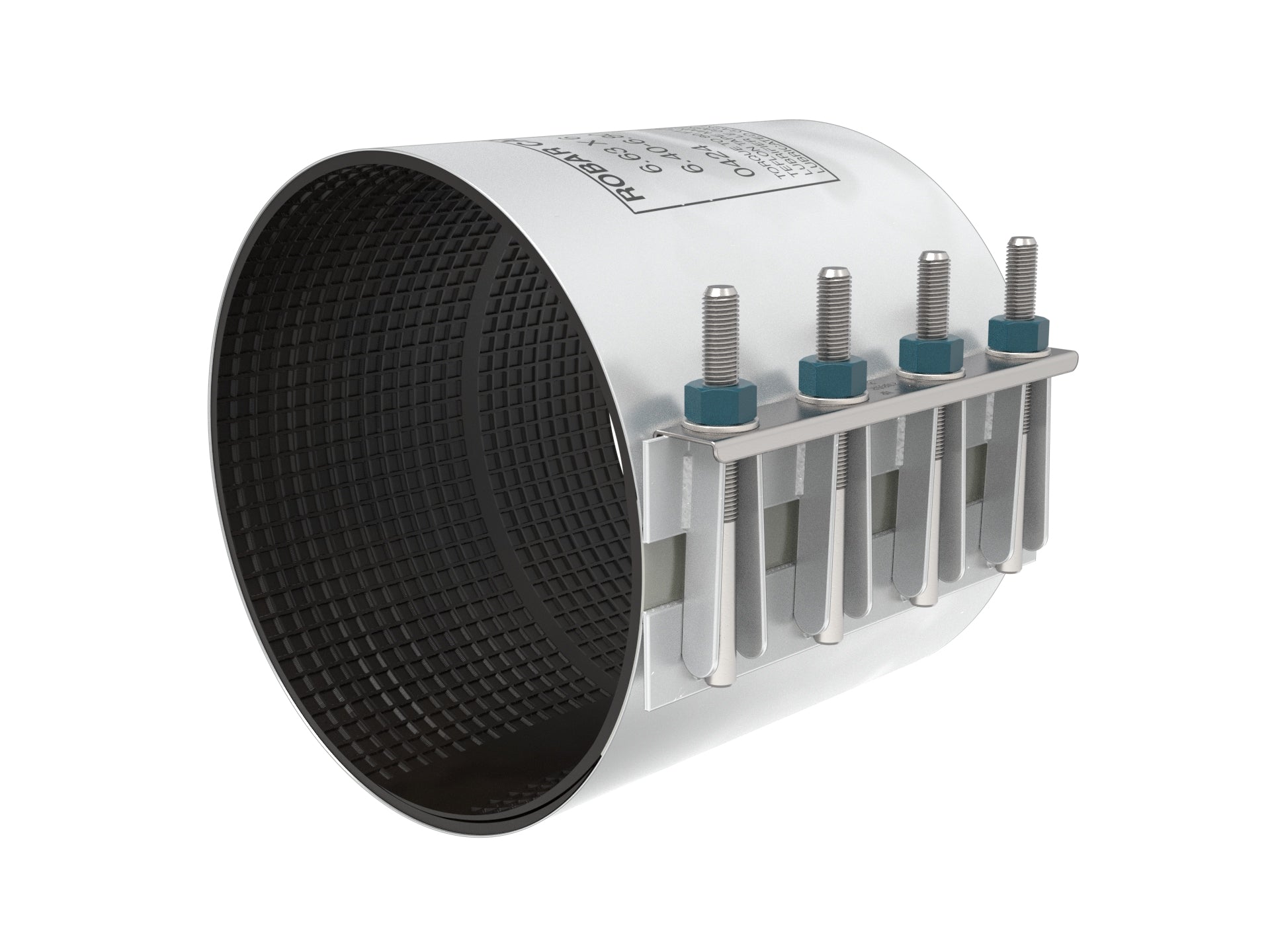

Robar Single Section 5616 Series All Stainless Repair Clamps
Effective and Economical Solution for Water Main Repairs
Robar 5600 Series Repair Clamps are designed to effectively repair holes or breaks in water mains. The Robar Single Section 5616 Series All Stainless Pipe Repair Clamps provide a simple and economical method of repairing water mains, with options for 12" or 16" clamp lengths. As the original developer and patent holder of the "All Stainless Repair Clamp," Robar ensures top-notch quality and reliability.
Key Features: Robust Construction and Reliable Performance
-
Sizes: Available in sizes 3″-12″ with one set of bolt closures.
-
Material Specifications:
-
Shell: T304 Stainless Steel, fully passivated for enhanced corrosion resistance.
-
Sidebar: T304 Stainless Steel, fully passivated.
-
Armor: T304 Stainless Steel, fully passivated.
-
Gasket: Nitrile (NBR) Rubber for secure sealing.
-
Fasteners: 5/8” NC T304 Stainless steel with nuts coated in an anti-galling compound to prevent seizing.
-
Torque: Fasteners torque rated at 70-80 ft. lbs.
-
Certifications:
-
NSF/ANSI Standard 61: Certified by WQA.
-
UL Listed: Meets NSF-61 and AWWA C230 standards.
-
Pressure Rating: Suitable for working pressures up to 150 PSI for all sizes.
Installation Tips:
-
Preparation: Clean the pipe over the entire circumference where the clamp is to be installed. Ensure there are no pebbles or dirt on the pipe or clamp gasket.
-
Lubrication: Lubricate the entire clamp gasket with an NSF-approved pipe lubricant.
-
Positioning: Ensure a minimum of 4" of the clamp extends beyond each side of the repair area. Drill small holes at each end of a crack to prevent it from spreading.
-
Tightening: Tighten the nuts evenly and incrementally, starting from the center and moving outward. Torque each nut to 80 ft. lbs.
-
Considerations: The pressure rating of the repair clamp is influenced by the type of repair, extent of damage, condition of pipe, environmental conditions, and installation workmanship.
Ideal For:
-
Water Main Repairs: Designed for repairing holes or breaks in water mains.
-
Variety of Pipe Materials: Suitable for different types of pipes due to its robust construction.
Ensure Reliable Repairs with Robar 5616 Repair Clamps
Upgrade your repair toolkit with Robar Single Section 5616 Series All Stainless Repair Clamps. Offering durable performance and secure sealing for water main repairs, these clamps are made from high-quality materials and designed for ease of use. Order yours today and ensure your water mains are securely and efficiently repaired.
| Repair Sleeve Size |
Fits Pipes with OD |
| 3" |
3.45" to 3.85" |
| 4" |
4.45" to 4.85" |
| 6" |
6.40" to 6.80" |
8"
|
8.40" to 8.80" |
10"
|
10.50" to 10.90" |
12"
|
12.55" x 12.95" |
