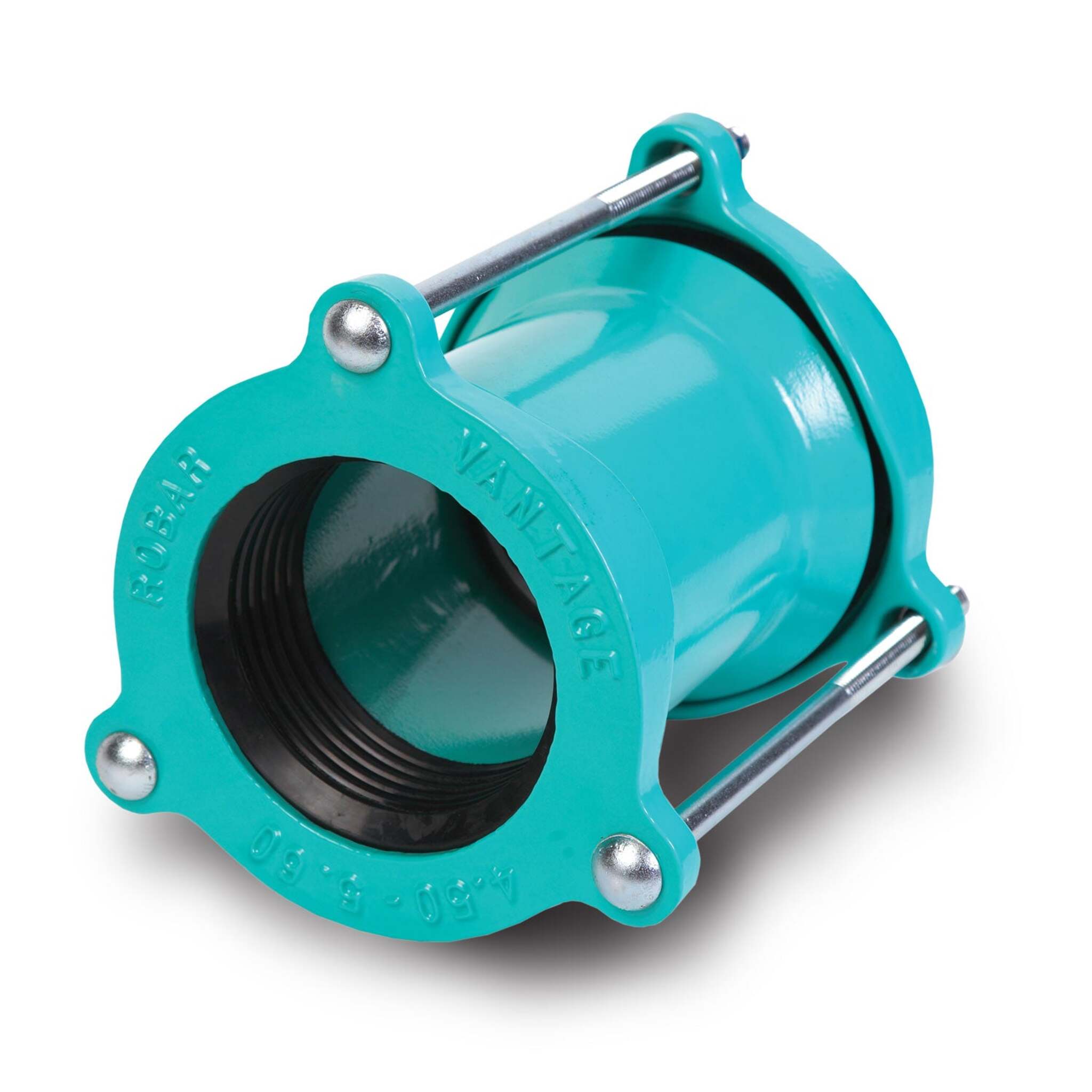

Robar Vantage Series Multi-Fit Couplings - Epoxy Coated with SS Bolts and Nuts
Versatile and Durable Coupling Solution
Robar's Vantage Series Multi-Fit Couplings are designed to couple similar or dissimilar outer diameters within the same nominal size group. The Vantage coupling features a convenient stab-fit design, making it suitable for use on ductile iron, steel, PVC, HDPE, and AC pipes. For HDPE installations, a pipe insert is required to ensure a secure fit.
Key Features: Reliable and Flexible Connections
-
Multi-Fit Capability: Accommodates similar or dissimilar ODs in the same nominal size group.
-
Stab-Fit Design: Simplifies installation on various pipe materials.
-
Angular Deflection: Allows for up to 7 degrees of deflection, providing flexibility in alignment.
-
Certification: Tested and certified by WQA to NSF/ANSI standard 61 for safe drinking water applications.
Material Specifications:
-
Center Sleeve: Made from carbon steel for strength and durability.
-
End Rings: Constructed from cast ductile iron.
-
Gaskets: Nitrile (NBR) rubber ensures a secure and leak-proof seal.
-
Fasteners: 5/8" T-304 stainless steel with nuts coated in an anti-galling compound to prevent seizing.
-
Torque: Fasteners torque rated at 70 ft. lbs.
-
Coating: Corrosion protective epoxy coating enhances durability and longevity.
-
PSI Rating:
-
4" through 10": Rated for 175 PSI.
-
12": Rated for 150 PSI.
Ideal For:
-
Diverse Pipe Materials: Suitable for ductile iron, steel, PVC, HDPE (with insert), and AC pipes.
-
Water Supply Systems: Ideal for coupling pipes in water supply and distribution systems, ensuring a secure and reliable connection.
Reliable and Efficient Coupling Solution
Enhance your piping systems with Robar Vantage Series Multi-Fit Couplings. Designed for versatility and durability, these couplings ensure secure connections for a variety of pipe materials. Order yours today and experience the robust performance and ease of installation offered by Robar's innovative design.
Nominal Size
|
Working Range |
Barrel Length |
No. of Bolts |
4" |
4.50 - 5.60 |
8 |
3 |
6" |
6.63 - 7.60 |
8 |
3 |
8" |
8.63 - 9.80 |
8 |
3 |
10" |
10.75 - 12.26 |
12 |
4 |
12" |
12.75 - 14.40 |
12 |
5 |
