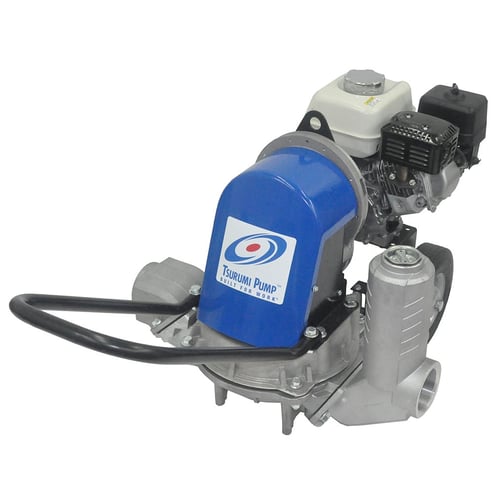

Tsurumi TD6-200 2″ Diaphragm Pump – Honda GX120 Engine

Heavy-Duty Diaphragm Pump for Sludge, Sand & Debris-Laden Water

The Tsurumi TD6-200 is a 2-inch gas-powered diaphragm pump designed for pumping sludge, sand, mud, and debris-laden water in demanding jobsite conditions. Built on Tsurumi’s proven TD-Series platform, this pump uses a positive displacement diaphragm design that allows it to run dry continuously, handle large solids, and operate reliably where conventional centrifugal pumps struggle.

Powered by a Honda GX120 gasoline engine, the TD6-200 delivers dependable performance for construction dewatering, seepage control, and sewage or septic applications where durability and solids handling are critical.

TD6-200 2″ Diaphragm Pump Key Specifications

• Pump Type: Positive displacement diaphragm pump
• Discharge Size: 2″ NPT
• Maximum Flow: 50 GPM
• Maximum Solids Handling: Up to 1-5/8″ diameter
• Engine: Honda GX120 gasoline engine
• Horsepower: 4 HP @ 3600 RPM
• Dry-Run Capability: Yes – continuous dry operation
• Maximum Fluid Temperature: 180°F (82°C)
• Pump Body: Sand-cast aluminum
• Diaphragm Material: Thermoplastic rubber
• Base Design: 90° rotatable base

What This Pump Is Designed For

The Tsurumi TD6-200 is purpose-built for applications where abrasive solids, thick sludge, or intermittent water flow would damage or stall conventional pumps.

Common applications include:

• Construction site dewatering
• Seepage and groundwater control
• Sludge and slurry pumping
• Sand and mud removal
• Septic tanks and sewage transfer
• Rental fleet and utility use

This pump is especially effective in high water table environments and areas with thick, debris-laden material.

Why Choose the Tsurumi TD6-200?

True Dry-Run Capability

The TD6-200 is engineered to operate continuously without water, making it ideal for unattended pumping, seepage dewatering, and fluctuating water levels. While short-term deadheading is tolerated, proper operation practices help extend diaphragm life.

High Solids Handling

With the ability to pass solids up to 1-5/8″, this pump handles sludge, sand, and debris that would clog centrifugal trash pumps.

Durable Construction

• Sand-cast aluminum pump body balances strength and portability
• 90° rotatable base allows flexible hose routing on tight jobsites
• Modular frame, handle, and wheel components for jobsite durability

Fully Serviceable Design for Long-Term Use

The TD6-200 is not a disposable pump. It is built for long-term professional use, with every major component individually serviceable, including:

• Replaceable thermoplastic rubber diaphragm and retaining plate
• Serviceable plunger and crank assembly
• Replaceable neoprene check valves and valve weights
• Fully enclosed, oil-filled gearbox and seals
• Engine mounting and drive components

This fully serviceable design simplifies routine maintenance, reduces downtime, and lowers total cost of ownership making the TD6-200 especially well suited for contractors, municipalities, and rental fleets operating in harsh environments.

What This Pump Is Not Intended For

For transparency and proper application:

• Not designed for clean water, irrigation, or high-volume transfer
• Not a replacement for high-flow centrifugal pumps
• Not intended for continuous high-pressure deadheading

Choosing the right pump for the job ensures best performance and service life.

Shop the Tsurumi TD6-200 at Cleanflow

The Tsurumi TD6-200 diaphragm pump is a proven solution for professionals who need reliable pumping performance in sludge, sand, and debris-heavy conditions. Built for durability, serviceability, and real-world jobsite use, it delivers dependable operation where other pumps fail.

If you need help confirming fit or selecting accessories, Cleanflow’s team is ready to assist.

Frequently Asked Questions

Are Tsurumi pumps good?

Yes. Tsurumi pumps are built for heavy-duty, professional use and are backed by a two-year manufacturer warranty. Their rugged construction and serviceable design contribute to long-term reliability in harsh operating environments.

What is the warranty on Tsurumi pumps?

Tsurumi warrants to the original end purchaser that each new Tsurumi pump or product is free from defects in material and workmanship under normal use and service, when properly installed and maintained, for a period of two (2) years, in accordance with Tsurumi’s instruction manual.

Can the TD6-200 run dry?

Yes. It is designed for continuous dry-run operation, making it ideal for seepage dewatering.

What size solids can it handle?

Up to 1-5/8″ diameter solids.

Is this pump suitable for sewage and sludge?

Yes. It is commonly used for sludge, sewage, sand, and mud applications.

Is the diaphragm replaceable?

Yes. The diaphragm, check valves, and internal components are fully replaceable.

Can this pump be winterized?

Yes. Like all pumps, it should be drained and properly winterized in freezing conditions.
