Description
Washable Jumbo Pleated Polyester Cartridge for Commercial and Industrial High Flow Filtration
Overview

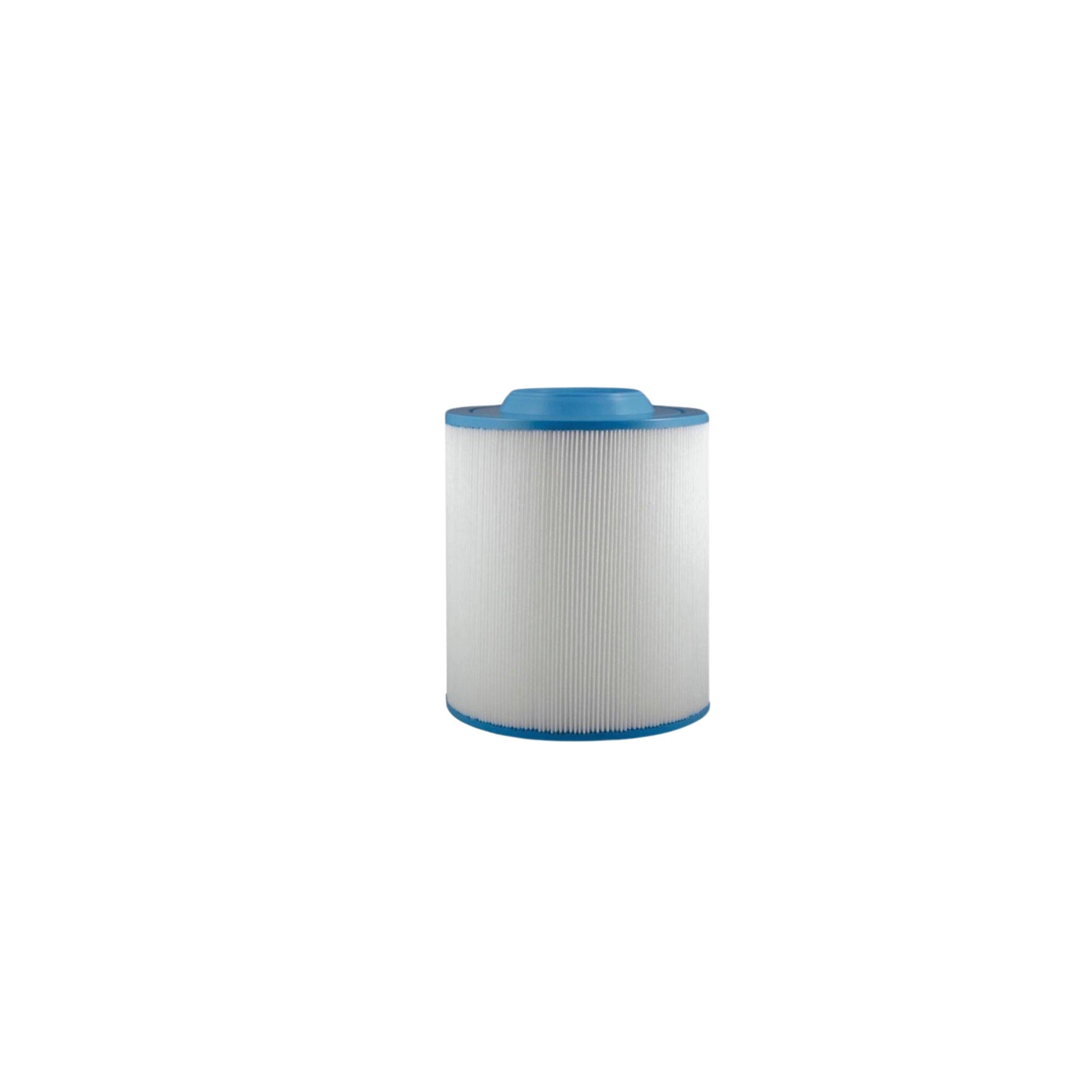

The Franklin FWHF 40 Series is a 7.75" OD (197mm) high flow pleated filter cartridge built from polyester media. The large diameter provides significantly more filtration surface area than standard 2.5" or 4.5" cartridges, which allows higher flow rates at lower pressure drop. Washable and reusable. One-piece poured construction (core, end cap, and media fused as a single unit). Four micron ratings: 1 Absolute, 1, 5, and 20.
Specifications
| Specification | Detail |
|---|---|
| Series | FWHF 40 (10" length) |
| Filter Type | Pleated (surface filter), washable |
| Media | Polyester |
| End Caps | Polyurethane / Plastisol |
| Construction | One-piece poured (core, end cap, media fused) |
| Actual Size | 7-3/4" x 9.63" (197mm x 245mm) |
| Micron Ratings | 1 Absolute, 1, 5, 20 |
| Max Operating Temperature | 37.8°C (100°F)* |
| Max Operating Differential Pressure | 4 Bar (58 psi) |
| Washable | Yes |
| Box Quantity | 12 |
| Box Dimensions | 45 x 69 x 60 cm (18 x 27 x 24 in) |
| Box Weight | 20.5 kg (45 lbs) |
| Also Available In | 20" (90 Series, box of 6) and 30" (170 Series, box of 4) |
| Part # | Micron | Type |
|---|---|---|
| FWHF401A | 1 | Absolute |
| FWHF401 | 1 | Nominal |
| FWHF405 | 5 | Nominal |
| FWHF4020 | 20 | Nominal |
Absolute vs Nominal Micron Rating
This cartridge is available in both 1 Micron Absolute (FWHF401A) and 1 Micron Nominal (FWHF401). The distinction matters for system design:
The 5 and 20 micron variants are nominal rated. If your application requires absolute-rated filtration at those micron levels, contact Cleanflow for alternatives.
Key Features
- 7.75" (197mm) diameter provides up to 3x the filtration surface area of standard 4.5" Big Blue cartridges, which supports higher flow rates at lower pressure drop in commercial and industrial systems.
- Pleated polyester media is washable and reusable, reducing replacement frequency and per-gallon operating cost.
- One-piece poured construction fuses the center core, end caps, and filter media as a single unit, which eliminates separation under pressure and creates a positive seal.
- Available in 1 Micron Absolute for applications requiring guaranteed particle removal (RO pre-filtration, food and beverage, desalination) and 1, 5, 20 Micron Nominal for general filtration.
Applications
- Swimming pool and spa filtration
- Potable drinking water systems
- Cooling tower filtration
- Desalination and RO pre-filtration
- Food and beverage processing
- Industrial wastewater treatment
- Oil and gas, paints, inks, and coatings
- Paper and pulp process water
Buy High Flow Pleated Filter Cartridges from Cleanflow
Cleanflow Utility Supply Company stocks the Franklin FWHF 40 Series high flow pleated filter cartridge in all four micron ratings as part of the Jumbo Water Filters collection. Sold individually or by the case (12).
Need a longer cartridge for higher capacity? The FWHF 90 Series (20") and 170 Series (30") fit the same 7.75" OD jumbo housings in longer configurations.
Free shipping on orders over $199. 30-day return policy. Email info@cleanflow.ca for case pricing or help selecting the right micron rating for your system.
Frequently Asked Questions
Can this cartridge be washed and reused?
Yes. The pleated polyester media is washable. Rinse with clean water or backwash to remove accumulated sediment. Washing restores flow and extends service life. Replace when cleaning no longer restores acceptable pressure drop or when the media is visibly damaged.
What is the difference between absolute and nominal micron ratings?
An absolute rating guarantees 99.9%+ removal at the stated micron size. A nominal rating removes most particles at that size but without a guaranteed efficiency. See the comparison table above. Choose absolute (FWHF401A) when your application requires documented particle removal, such as food processing, pharmaceutical, or desalination pre-filtration.
What housings does this cartridge fit?
The FWHF 40 Series fits jumbo filter housings designed for 7.75" OD (197mm), 10" length cartridges. These are larger than standard 2.5" or 4.5" Big Blue housings. Verify your housing accepts the 40 Series form factor before ordering.
Why choose a high flow pleated filter over a standard cartridge?
The 7.75" diameter provides far more filtration surface area than a 2.5" or 4.5" cartridge. More surface area means higher flow rates at lower pressure drop, longer intervals between changes or washes, and lower per-gallon operating cost in high-throughput systems. The trade-off is a larger housing and higher upfront cartridge cost.
What filter should I use before an RO membrane?
For RO pre-filtration, use the FWHF401A (1 Micron Absolute) to protect the membrane from fine particulates. For systems treating water with heavy sediment, add a coarser pre-filter (5 or 20 micron) upstream of the 1 micron absolute to extend the life of both stages. Pair with a carbon block filter to reduce chlorine before the membrane.
