Description
40 Inch Sediment Filter Cartridge for Industrial and Commercial Systems
Overview

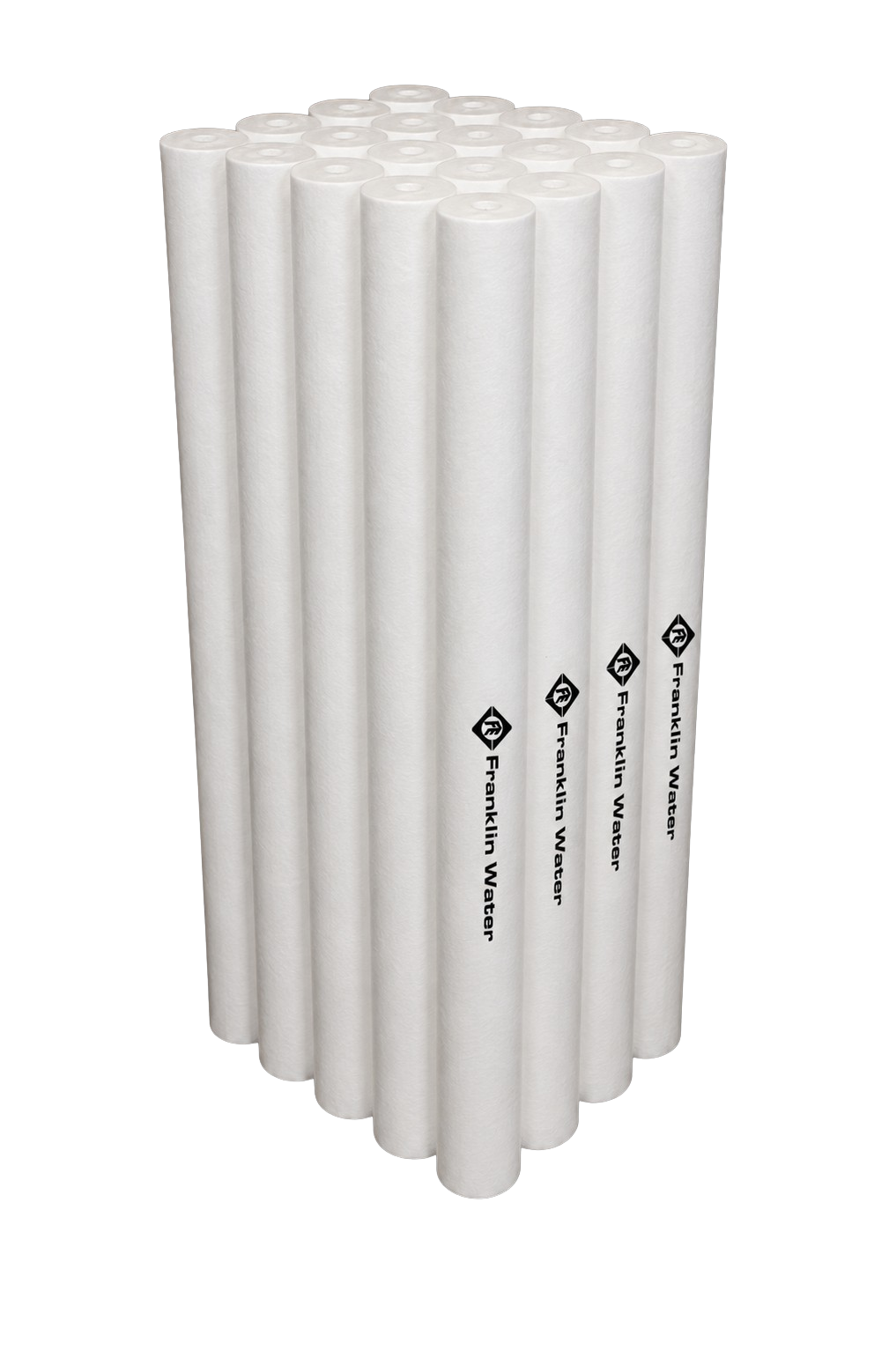

The Franklin 40" x 2.5" OD FWPS Series Spun Poly Filter Cartridge is the longest standard cartridge in the FWPS series, built for high-flow commercial and industrial water treatment systems where filter change downtime needs to be minimized. The extended length holds more sediment per cartridge than the 10" or 20" versions, which extends service intervals and reduces maintenance frequency in continuous-operation systems.
Constructed from 100% melt blown micro-denier polypropylene using thermal bonding with no adhesives or binders. Three-layer gradient density captures coarse particles on the outer surface and finer sediment toward the center. NSF 42 and FDA CFR Title 21 certified. Three micron ratings: 1, 5, and 20. Sold individually or in cases of 20.
Key Features
- 40" length for maximum dirt-holding capacity and the longest service intervals in the FWPS series.
- 100% polypropylene micro-denier fiber, thermally bonded without binders, adhesives, or chemical glues.
- Available in 1, 5, and 20 micron only. The 50 micron rating is not manufactured in the 40" length.
- Chemically resistant. Will not add taste, odor, or color to water. Resistant to bacterial attack.
- NSF 42 and FDA CFR Title 21 certified for potable water and food contact applications.
Applications
- Commercial and industrial water treatment systems
- Industrial process water and cooling water filtration
- Reverse osmosis pre-filtration
- Food and beverage processing
- Chemical processing and electroplating
- High-volume systems requiring minimal filter change downtime
Specifications
| Specification | Detail |
|---|---|
| Series | FWPS |
| Cartridge Size | 40" x 2.5" OD |
| Part Numbers | WPS4001 (1µ), FWPS4005 (5µ), FWPS4020 (20µ) |
| Media | 100% melt blown micro-denier polypropylene |
| Construction | Thermal bonded, three-layer gradient density |
| Micron Ratings | 1, 5, 20 |
| Max Operating Temperature | 65°C (150°F) |
| Nominal Replacement ΔP | 1.5 Bar (22 psi) |
| Max Pressure Drop @ 20°C | 3.2 Bar (46.4 psi) |
| Certifications | NSF 42, FDA CFR Title 21 |
| Case Quantity | 20 filters |
The 40" FWPS is available in 1, 5, and 20 micron. The 50 micron rating is available in the 10" and 20" cartridge lengths only.
Housing Compatibility
The 40" x 2.5" cartridge fits standard 40" slim-line filter vessels commonly used in commercial and industrial water treatment. These include multi-round stainless steel housings, single-cartridge PVC/CPVC vessels, and industrial filter skids designed for the standard 2.5" OD x 40" cartridge format.
This cartridge does NOT fit residential under-sink or whole-house housings, which typically accept 10" or 20" cartridges. Confirm your vessel's cartridge dimensions before ordering.
Choosing the Right Micron Rating
- 1 micron: Finest filtration available in the 40" length. Use as a polishing stage before RO membranes or in systems treating pre-filtered water with low remaining particulate.
- 5 micron: General purpose sediment removal for most commercial and industrial applications. The most commonly ordered rating for the 40" cartridge.
- 20 micron: Coarser pre-filtration. Use as a first stage to protect finer downstream filters or equipment from sand, rust, and heavy particulates.
Buy 40" Spun Poly Sediment Filters from Cleanflow
Cleanflow stocks the Franklin FWPS 40" spun polypropylene sediment filter cartridge in all three micron ratings as part of the Franklin Water catalog. Available individually or by the case (20 filters). Also available in the FWPS series: 10" standard, 20" extended, and 4.5" Big Blue.
Free shipping on orders over $199. 30-day return policy. Ships across Canada and the United States. Email info@cleanflow.ca for volume orders, returns, or help selecting the right cartridge for your system.
Frequently Asked Questions
Why choose a 40" filter cartridge over a 10" or 20"?
The 40" cartridge holds significantly more sediment before reaching the replacement pressure drop threshold. In continuous-operation commercial or industrial systems, this means fewer shutdowns for filter changes and lower annual maintenance costs. The 40" is the right choice when uptime matters more than cartridge cost.
What micron ratings are available for the 40" FWPS?
What part number do I need?
FWPS4001 for 1 micron, FWPS4005 for 5 micron, FWPS4020 for 20 micron. Confirm the micron rating matches your system requirements before ordering.
Will this fit a residential filter housing?
No. The 40" cartridge is designed for commercial and industrial filter vessels that accept a 40" x 2.5" OD cartridge. Standard residential housings typically accept 10" or 20" cartridges. Check your vessel specifications before ordering.
Can this cartridge be used as RO pre-filtration?
Yes. The FWPS 40" is commonly used as a pre-filter in commercial RO systems to remove sediment before the membrane. A 5 micron cartridge upstream of the RO unit is the most common setup for balancing flow and protection.
