Description

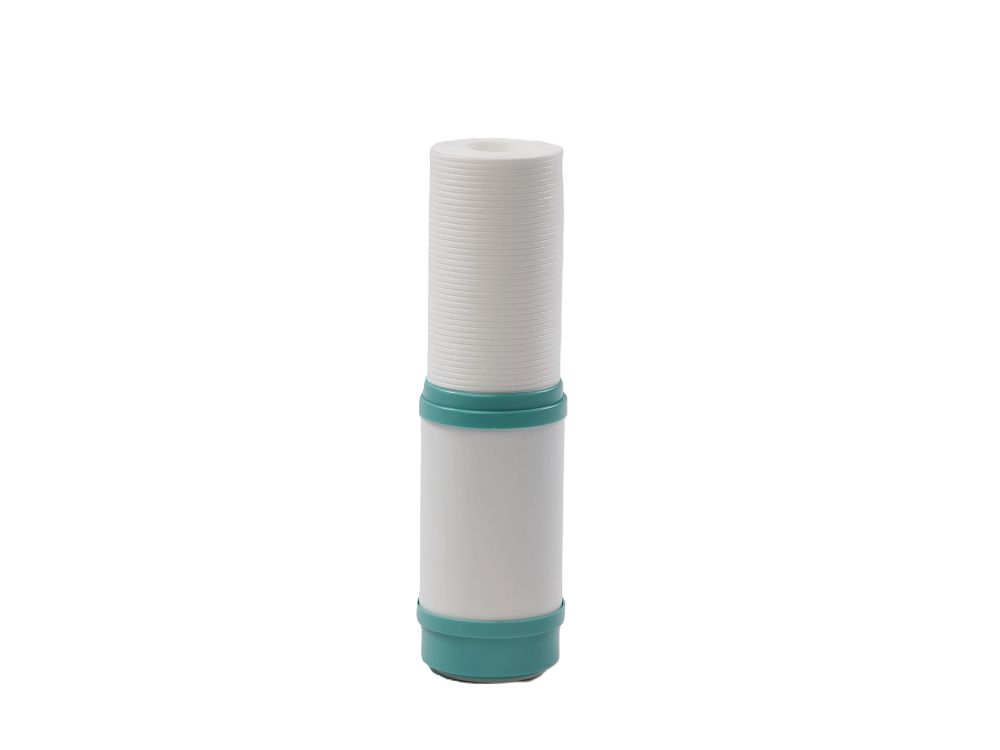

Dual Media Carbon Sediment Combo Filter for RO Pre-Filtration and Point-of-Use Drinking Water
Overview
Most RO systems use two separate pre-filters: one for sediment, one for chlorine. The Franklin FWPC filter cartridge combines both in a single 2.5" x 10" cartridge. A graded-density polypropylene layer captures 5-micron particulates while an integrated coconut carbon GAC layer reduces chlorine, taste, odor, and THMs. One cartridge, one housing, two stages of protection. Fits standard 10" x 2.5" slimline housings.
Specifications
| Specification | Detail |
|---|---|
| Series | FWPC |
| Part Number | FWPC1005 |
| Filter Type | Dual media: spun polypropylene sediment + coconut shell GAC |
| Micron Rating | 5 micron nominal |
| Sediment Media | 100% Virgin Polypropylene (cellulose-free, bacteria-resistant) |
| Carbon Media | Coconut GAC |
| Outer Shell | Polyethylene |
| Core | Polypropylene |
| End Caps | Polypropylene |
| Gaskets | Buna-N |
| Size | 2.5" x 10" (OD: 75mm / 2.5", ID: 28mm / 1.1", Length: 250mm / 10") |
| Max Operating Temperature | 40°C (105°F) |
| Max Operating Pressure | 8 Bar (115 psi) |
| Nominal ΔP for Replacement | 1.5 Bar (22 psi) |
| Certification | None listed on manufacturer spec sheet |
| Housing Compatibility | Standard 10" x 2.5" slimline filter housings |
| Box Quantity | 25 |
| Box Dimensions | 38 x 38 x 27 cm (15 x 15 x 10.5 in) |
| Box Weight | 4.9 kg (10.8 lbs) |
FWPC Combo vs Separate Sediment and Carbon Cartridges
The FWPC carbon sediment combo filter cartridge replaces a two-cartridge setup (separate sediment + separate carbon) with a single dual media RO prefilter. This matters when housing space or budget limits the number of filter stages.
Choose the FWPC combo when: Your system has only one pre-filter housing (common in compact residential RO systems). You want sediment and chlorine reduction in a single cartridge to simplify maintenance. You need a 2 in 1 sediment chlorine filter that protects the RO membrane from both particulates and chlorine in one step.
Choose separate cartridges when: Your system has two or more housing slots. Your water has heavy sediment that would load a combo filter faster than a dedicated sediment cartridge. You need higher chlorine capacity than a combo can provide (the FWCB carbon block provides 17,000+ gallons vs the FWPC's unrated capacity). Separate FWPS sediment and FWCB carbon block filters give you more capacity and independent replacement schedules.
Key Features
- Two-stage filtration in one cartridge. The polypropylene coconut carbon filter handles sediment removal and chlorine reduction without a second housing, reducing upfront cost and simplifying cartridge changes.
- Graded-density polypropylene sediment layer resists bacterial growth and contains no cellulose, binders, or additives. The complex fiber structure maximizes dirt-holding capacity at 5 micron nominal.
- Coconut shell GAC media reduces chlorine, taste, odor, and trihalomethanes (THMs) through chemical adsorption.
- Max operating pressure of 8 bar (115 psi) and max temperature of 40°C (105°F). Cold water applications only.
Applications
- Residential RO pre-filtration
- RO post-treatment polishing
- Point-of-use drinking water systems
- Food and beverage processing
- Potable and process water treatment
Buy Carbon Sediment Combo Filter Cartridges from Cleanflow
Cleanflow Utility Supply Company carries the Franklin FWPC filter cartridge individually and in packs of 25. Browse the full Franklin Water lineup. This dual media RO prefilter ships across Canada and the USA. Free shipping on orders over $199. Returns accepted within 30 days. Email info@cleanflow.ca for help selecting the right RO prefilter for sediment and chlorine reduction.
Frequently Asked Questions
What is a dual media filter cartridge?
A dual media filter cartridge combines two filtration stages in one housing. The FWPC pairs a polypropylene sediment layer with coconut shell GAC carbon. It removes both particulates and dissolved chlorine, which is why it works as a single-cartridge RO prefilter for sediment and chlorine.
How does a carbon sediment combo filter work?
Water passes through the graded-density polypropylene first, which captures sand, silt, rust, and other particles at 5 micron. Then it flows through the coconut carbon GAC layer, which adsorbs chlorine, taste, odor, and THMs. Two filtration stages, one cartridge.
Can one filter remove both sediment and chlorine?
Yes. The FWPC is a 2 in 1 sediment chlorine filter that handles both in a single 10" x 2.5" cartridge. It will not match the capacity of dedicated separate filters, but it covers both contaminant types for systems with limited housing space.
Should I use a combo filter or separate cartridges for my RO system?
If your system has one pre-filter housing, the FWPC combo is the practical choice. If your system has two or more slots, separate FWPS sediment and FWCB carbon block cartridges provide higher individual capacity and independent replacement schedules.
What is the best RO prefilter for chlorine and sediment?
For single-housing systems, the Franklin FWPC filter cartridge provides combined sediment and chlorine reduction. For multi-housing systems, pair an FWPS spun poly sediment filter with an FWCB coconut shell carbon block for maximum capacity and flexibility.
