Description

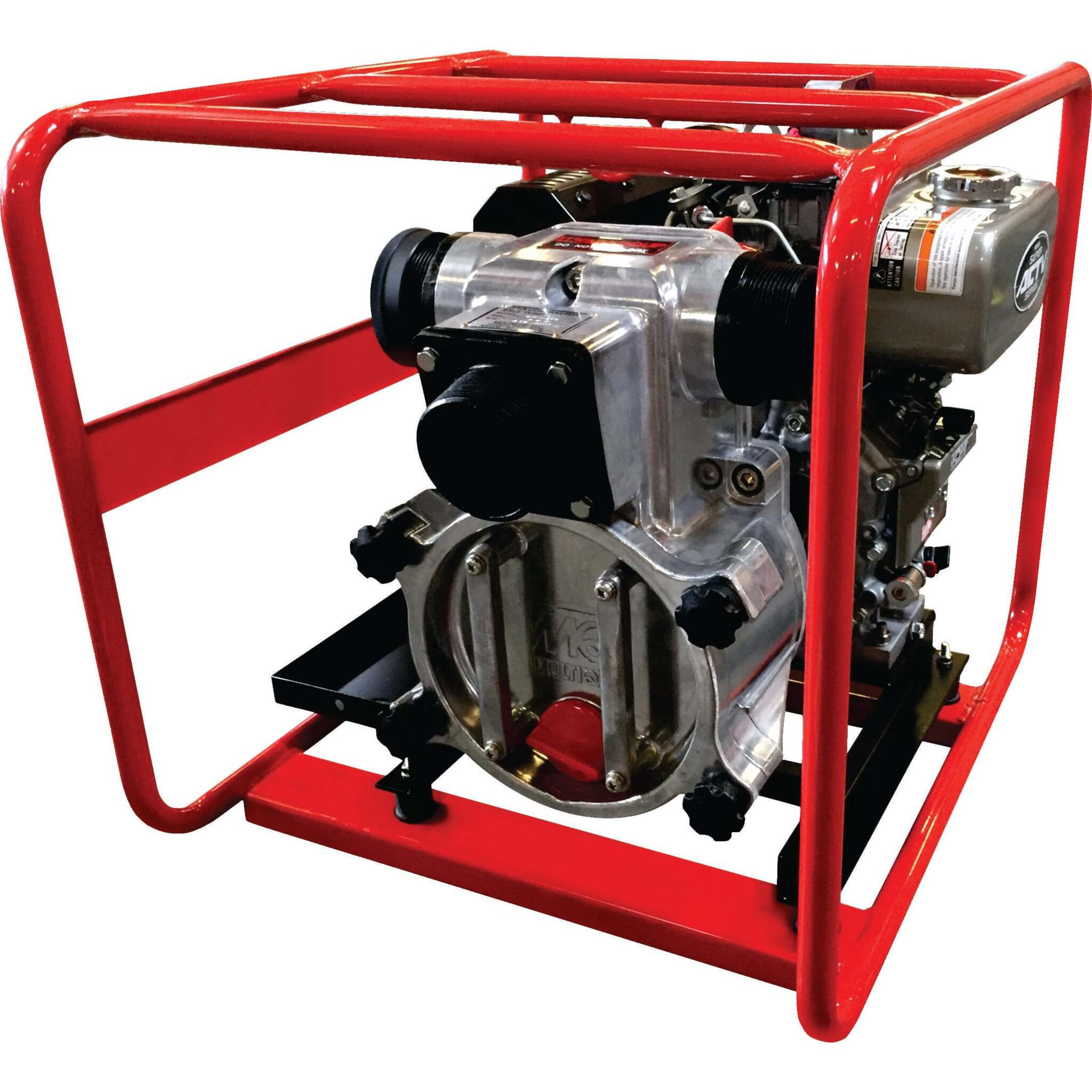

3″ Diesel Trash Pump Rated for 325 GPM and 85 ft of Head
The Multiquip QP3TK is a 3-inch diesel centrifugal trash pump rated for 325 gallons per minute with a maximum head of 85 feet. It is used for high-flow dewatering where discharge distance, elevation change, or sustained pumping time is required.
The pump is powered by a 6.0 HP Kubota OC60-E4 diesel engine with electric start and EPA/CARB compliance. It is designed for water containing debris and solids up to 1.5 inches in diameter.
Multiquip QP3TK 3″ Diesel Centrifugal Trash Pump Key Specifications
| Specification | Value |
|---|---|
| Pump Type | Centrifugal trash pump |
| Suction / Discharge | 3″ × 3″ |
| Maximum Flow | 325 GPM (1450 LPM) |
| Maximum Head | 85 ft (27 m) |
| Maximum Lift | 25 ft (7.6 m) |
| Maximum Pressure | 37.7 PSI (268 kPa) |
| Maximum Solid Intake | 1.5″ (37 mm) |
| Engine | Kubota OC60-E4 diesel |
| Power Output | 6.0 HP |
| Starting System | Electric start |
| Fuel Tank Capacity | 0.95 gal (3.5 L) |
| Pump Casing | Die-cast aluminum |
| Impeller / Volute | #45 ductile iron |
| Mechanical Seal | Silicon / carbon |
| Discharge Configuration | Dual 3″ outlets |
| Frame | Tubular steel |
| Operating Weight | 176 lb (80 kg) |
| Wheel Kit | Optional (UWKA) |
Typical Uses
The Multiquip QP3TK is commonly used when large volumes of water must be moved continuously and head pressure is a factor.
Applications include:
- Construction site dewatering
- Excavations and trenching
- Flood water removal
- Sewage bypass pumping (within rated solids limits)
- Water transfer
- Barge and marine cleaning
Mechanical Characteristics
- Centrifugal pump design for continuous operation
- Die-cast aluminum pump casing for faster priming
- Large clean-out chamber for debris removal
- Ductile iron impeller and volute for abrasion resistance
- Silicon / carbon mechanical seal for durability
- Shock-mounted pump assembly to reduce vibration
- Dual discharge ports for hose routing flexibility
QP3TK Compared to Other Centrifugal Trash Pumps
The QP3TK is selected when higher head capability and sustained flow are required within the centrifugal trash pump category.
- Higher maximum head (85 ft) than standard gasoline trash pumps
- Higher pressure output for long discharge runs or elevation changes
- Diesel engine suited for extended duty cycles and fuel efficiency
- Dual 3″ discharge ports for flexible hose configurations
- Designed for continuous pumping of debris-laden water up to 1.5″ solids
This makes the Multiquip QP3TK Centrifugal Trash Pumps appropriate for applications where flow distance, lift, and run time exceed the capabilities of smaller or lower-head centrifugal trash pumps.
Application Limits
This pump is not intended for:
- Dry-run operation
- Solids larger than 1.5″
- Thick sludge or viscous slurry
- Lightweight portable use
- Applications requiring self-priming under air exposure
Correct pump selection is required to maintain performance and service life.
Multiquip QP3TK at Cleanflow
Multiquip has manufactured professional construction equipment since 1973. The QP3TK reflects Multiquip’s approach to diesel centrifugal trash pumps: defined performance limits, serviceable components, and long-term field use.
For specification confirmation or accessory selection, Cleanflow can assist.
Frequently Asked Questions
What type of pump is the QP3TK?
A diesel-powered centrifugal trash pump.
How much water can it move?
Up to 325 GPM, depending on conditions.
What is the maximum head?
85 feet.
What size solids can it pass?
Up to 1.5″ spherical solids.
Is it suitable for sewage bypass work?
Yes, when solids remain within the rated limit.
Does it include a wheel kit?
No. A wheel kit is available separately (UWKA).
Do centrifugal trash pumps need to be primed before use?
Yes. A centrifugal trash pump must be primed with water before operation. Proper priming allows the pump to generate suction and maintain consistent flow during dewatering or water transfer.
