Description
Complete Confined Space Entry Kit with Fall Protection and Rescue in One Package
Product Overview

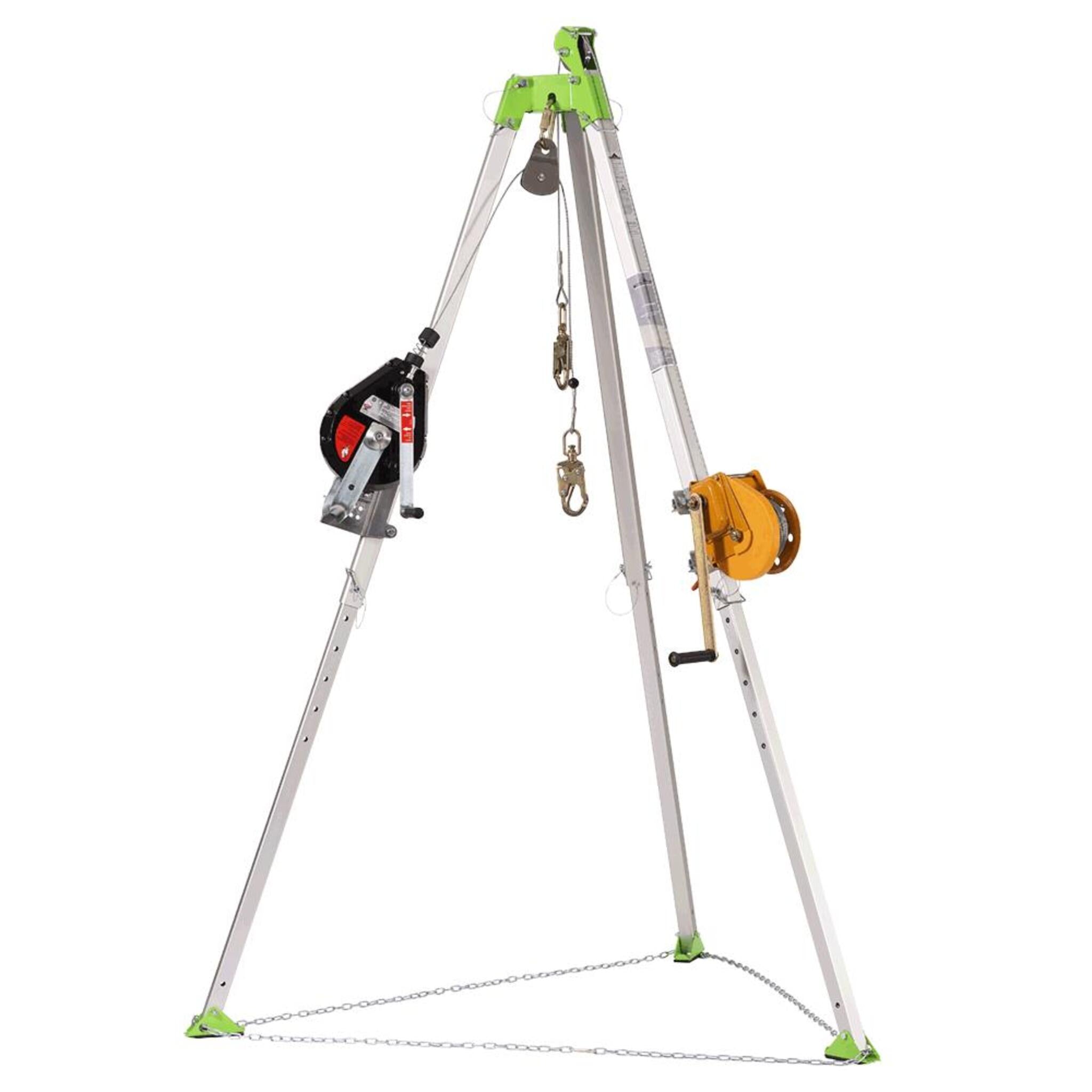

The Peakworks CSK3-60 is a complete confined space entry kit that includes all three components needed for OSHA-compliant operations: the TR-100 aluminum tripod, a 60-foot SRL-53303 3-way self-retracting lifeline for fall protection, and a 65-foot MW-65G man winch for rescue retrieval. This confined space rescue kit with tripod SRL and winch ships as one package with a carrying bag, ready to deploy.
Key Features

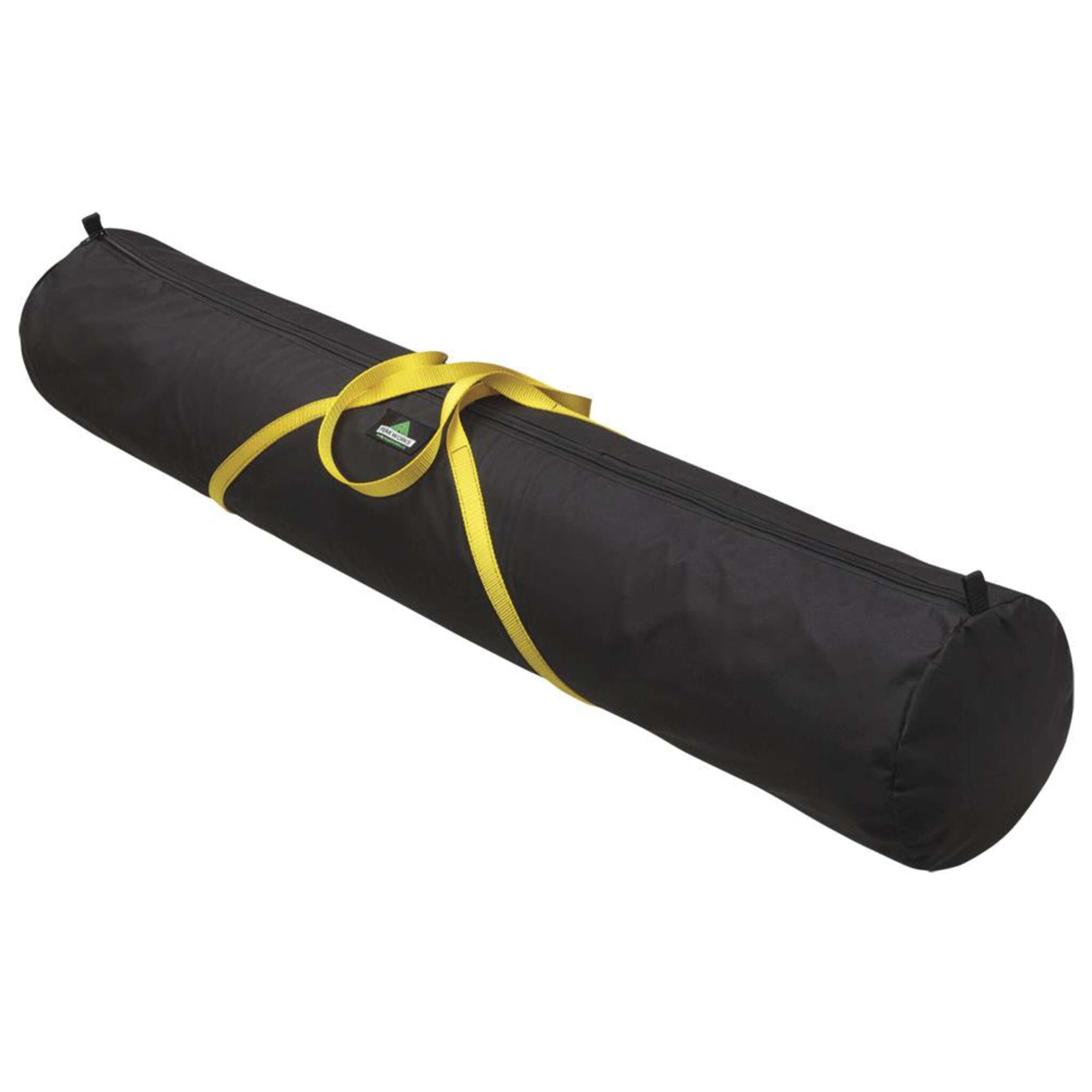

- Includes TR-100 tripod, 60-foot SRL-53303, 65-foot MW-65G man winch, and carrying bag in one confined space rescue kit
- Covers all three OSHA entry requirements in one order: lowering/raising (winch), continuous fall protection (SRL), and emergency rescue retrieval (winch)

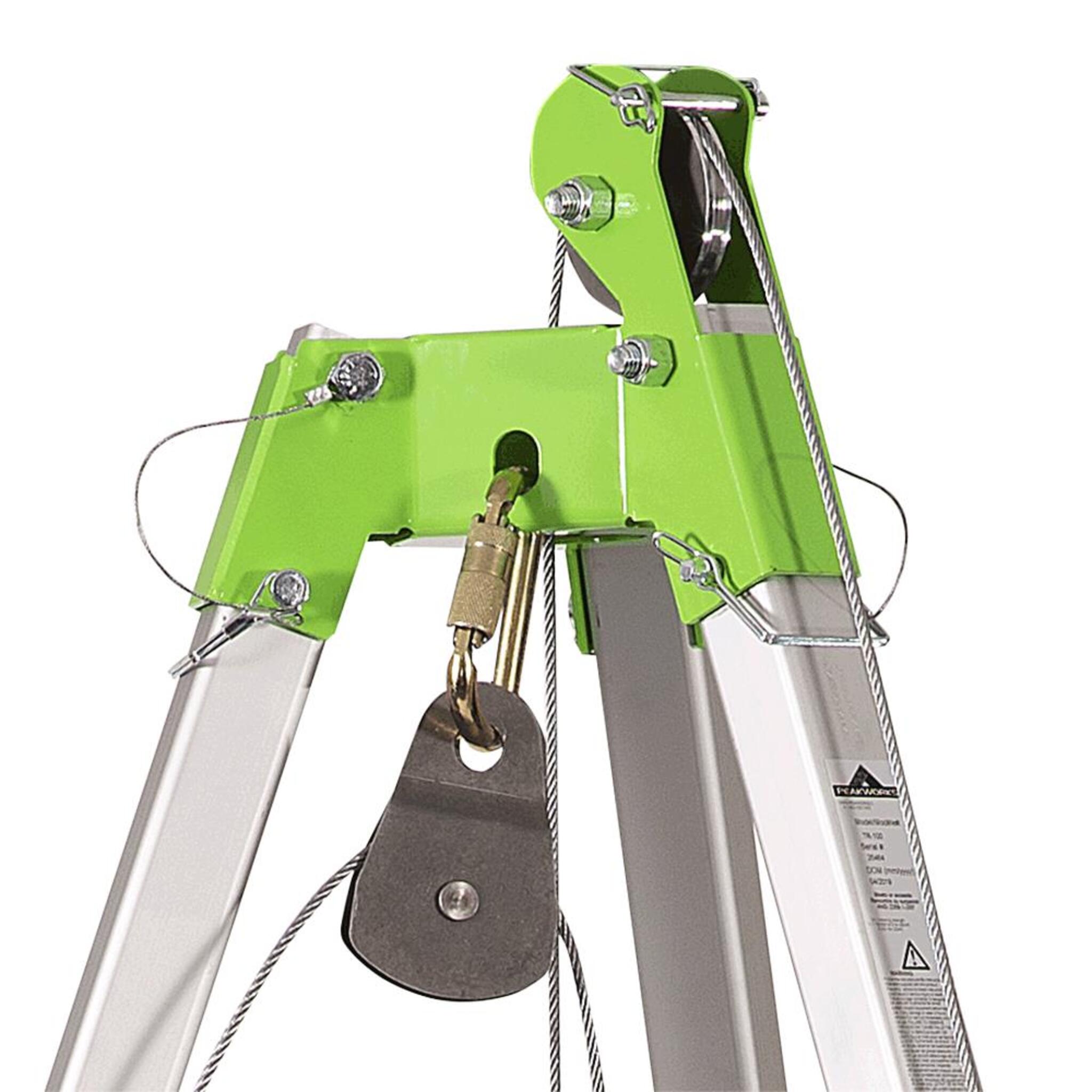

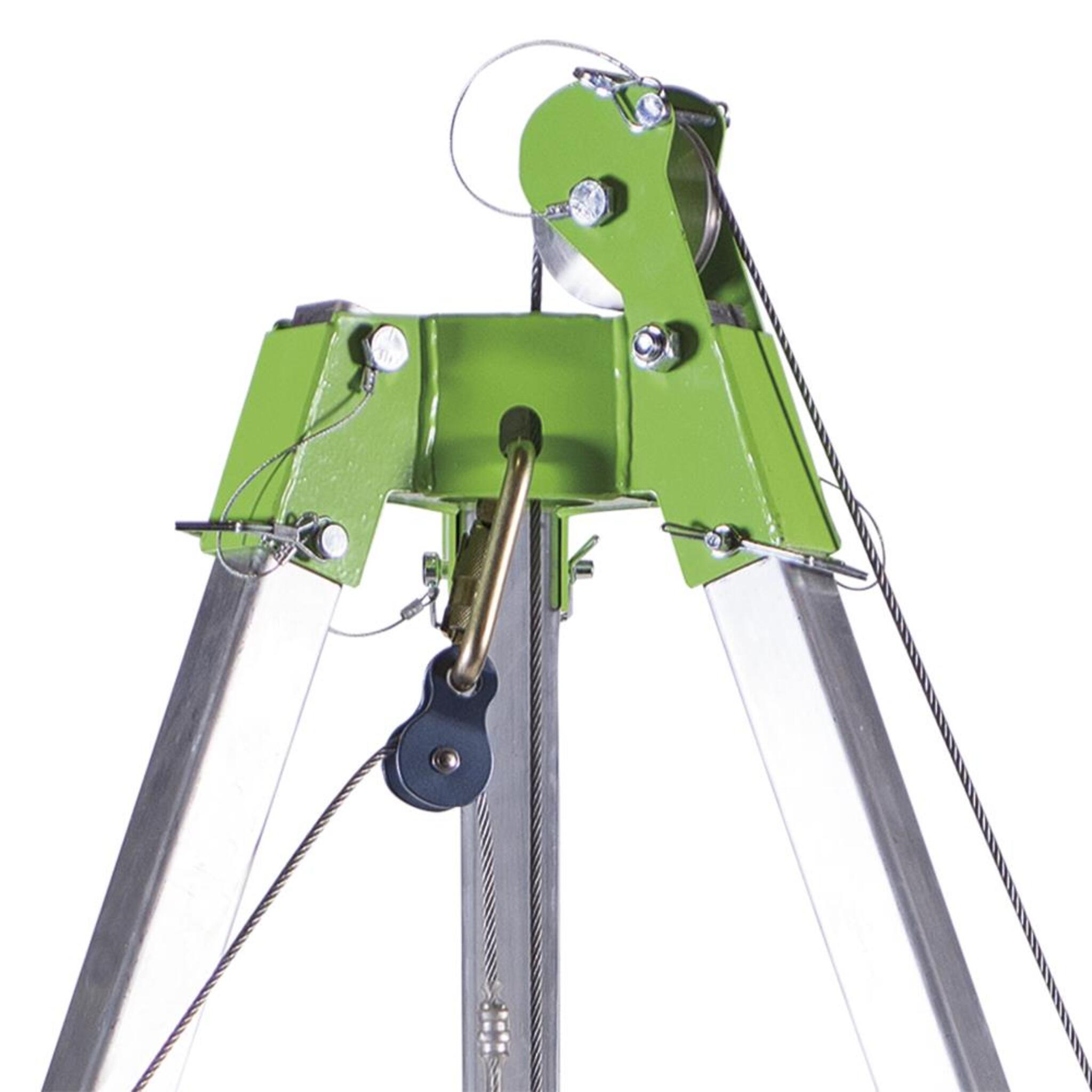

- Above-the-head pulley places wire rope directly over center point for balanced lifting and more headroom than below-the-head designs

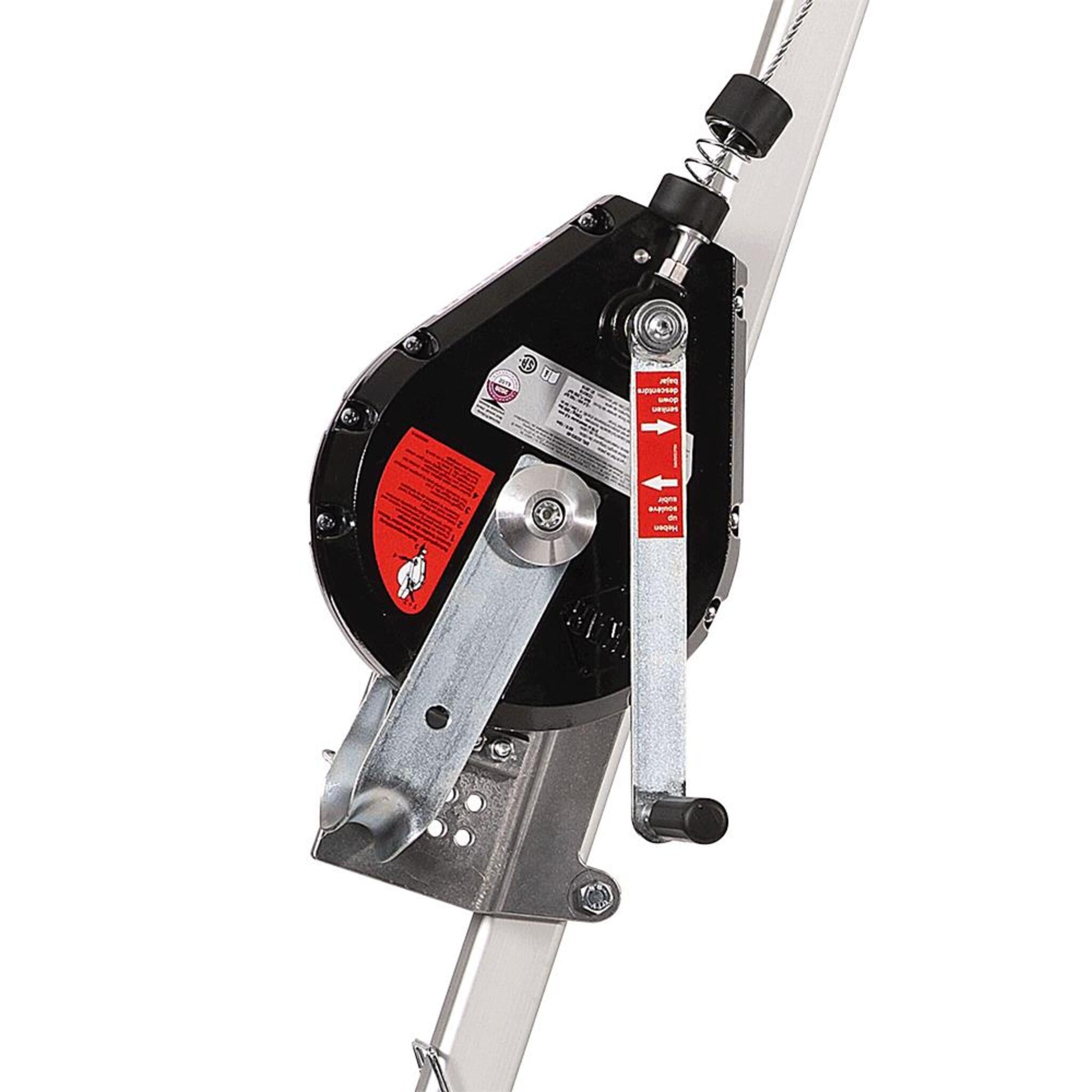

- 3-way SRL provides automatic fall arrest during entry and switches to manual recovery mode for backup retrieval, with steel swivel snaphook and load indicator

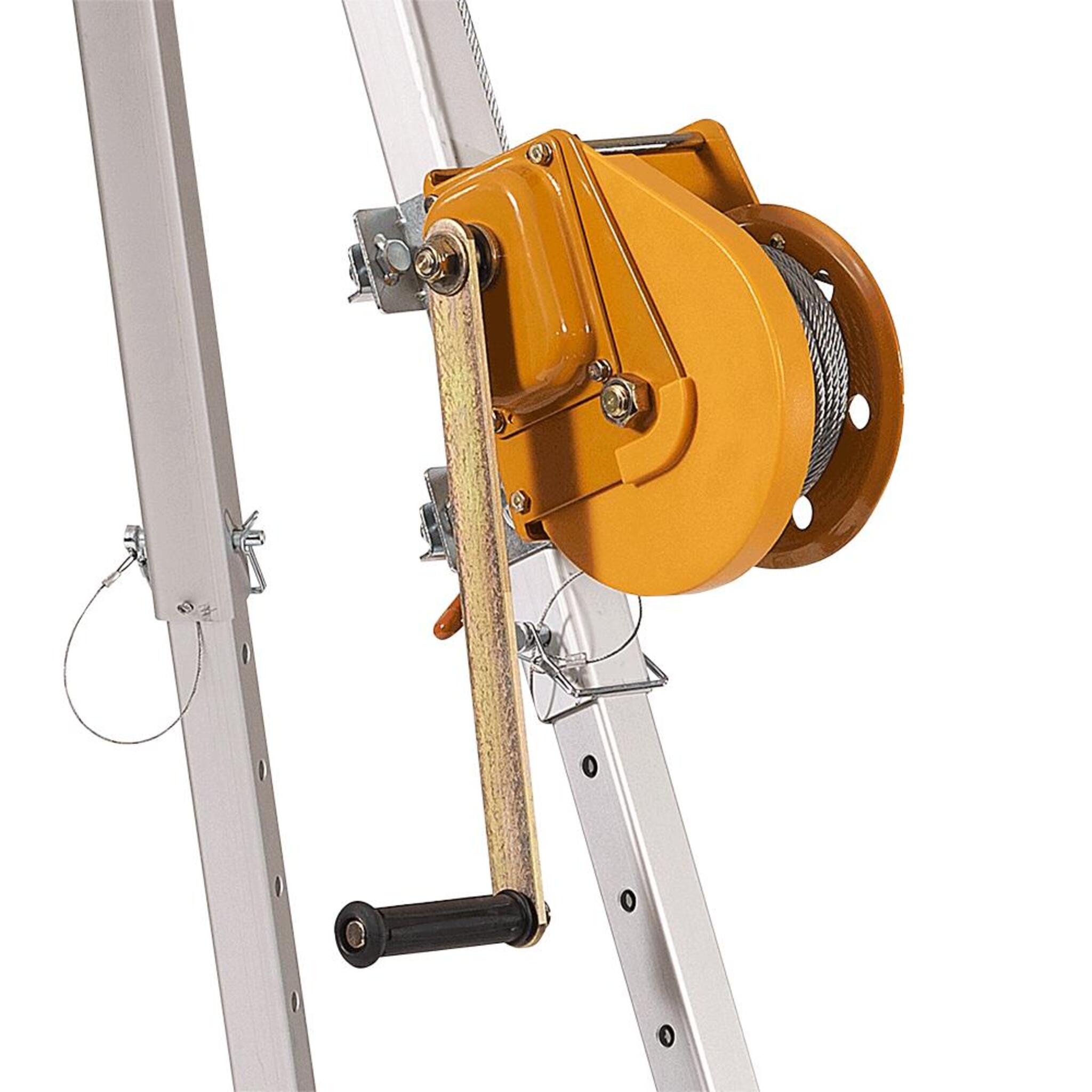

- MW-65G winch with 4:1 mechanical advantage retrieves workers at approximately 25 feet per minute as a non-entry rescue system

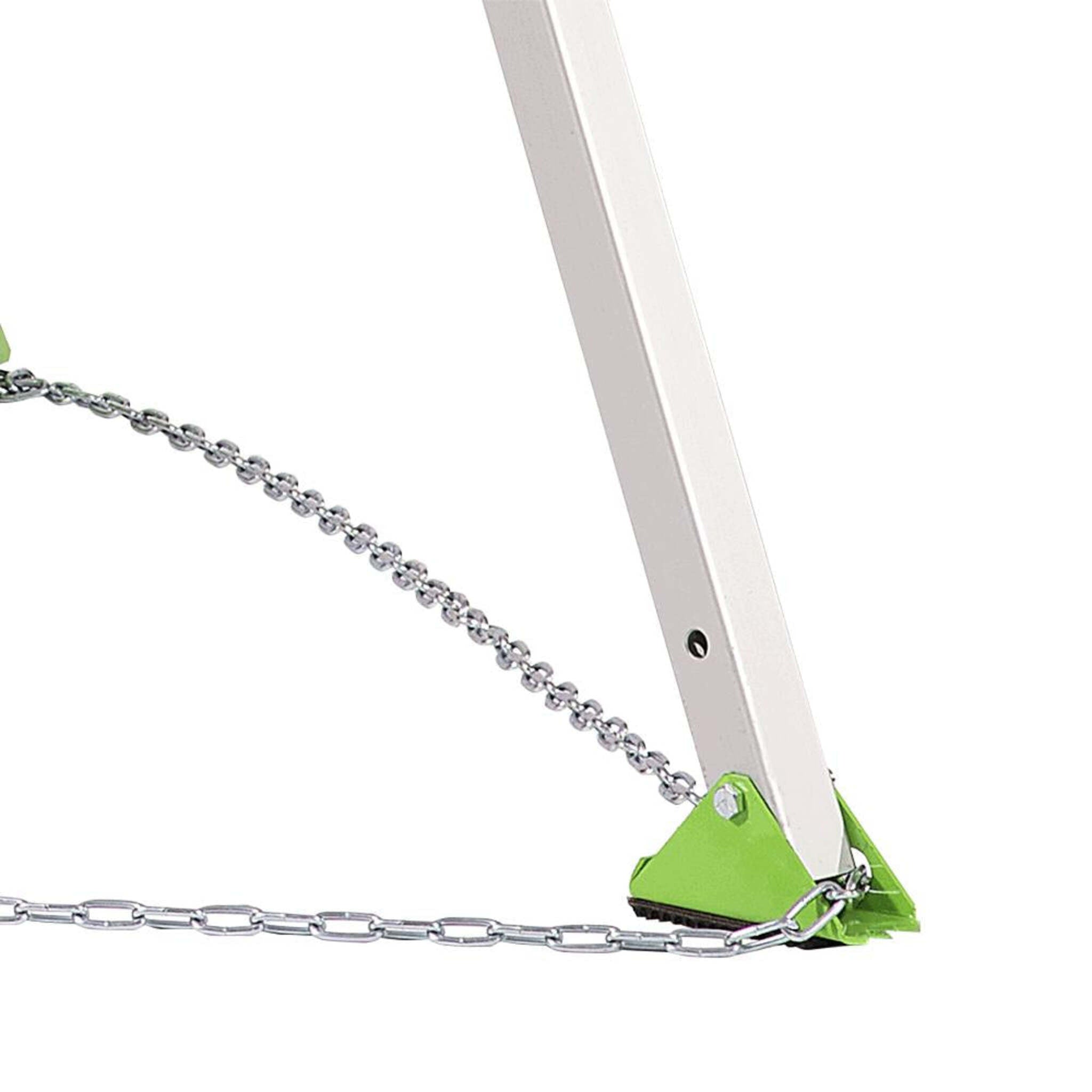

- Single-person setup with adjustable aluminum locking legs, non-slip rubber safety feet, safety chain, and two additional anchorage points
- Operates from -35°C to +35°C (-31°F to 95°F) for year-round use across Canadian and U.S. climates
- As CSA confined space equipment, certified to CSA Z259.15, ANSI Z359.18, ANSI A10.14, and OSHA requirements
Specifications
| Brand | Peakworks (a Surewerx brand) |
|---|---|
| Model | CSK3-60 |
| Product Number | V85026 |
| Kit Contents | TR-100 Tripod (V85011), SRL-53303 (V845534060), MW-65G Man Winch (V845179065), Carrying Bag (V860005) |
| Tripod Height | 7' (2 m), adjustable |
| Tripod Material | High-strength aluminum legs, steel feet with non-slip rubber bases |
| Tripod Features | Adjustable locking legs, safety chain, above-the-head pulley, 2 additional anchorage points on steel head |
| SRL Model | SRL-53303 (V845534060), 3-way recovery |

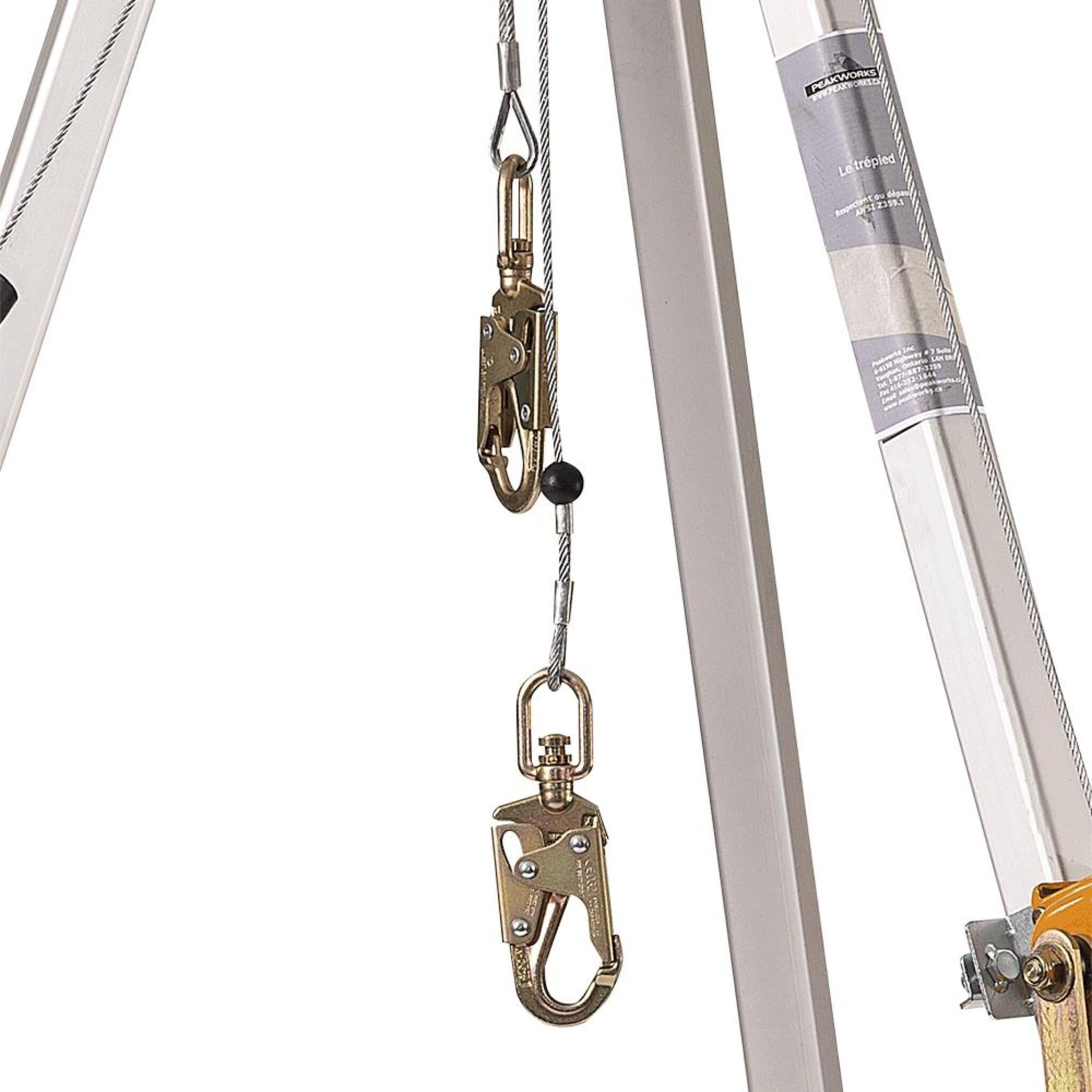

| SRL Cable | 60' (18 m) galvanized steel cable, steel swivel snaphook with load indicator |
| Winch Model | MW-65G (V845179065) |
| Winch Cable | 65' (20 m) galvanized wire rope, 3/16" (5 mm) diameter, swivel hook |
| Winch Mounting | Backplate with 4 bolts; carabiner and split pulley included |
| Mechanical Advantage | 4:1 |
| Retrieval Speed | Approximately 25 ft/min |
| System Capacity | 310 lb (141 kg) combined weight. Single-person rated. |
| Winch Cable Capacity | 300 lb (135 kg) |
| Anchorage Strength | 5,000 lbs (22 kN) static load |
| Operating Temperature | -35°C to +35°C (-31°F to 95°F) |
| Standards | CSA Z259.15, ANSI Z359.18, ANSI A10.14, OSHA, CE |
Applications
This confined space tripod kit with fall protection and rescue is used in:
- Municipal manholes and sewer access points
- Water and wastewater treatment tank hatches
- Underground utility vaults and chambers
- Industrial vessel entry for cleaning, coating, or equipment repair
- Storage tanks in oil, gas, and chemical processing facilities
- Construction excavations and deep foundation access points
- Any permit-required confined space where OSHA 1910.146 mandates a non-entry rescue system
Buy the Peakworks CSK3-60 Confined Space Rescue Kit Online from Cleanflow
The Peakworks CSK3-60 is the complete confined space entry kit in the Peakworks lineup, giving your operations a complete confined space rescue system with fall protection and rescue retrieval in one purchase. If you already have a separate fall arrest system and only need retrieval, the Peakworks CSK2-65 includes the same tripod and winch without the SRL.
Cleanflow Utility Supply Company is an authorized Peakworks distributor. This confined space rescue kit with tripod SRL and winch ships free from our Winnipeg warehouse across Canada and the USA. Returns are accepted within 30 days at returns.cleanflow.net. Call 1-866-335-1078 for product questions or bulk pricing. Cleanflow also carries other tripod and winch systems from Peakworks.
Frequently Asked Questions
What is included in a confined space entry kit?
A complete confined space entry kit includes a tripod for anchoring, a self-retracting lifeline for fall protection, and a man winch for rescue retrieval. The Peakworks CSK3-60 includes all three plus a carrying bag. Some kits only include one or two of these, so verify the contents match your entry program before purchasing.
Do I need both an SRL and a winch for confined space entry?
It depends on your entry program. OSHA 1910.146 requires a retrieval system (winch) and continuous fall protection (SRL or equivalent). The SRL provides automatic fall arrest if the worker falls during entry. The winch allows the attendant to retrieve an incapacitated worker without entering the space. Using both from a single tripod gives you a complete confined space rescue system that meets the non-entry rescue requirement.
What is the difference between the Peakworks CSK2-65 and CSK3-60?
The CSK2-65 includes the TR-100 tripod and 65-foot man winch but no SRL. The CSK3-60 adds a 60-foot 3-way self-retracting lifeline. Choose the CSK2-65 if you already own a separate fall arrest system. Choose the CSK3-60 if you need fall protection and rescue in one kit.
What is a non-entry rescue system?
A non-entry rescue system allows the attendant outside the confined space to retrieve an incapacitated worker without entering the space. The tripod-mounted winch is the retrieval device. OSHA requires this for all permit-required confined spaces. The CSK3-60 meets this requirement with the MW-65G man winch.
How does a 3-way SRL work for confined space rescue?
The SRL-53303 works as a standard self-retracting lifeline in normal operation, locking automatically if the worker falls. When switched to recovery mode, the attendant can winch the worker up manually. This gives a backup retrieval method in addition to the main MW-65G man winch.
Does this kit meet OSHA non-entry rescue requirements?
Yes. The Peakworks CSK3-60 meets OSHA 1910.146 for permit-required confined spaces. The MW-65G winch provides mechanical retrieval. The SRL-53303 provides continuous fall arrest. This CSA confined space equipment also meets CSA Z259.15 and ANSI Z359.18. Cleanflow carries confined space monitors and ventilation equipment for a complete entry program.
How does the Peakworks CSK3-60 compare to the FallTech 7509?
Both kits include a tripod, 3-way SRL, and man winch with similar weight capacities (310 lb). The FallTech 7509 uses an 8-foot tripod with 2-stage telescoping legs. The Peakworks CSK3-60 uses a 7-foot TR-100 with an above-the-head pulley for more headroom. The Peakworks system carries CSA and ANSI certification and ships from Cleanflow in Canada.
