Description

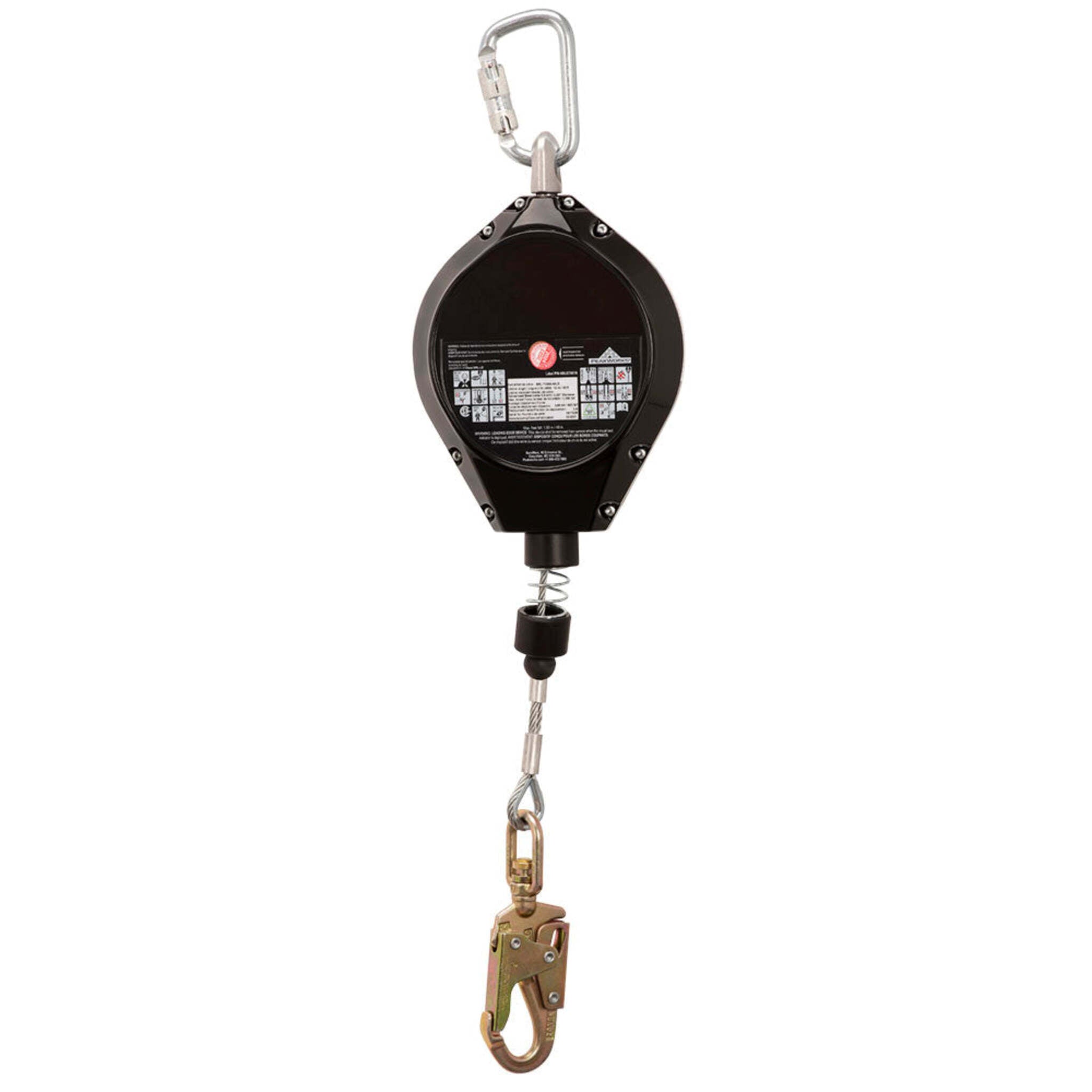

CSA Z259.2.2 Leading Edge SRL in 20, 40, and 60 ft Galvanized Steel Cable
Overview
The longer the self-retracting lifeline, the more fall clearance you need below the worker. This PeakWorks leading edge SRL is certified for both leading edge and overhead use in 20, 40, and 60 ft lengths. Crews on steel decks, open floors, and tower structures get CSA Z259.2.2 protection at working distances that standard SRLs cannot cover. Galvanized steel cable, aluminum housing, 310 lb capacity.
Specifications
All three variants share the following specs:
| Brand | PeakWorks (SureWerx) |
|---|---|
| Type | Leading edge self-retracting lifeline (SRL-LE) |
| Lifeline Material | Galvanized steel cable, 0.21 in (5.5 mm) |
| Housing | Aluminum (lightweight) |
| Capacity | 310 lb (141 kg) for 1 worker |
| Average Arrest Force | 4.12 kN (926 lbf) |
| Body Hook Type | Double-action locking snap hook with fall indicator |
| Anchor Hook | Steel carabiner with swivel eye |
| Leg Type | Single |
| Fall Arrest | Yes |
| Rescue / Recovery | No |
| Leading Edge (LE) | Yes |
| Vertical and Horizontal Use | Yes |
| Foot-Level Tie-Off | Tested and approved |
| Standards | CSA Z259.2.2-2017; ANSI Z359.14-2014, Class B |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Gate Opening | 3/4 in (19 mm) |
Available variants:
| SKU | Model | Length | Fall Clearance (LE) | Fall Clearance (non-LE) | Setback from Edge |
|---|---|---|---|---|---|
| V845633020LE | SRL-73302-20LE | 20 ft | 16 ft | 9 ft | 20 in (50 cm) |
| V845633040LE | SRL-73302-40LE | 40 ft | 16 ft | 9 ft | 20 in (50 cm) |
| V845633060LE | SRL-73302-60LE | 60 ft | 18.66 ft | 11.66 ft | 30 in (70 cm) |
Key Features
- CSA Z259.2.2 + ANSI Z359.14 Certified. Third-party certified for both leading edge and overhead applications. This leading edge self-retracting lifeline meets the latest CSA Z259.2.2-2017 standard and ANSI Z359.14-2014 Class B. All LE products are clearly marked to prevent confusion with standard SRLs.
- Foot-Level Tie-Off Approved. Tested and approved for use when the anchor point is at or below the worker's feet. This is critical on open steel decks and leading edge applications where overhead anchorage is not available.

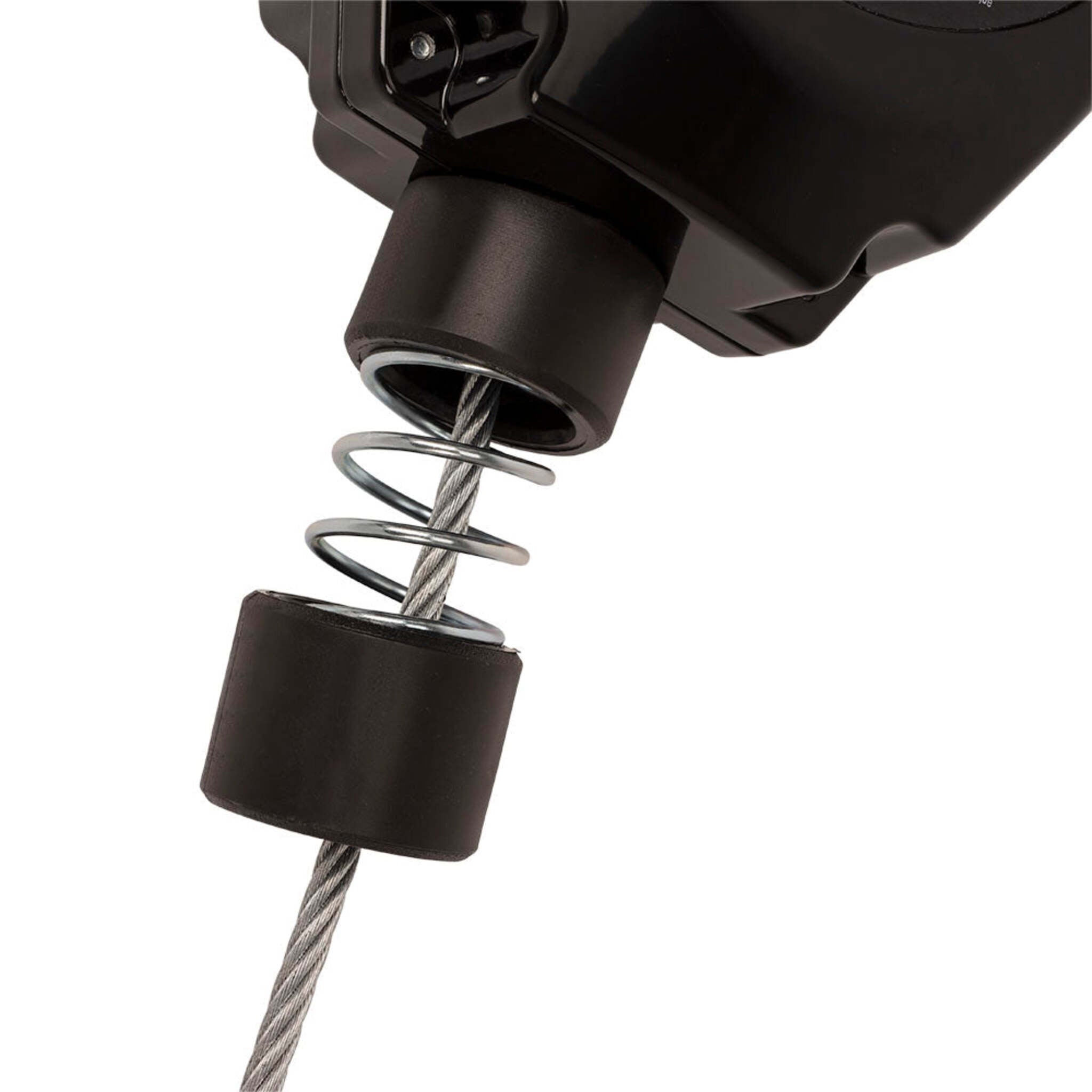

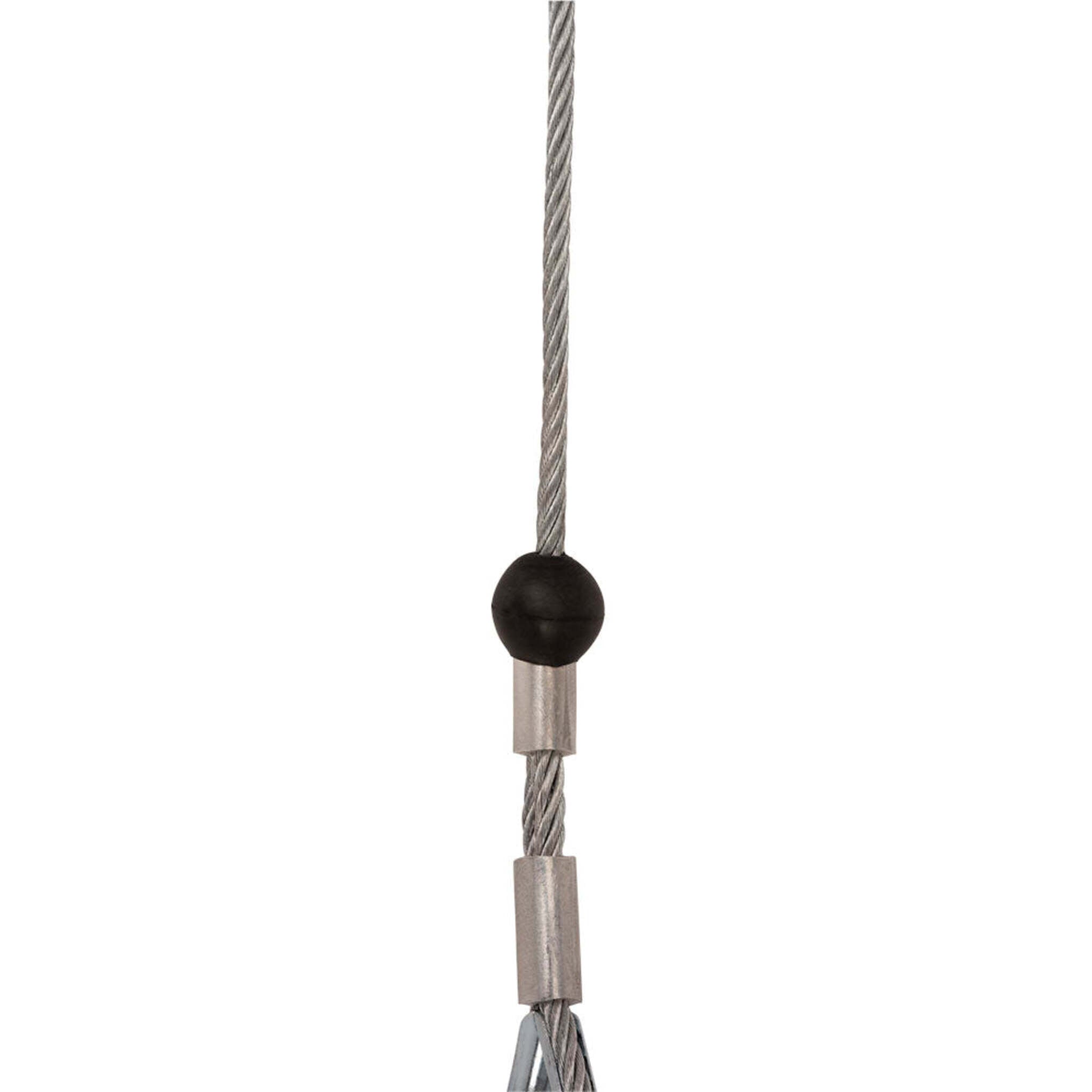

- Galvanized Steel Cable. The 0.21 in (5.5 mm) galvanized steel cable resists abrasion against sharp edges and rough surfaces that would cut through webbing. This is the lifeline material to choose when the cable may contact structural steel, concrete edges, or metal decking during a fall.

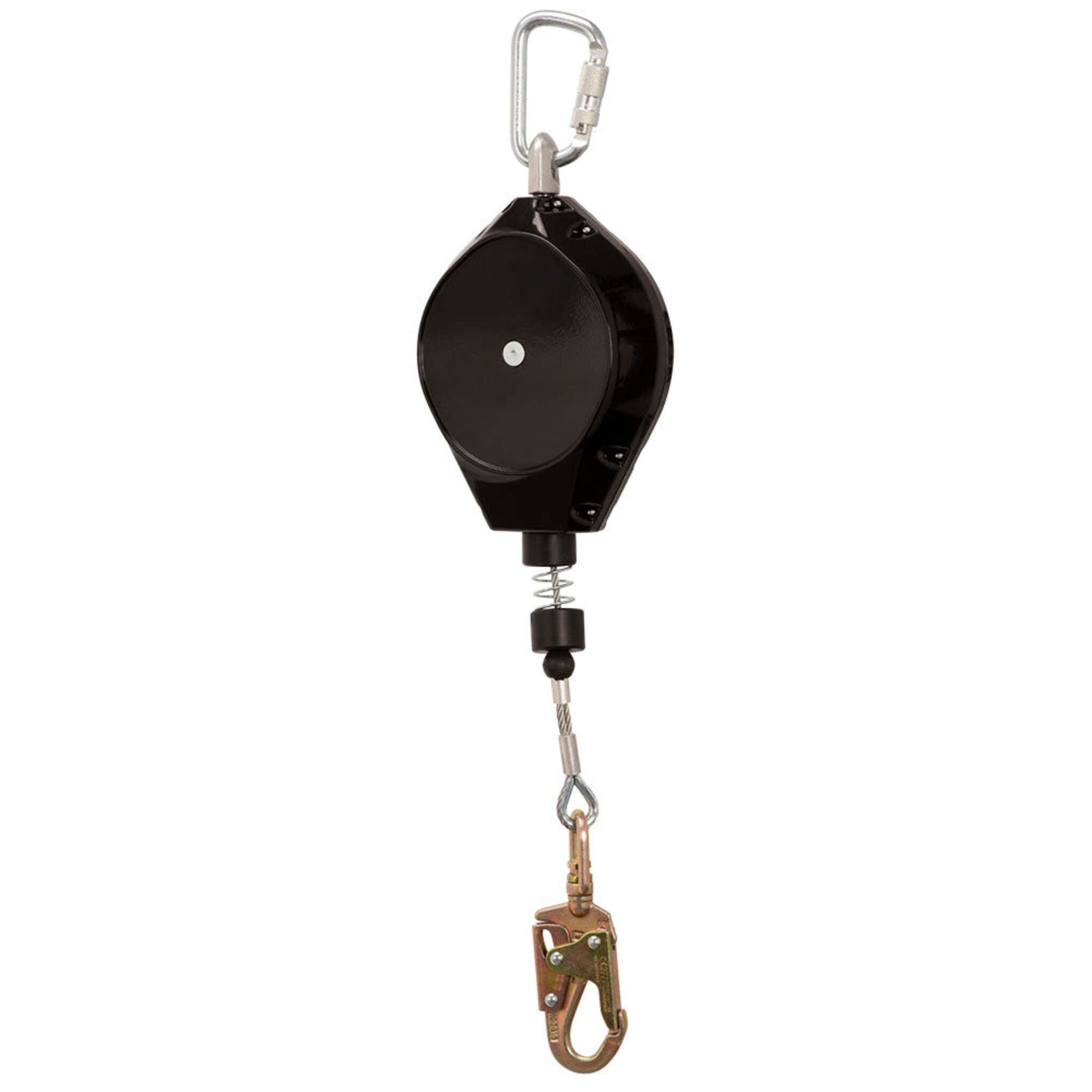

- Lightweight Aluminum Housing. The aluminum housing keeps weight down across all three lengths, allowing mounting directly on a worker's harness for better mobility and range of motion on open structures.

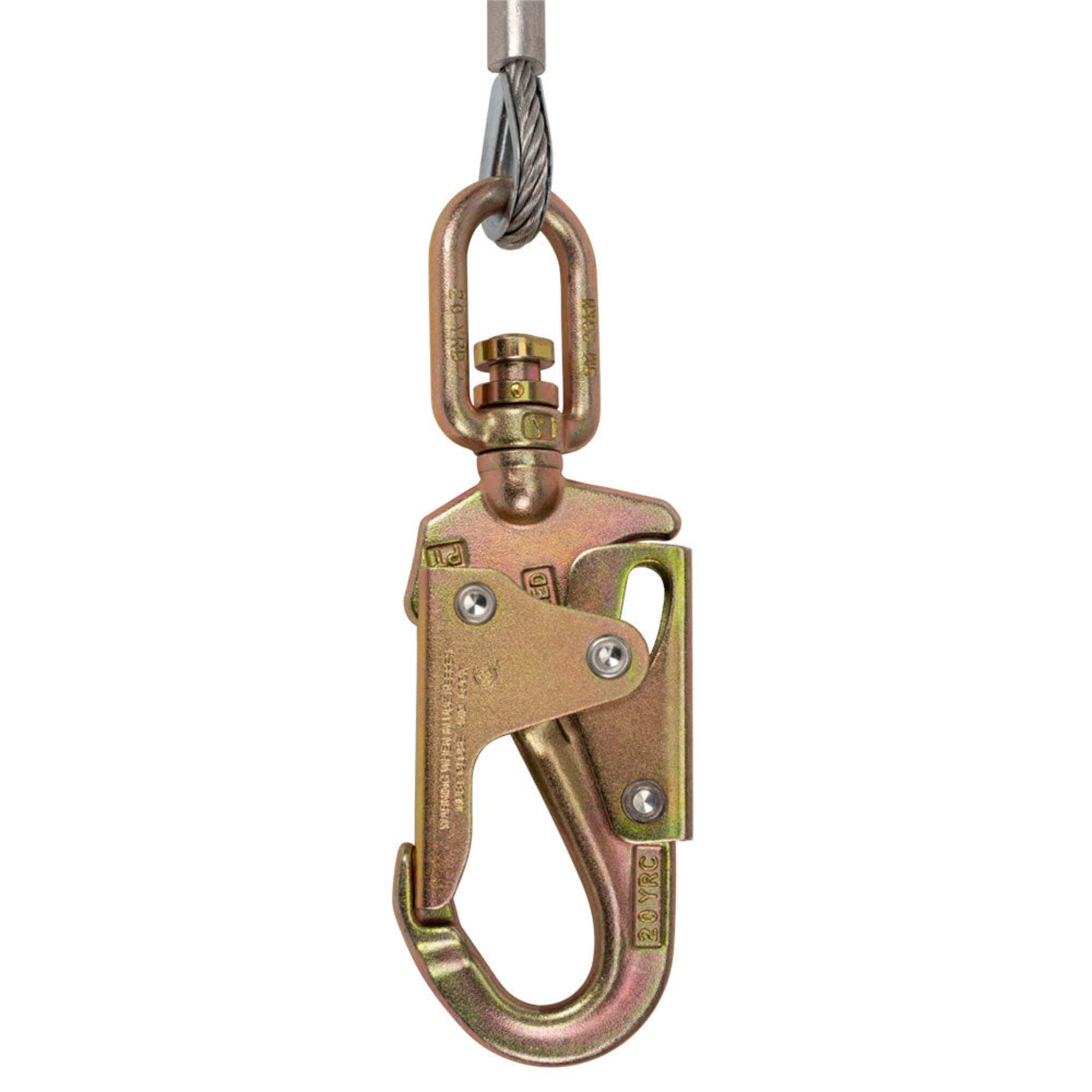

- Snap Hook with Fall Indicator. The double-action locking snap hook connects to the worker's fall arrest D-ring. A built-in fall indicator shows whether the unit has been deployed in a fall event and needs inspection before reuse.
- Swivel Eye Anchor Point. A heavy-duty swivel eye on the housing connects to the anchorage via a steel carabiner. The swivel prevents cable twisting during movement across the work area.
Fall Clearance by SRL Length
Fall clearance is the minimum distance needed below the worker's feet to arrest a fall before the worker contacts a lower level. It changes with SRL length and application type. Before selecting a leading edge self-retracting lifeline, verify that the available clearance at your site meets or exceeds these minimums:
| 20 ft SRL | 40 ft SRL | 60 ft SRL | |
|---|---|---|---|
| Leading Edge Application | 16 ft | 16 ft | 18.66 ft |
| Non-Leading Edge (overhead) | 9 ft | 9 ft | 11.66 ft |
| Max Deployment LE (foot level) | 104 in (2.64 m) | 57 in (1.44 m) | 85 in (2.16 m) |
| Max Deployment Overhead | 26 in (0.67 m) | 15 in (0.37 m) | 22 in (0.55 m) |
The 20 ft and 40 ft units require the same fall clearance (16 ft for LE, 9 ft for overhead). The 60 ft unit requires more clearance in both modes because of the longer cable pay-out before the brake engages. Always refer to the manufacturer data sheet for your specific SKU.
Applications
This PeakWorks leading edge SRL covers long-reach applications where the worker moves far from the anchor point near edges, openings, or elevated surfaces:
- Steel erection and iron work on open decks and unfinished floors
- Tower and telecom work where anchor points are above or at foot level
- Multi-story commercial construction near floor edges and elevator shafts
- Bridge construction and maintenance on open spans and decking
- Wind turbine installation and maintenance at height
- Industrial facility maintenance on rooftops, mezzanines, and catwalks
- Any leading edge or overhead fall arrest application paired with a PeakWorks fall protection harness
Buy PeakWorks Leading Edge SRL Online from Cleanflow
Cleanflow Utility Supply Company is an authorized PeakWorks distributor. This leading edge self-retracting lifeline ships across Canada and the USA with free shipping on orders over $199. One-year manufacturer warranty. Returns accepted within 30 days at returns.cleanflow.net. Call 1-866-335-1078 to confirm variant availability or discuss fall clearance requirements for your site.
Browse all fall protection equipment or see the full PeakWorks collection at Cleanflow.
Frequently Asked Questions
What is a leading edge self-retracting lifeline?
A leading edge SRL is certified for use near unprotected edges where the cable may contact a sharp surface during a fall. Standard SRLs are rated for overhead use only. This PeakWorks leading edge self-retracting lifeline meets CSA Z259.2.2 for both LE and overhead applications.
How much fall clearance does a 20 ft leading edge SRL need?
The PeakWorks 20 ft leading edge SRL requires 16 ft of fall clearance in leading edge applications and 9 ft in non-leading edge (overhead) applications. The 60 ft model requires 18.66 ft and 11.66 ft, respectively. Always verify clearance against the manufacturer data sheet before installation.
Can this SRL be used for foot-level tie-off?
Yes. All three variants (20, 40, and 60 ft) are tested and approved for foot-level tie-off. This means the anchor point can be at or below the worker's feet, which is common on open steel decks and leading edge applications where overhead anchorage is not available.
What is the difference between the 20, 40, and 60 ft PeakWorks leading edge SRL?
All three use the same galvanized steel cable, aluminum housing, and snap hook. The difference is working radius and fall clearance. The 20 ft and 40 ft need 16 ft of LE clearance. The 60 ft needs 18.66 ft. Choose the length that covers your working distance from the anchor.
