Description

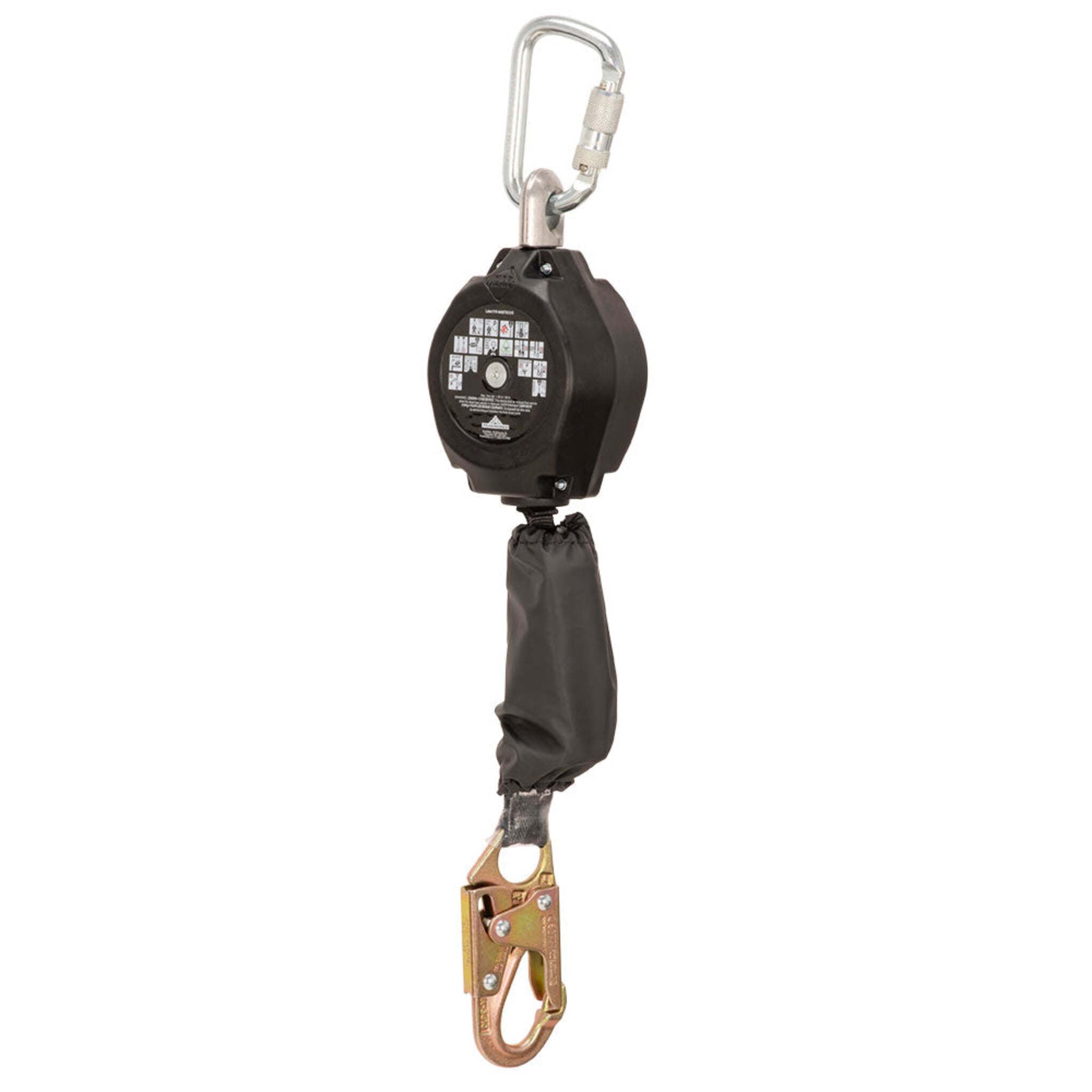

6 ft Dyneema Self-Retracting Lifeline for Leading Edge and Foot Level Tie-Off
Product Overview
A standard self-retracting lifeline is only rated for overhead anchors. When the anchor point drops to foot level or the line could run over a sharp edge during a fall, a standard SRL can fail. The PeakWorks leading edge SRL (V845622006LE) is a Dyneema self-retracting lifeline tested for both scenarios. It is third-party certified to CSA Z259.2.2-2017 for leading edge and overhead use.
Key Features and Benefits
- Dyneema webbing resists edge cuts. Dyneema is a high-strength polyethylene fiber that resists abrasion and cutting better than standard webbing. This 6 ft leading edge SRL uses Dyneema webbing that is 0.8 in wide and 0.07 in thick (20 mm x 1.75 mm), giving the lifeline the edge resistance that a leading edge self-retracting lifeline needs.
- Approved for foot level tie-off. Most SRLs require an overhead anchor. This foot level tie-off SRL is tested and approved for anchor points at or below the dorsal D-ring. An external shock pack absorbs the additional arrest energy that foot-level anchoring generates.
- Compact enough to mount directly on the harness. The aluminum housing and 6 ft Dyneema webbing keep the unit light enough to clip to the dorsal D-ring. That makes it a personal SRL for harness mount use, giving the worker more mobility than a fixed-point SRL mounted overhead.
- Sewn-in load indicator on the webbing. A visible indicator is sewn directly into the Dyneema webbing. If the lifeline has arrested a fall, the indicator shows it during pre-use inspection. The snap hook also has its own separate fall indicator for a second checkpoint.
- Made in Germany. Unlike the PeakWorks harnesses and kits (made in China), this PeakWorks leading edge SRL is manufactured in Germany. Average arrest force: 4.12 kN (926 lbf). Operating temperature range: -30°C to 50°C (-22°F to 122°F).
Fall Clearance Quick Reference
Before purchasing, verify that the site provides enough clear space below the work surface to arrest a fall safely. These clearance numbers come directly from the PeakWorks spec sheet for the V845622006LE:
- Overhead anchor (non-leading edge): 10 ft (3.048 m) minimum fall clearance. Max total arrest distance: 12 in (0.31 m). This applies when the anchor is above the dorsal D-ring and no edge contact is possible.
- Foot-level anchor (leading edge): 20 ft (6.096 m) minimum fall clearance. Minimum setback distance from edge: 12 in (30 cm). Max deployment at foot level: 48 in (1.20 m). This applies when the anchor is at or below the D-ring or the lifeline could contact a sharp edge.
If the site cannot provide 20 ft of clearance below the work level for leading edge applications, this SRL will not provide enough arrest distance. A longer SRL or a different fall protection method may be needed.
Specifications
| Brand | PeakWorks (by SureWerx) |
|---|---|
| Product Number | V845622006LE |
| Model Number | SRL-75105-6LE |
| Leading Edge Rated | Yes |
| Lifeline Material | Dyneema® Webbing |
| Lifeline Length | 6 ft (1.828 m) |
| Webbing Width | 0.8 in (20 mm) |
| Webbing Thickness | 0.07 in (1.75 mm) |
| Leg Type | Single |
| Housing Material | Aluminum |

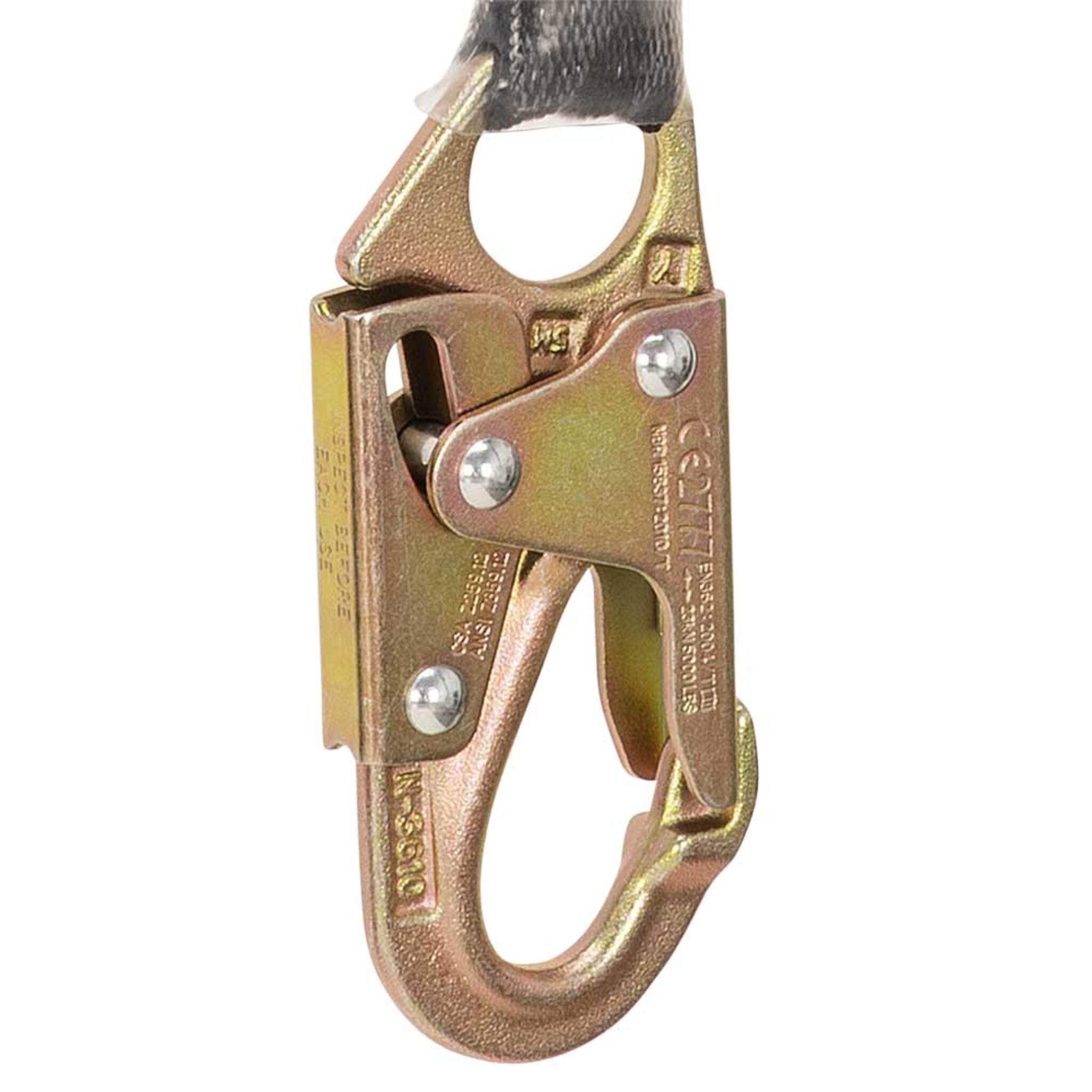

| Body Hook Type | Snap Hook with Fall Indicator |

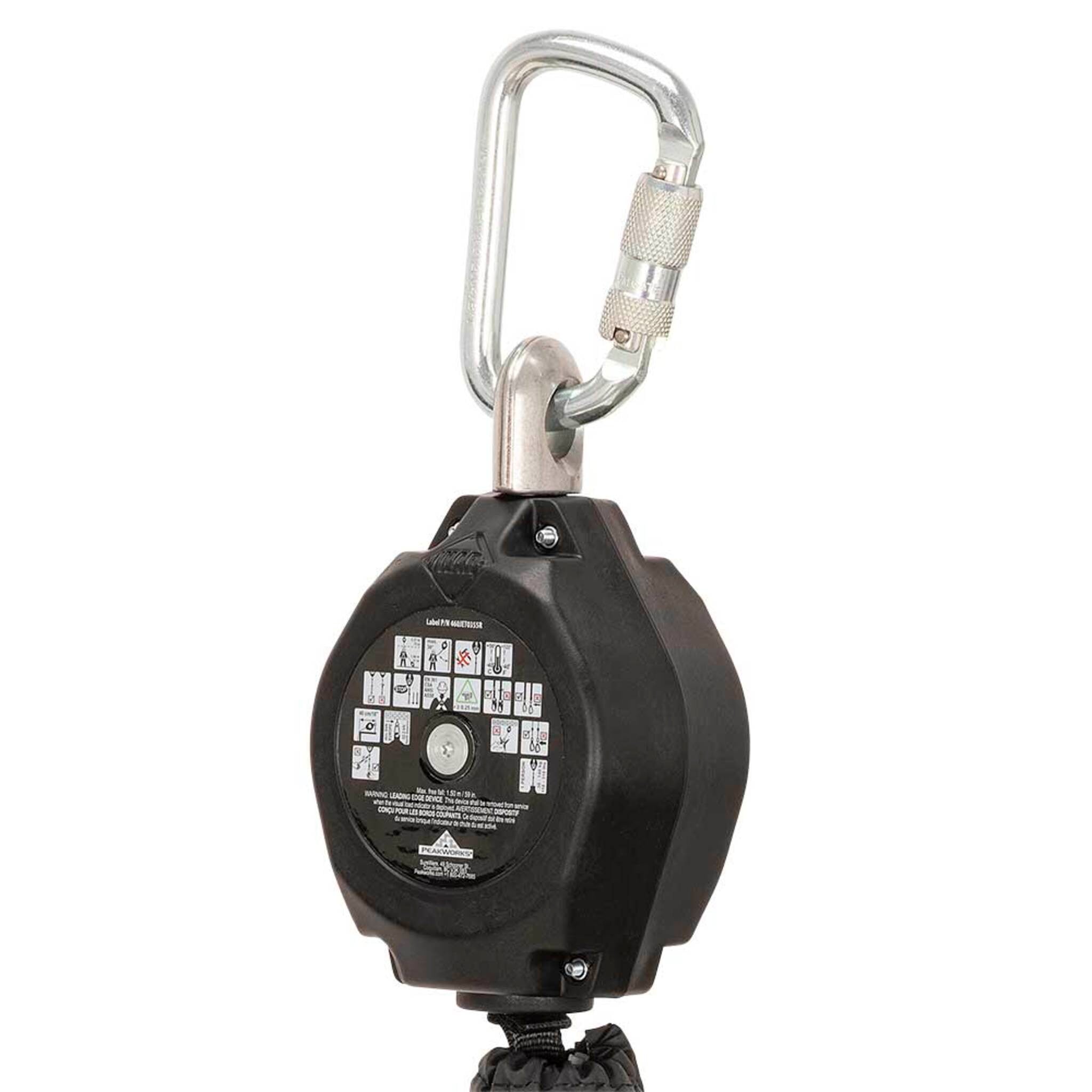

| Anchor Hook Type | Steel Carabiner with Swivel |
| Gate Opening | 3/4 in (19 mm) |
| External Shock Pack (LE) | Yes |
| Capacity | 310 lb (141 kg) |
| Average Arrest Force | 4.12 kN (926 lbf) |
| Class Type | B |
| Standards | CSA Z259.2.2-2017, ANSI Z359.14-2014 |
| Min Fall Clearance (Non-LE) | 10 ft (3.048 m) |
| Min Fall Clearance (LE) | 20 ft (6.096 m) |
| Max Total Arrest Distance | 12 in (0.31 m) |
| Min Setback from Edge (LE) | 12 in (30 cm) |
| Max Deployment, Foot Level (LE) | 48 in (1.20 m) |
| Max Deployment, Overhead | 12 in (0.31 m) |
| Rescue/Recovery | No |
| Sewn-In Indicator | Yes (on webbing) |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Warranty | 1 Year Limited Commercial Warranty |
| Country of Origin | Germany |
Applications
This PeakWorks leading edge SRL is a Dyneema self-retracting lifeline for sites where the anchor point is at or below the worker's D-ring, or where the lifeline could contact a sharp or abrasive surface during a fall. Cleanflow carries additional fall protection equipment including harnesses, lanyards, and anchor systems.
- Steel deck erection and metal roofing with foot-level anchors
- Concrete formwork near unprotected edges
- Precast concrete installation
- Leading edge roof work where lifeline could contact the edge
- Bridge and structural work with below-D-ring anchoring
- Industrial maintenance near sharp platform edges
Buy the PeakWorks Leading Edge SRL Online from Cleanflow
Cleanflow Utility Supply Company is an authorized PeakWorks distributor shipping across Canada and the United States. For foot-level tie-off and leading edge work, the V845622006LE is a Dyneema self-retracting lifeline made in Germany with CSA Z259.2.2 certification.
Browse the complete PeakWorks fall protection lineup on Cleanflow, or call 1-866-335-1078 for product questions and bulk pricing. Free shipping on orders over $199. 30-day returns at returns.cleanflow.net.
Frequently Asked Questions
What is a leading edge SRL?
A leading edge SRL is a self-retracting lifeline tested to withstand contact with a sharp edge during a fall. Standard SRLs are only rated for overhead anchors where no edge contact is possible. A leading edge self-retracting lifeline also handles foot-level tie-off, where the anchor is at or below the D-ring.
What is the difference between a Dyneema vs cable SRL?
Dyneema webbing is lighter and more flexible than galvanized steel cable, making it practical for personal harness-mounted use. Cable SRLs are heavier but offer longer lengths (10 ft and above) and more resistance to sustained abrasion in harsh industrial environments.
What is foot level tie-off?
Foot level tie-off means the anchor point is at or near the walking surface instead of overhead. This increases free-fall distance before the SRL engages. Only SRLs tested and approved as a foot level tie-off SRL should be used in this configuration.
How much fall clearance do I need for a leading edge SRL?
For the PeakWorks SRL-75105-6LE, the minimum fall clearance is 10 ft for overhead (non-LE) anchoring and 20 ft for leading edge (foot-level) anchoring. The minimum setback distance from the edge is 12 in. These numbers come from the PeakWorks spec sheet.
Can an SRL be mounted on a harness?
Yes. This 6 ft leading edge SRL is light enough to clip directly to the dorsal D-ring on a fall arrest harness. Workers who carry the SRL on their body can move between anchor points without disconnecting, which is what makes a personal SRL for harness mount use practical on open decks and roofs.
