Reed CP15MHRA Motor Housing Assembly for CP15 Pump Stick, Complete Replacement Kit for Quick Field Installation

Pump Stick Motor Housing Replacement Kit with 18V DC Motor and Stabilizer

Product Overview

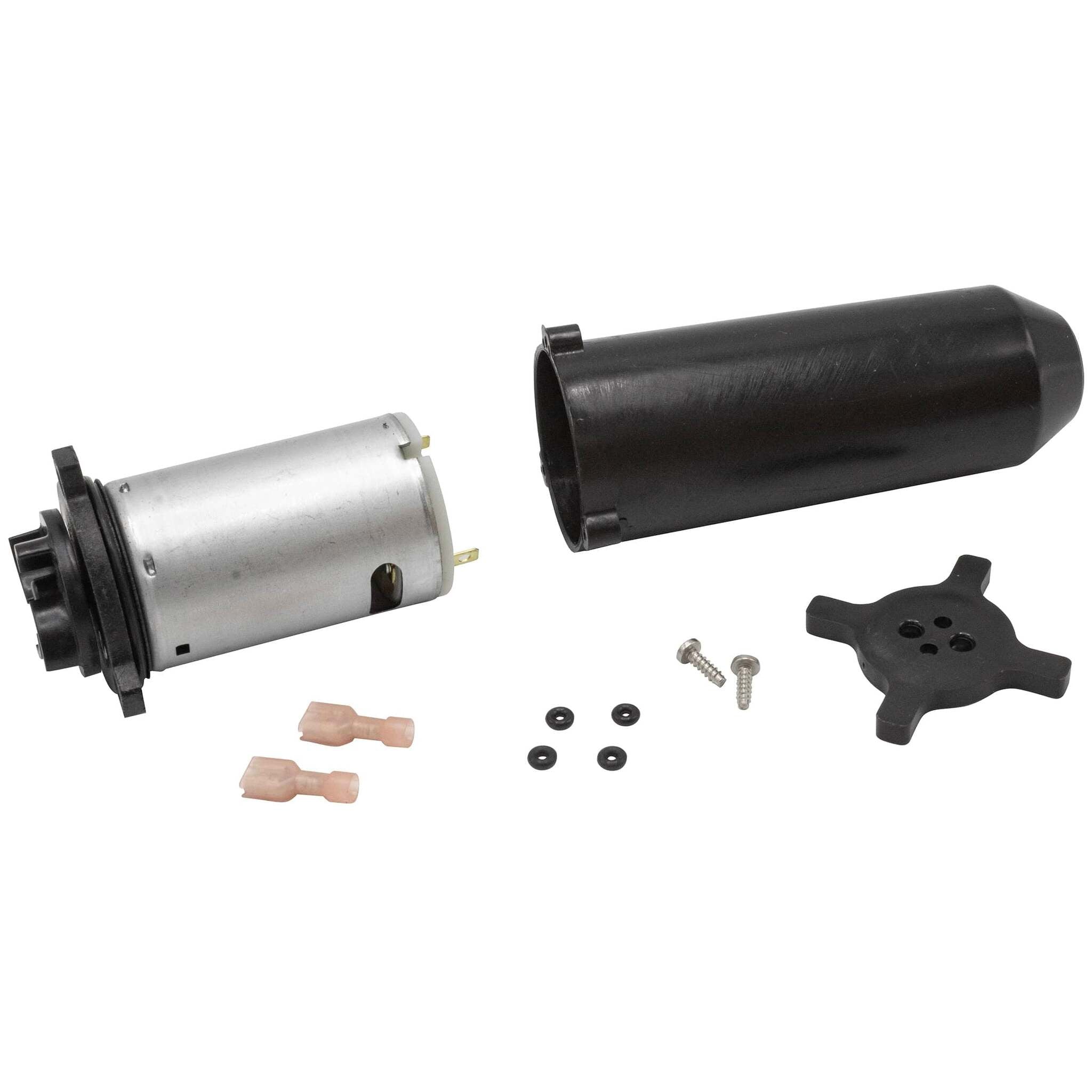

The Reed CP15MHRA motor housing assembly ships with six components: an 18V DC motor, motor housing, motor stabilizer, four O-rings, two wire connectors, and two screws. This pump stick motor housing replacement kit replaces both the motor and the housing in one purchase. Reed recommends it for any CP15 Pump Stick with a damaged housing or a pre-2023 unit that needs the updated motor stabilizer.

Key Features and Benefits

• The Reed CP15MHRA motor housing assembly includes a motor, motor housing, motor stabilizer, O-rings, wire connectors, and pan head screws. This 18V DC pump motor and housing kit provides every component needed to rebuild the pump end of a CP15 Pump Stick without ordering parts separately.
• The kit includes the current-production Reed Pump Stick motor stabilizer, which Reed recommends for all CP15 units sold before 2023. Ordering the CP15MHRA is the simplest path to a Reed Pump Stick pre-2023 motor stabilizer upgrade because the stabilizer, motor, and housing arrive together in one box.
• Every component ships ready for on-site installation, turning a pump stick motor housing replacement kit into a same-day field repair. For cordless pump motor housing repair on remote sites without power, the CP15MHRA keeps the CP15 running on battery power without generator hookups or extension cords.
• The CP15MHRA fits all CP15 Pump Stick models, including the CP15-38, CP15-38B, and CP15-38E. One kit covers CP15 motor housing replacement across the entire product line with no adapters or modifications needed.
• The Reed CP15MHRA vs CP15RM difference comes down to how deep the damage goes. The CP15RM Motor Assembly replaces the motor, motor mount, and impeller when the housing is intact. The CP15MHRA replaces the motor, housing, stabilizer, and wiring hardware when the housing is also damaged, or the unit needs the stabilizer update.

Installation Notes

Anyone learning how to replace the pump stick motor housing on a CP15 should expect a 17-step procedure that goes beyond a basic motor swap. The process covers housing disassembly, wire routing through the new motor stabilizer, O-ring placement into the housing counter bores, terminal crimping, and a counterclockwise motor rotation check at the end. Wire strippers and a crimping tool are required alongside basic hand tools. Reed includes illustrated step-by-step instructions with diagrams in every CP15MHRA kit.

Specifications

The table below lists verified specifications for the CP15 motor housing replacement kit, sourced from Reed Manufacturing documentation.

Applications

The CP15MHRA is the correct part when the motor-only CP15RM is not enough. Two situations call for the full housing kit:

• Housing damaged by impact or wear. Cracks, warping, or chips on the motor housing mean the motor cannot seat properly. A pump stick motor housing damaged by a drop or extended use needs both the motor and housing replaced together. The pump stick complete motor rebuild kit handles both in one order.
• Pre-2023 units needing the stabilizer update. Reed recommends the updated Reed Pump Stick motor stabilizer for all CP15 units sold before 2023. The CP15MHRA includes the current-production stabilizer alongside the motor and housing, so one kit covers both upgrades.

For cordless pump motor housing repair across multiple CP15 units, stock this pump stick motor housing replacement kit alongside the CP15RM Motor Assembly to cover both housing-level and motor-only failures.

Buy Reed CP15MHRA Motor Housing Assembly Online from Cleanflow

Cleanflow Utility Supply Company is the authorized Reed dealer for pump tools and Pump Stick replacement parts across Canada and the USA. The Reed CP15MHRA motor housing assembly ships with free shipping on orders over $199. This 18V DC pump motor and housing kit is in stock and ships to job sites across both countries.

Cleanflow stocks the full Reed lineup of Pump Stick accessories, from motors and housings to batteries, chargers, stands, and carrying cases. Browse all dewatering pumps and pump accessories for complete job-site setups. Crews ordering multiple kits for fleet maintenance receive volume discounts starting at 5% off for three or more. For questions about this product, compatibility, or to set up a net-terms account, email info@cleanflow.ca.

Frequently Asked Questions
