Description

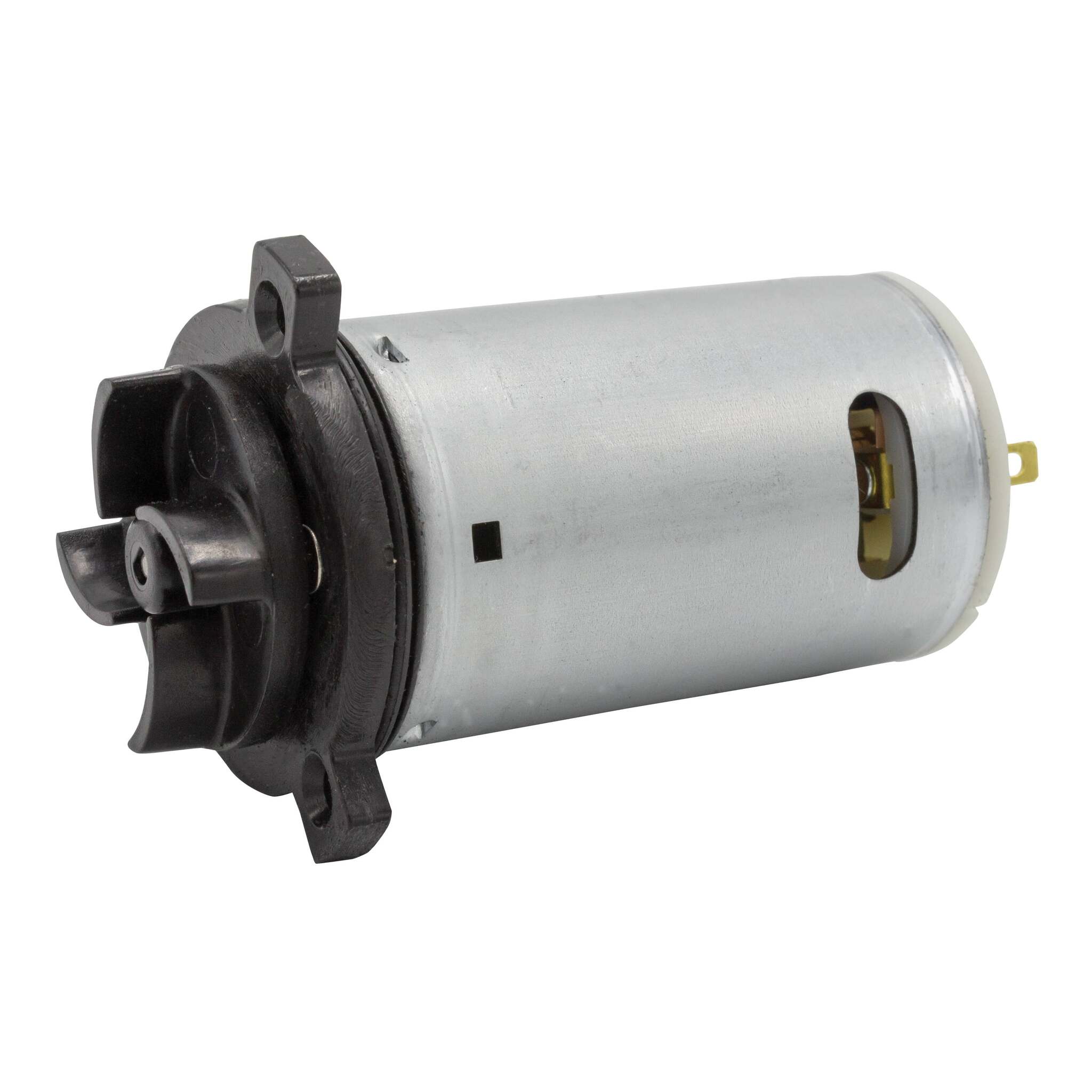

18V DC Pump Stick Replacement Motor Assembly with Motor, Mount, and Impeller
Product Overview
When a pump stick motor is not working, the job stops. The Reed CP15RM replacement motor gets the CP15 back to full output without replacing the entire pump. This pump stick replacement motor assembly ships with an 18V DC motor, motor mount with screws, and impeller. All three components install in the field with basic hand tools and fit every CP15 model.
Key Features and Benefits
- The Reed CP15RM replacement motor kit ships with three components: one 18V DC motor, one motor mount with mounting screws, and one impeller. Together, these three parts form the complete CP15 pump motor assembly needed to restore pumping capacity.
- This pump stick replacement motor assembly fits all CP15 Pump Stick configurations, including the CP15-38, CP15-38B, and CP15-38E. No adapters, wiring changes, or modifications are needed.
- The motor swaps out in the field: disconnect the battery, remove the housing screws, lift the old motor out, set the new assembly into the housing, and reattach. A cordless water pump replacement motor that installs on site keeps the pump out of service for minutes, not days.
- At 0.54 lbs (0.25 kg), the complete kit fits in a toolbox or truck compartment as a ready spare. Crews running multiple CP15 units can stock one 18V DC pump motor replacement per pump to cut unplanned downtime on dewatering jobs.
- If the motor has failed but the housing is undamaged, the CP15RM is the correct part. If the housing is also cracked or the pump was manufactured before 2023 and needs the updated motor stabilizer, the CP15MHRA Motor Housing Assembly covers both the motor and housing in a single kit.
Installation Notes
Reed Pump Stick motor replacement takes under ten minutes with basic hand tools. The procedure follows a clear sequence: remove the battery, unscrew the housing fasteners, lift out the old motor assembly, position the new motor mount into the housing, seat the impeller onto the motor shaft, and secure the housing back together. Detailed step-by-step instructions with diagrams ship inside every CP15RM kit.
Specifications
The table below lists the verified specifications for the CP15 pump motor assembly, sourced from Reed Manufacturing documentation.
| Specification | Detail |
|---|---|
| Catalog Number | CP15RM |
| Item Code | 08142 |
| Kit Contents | (1) 18V DC Motor, (1) Motor Mount with Screws, (1) Impeller |
| Motor Voltage | 18V DC |
| Weight | 0.54 lbs (0.25 kg) |
| Compatible Models | All CP15 Pump Stick models (CP15-38, CP15-38B, CP15-38E) |
| Patent Status | Patent Pending |
| Related Replacement Kit | CP15MHRA Motor Housing Assembly (Item Code 98199, includes motor housing and motor stabilizer) |
| Manufacturer | Reed Manufacturing, Erie, PA (est. 1896) |
How to Keep On Pumping: Step-by-Step Instructions
- Remove the end cap and screen to access the internal components.
- Take out the spacer to expose the motor unit.
- Pull the motor housing until the wires are taut.
- Unscrew and remove the three screws from the flanges of the damaged motor unit.
- Disconnect and discard the old motor unit.
- Connect the terminals to the new motor (red wire to the red-dot terminal).
- Insert and secure the new motor unit with the three included screws.
- Re-insert the spacer, aligning the three slots with the flanges.
- Replace the screen and end cap—your pump is ready to go!
Applications
The motor is a wear item on any CP15 Pump Stick. When the pump stops or loses flow, a pump stick replacement motor assembly is the first part to check. Replacing the motor restores full output for a fraction of the cost of a new pump. Crews running multiple CP15 units can stock pump stick repair parts to avoid mid-job supply runs.
Reed Pump Stick motor replacement covers every model in the CP15 line. If the housing is cracked or the unit was built before the 2023 motor stabilizer update, the CP15MHRA Motor Housing Assembly is the right part instead. A cordless water pump replacement motor keeps the CP15 running on remote sites without generator hookups or extension cords.
For a full list of Reed Pump Stick replacement parts, see the Reed collection on Cleanflow.
Buy Reed CP15RM Replacement Motor Online from Cleanflow
Cleanflow Utility Supply Company is the authorized Reed dealer for pump tools and pump stick repair parts across Canada and the USA. The Reed CP15RM replacement motor ships with free shipping on orders over $199. Crews ordering multiple units for fleet maintenance receive volume discounts starting at 5% off for three or more.
Cleanflow stocks the full Reed lineup of Pump Stick accessories, from the pump stick replacement motor assembly to hoses, battery adapters, stands, and carrying cases. For questions about this product, compatibility, or to set up a net-terms account, email info@cleanflow.ca.
Frequently Asked Questions
What is included in the Reed CP15RM replacement kit?
The kit ships with three components: one 18V DC motor, one motor mount with mounting screws, and one impeller. Step-by-step installation instructions with diagrams are also included. No specialized tools are required beyond basic hand tools.
How to replace the motor on a Reed Pump Stick
Remove the battery, unscrew the housing fasteners, and lift out the old motor assembly. Set the new CP15RM motor into the housing, attach the motor mount, seat the impeller onto the shaft, and reassemble. The full procedure takes under ten minutes.
What is the difference between the CP15RM and CP15MHRA?
The Reed CP15RM and CP15MHRA differ in scope. The CP15RM includes the motor, motor mount, and impeller. The CP15MHRA adds the motor housing and an updated motor stabilizer. Order the CP15RM when the motor has failed but the housing is intact, and the CP15MHRA when the housing is also damaged.
Can a CP15RM motor fix a Pump Stick that lost pumping power?
Reduced flow or intermittent shutoffs often point to a worn motor. The CP15RM replaces the motor, motor mount, and impeller in one kit, restoring factory pumping capacity. If flow does not return, check hose connections and the screen filter for blockages before ordering other Pump Stick repair parts.
Is the Reed CP15RM compatible with all Pump Stick models?
The CP15RM fits every model in the CP15 Pump Stick line, including the CP15-38, CP15-38B, and CP15-38E. This 18V DC pump motor replacement uses the same mounting pattern and impeller size across all configurations, so one kit covers the entire range.
