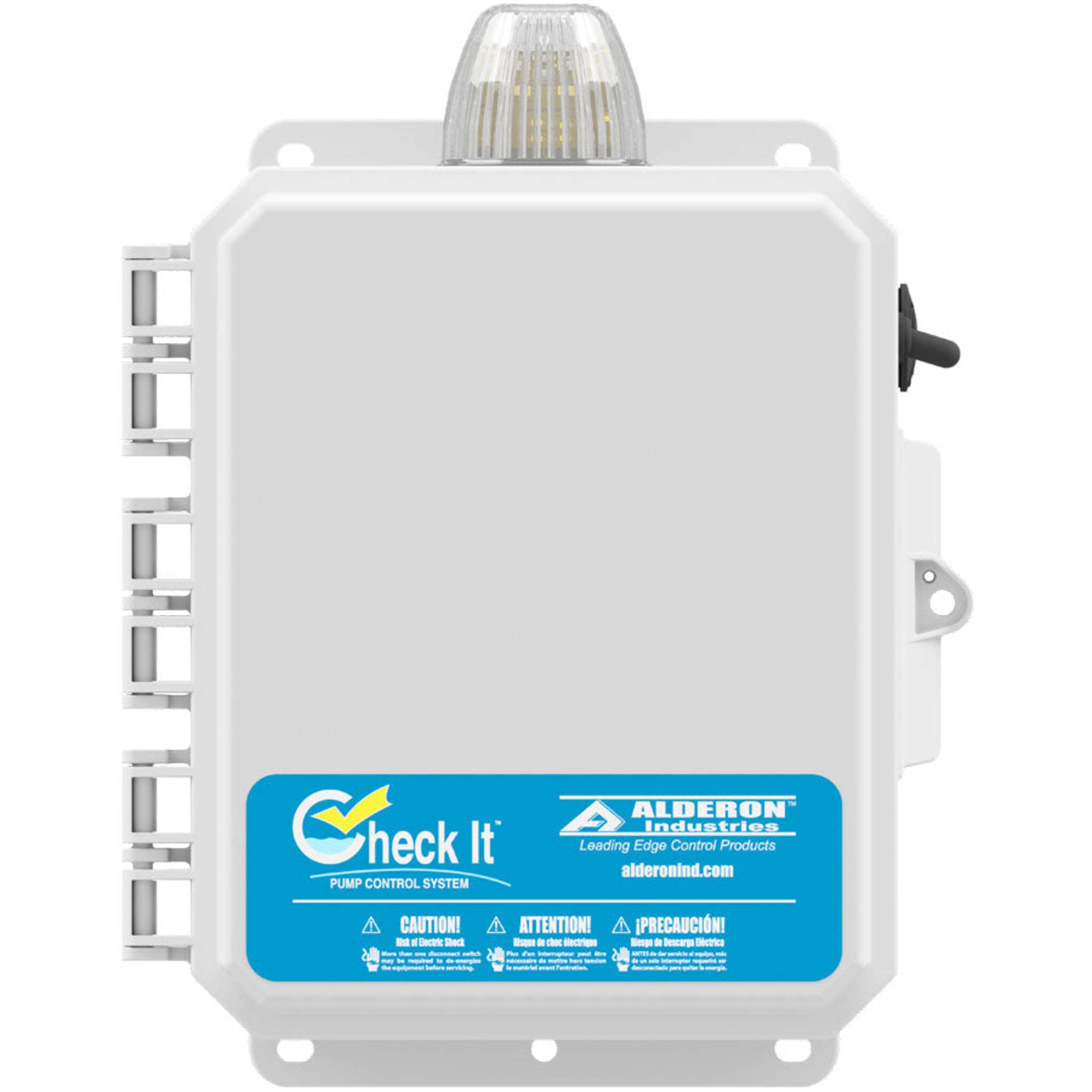

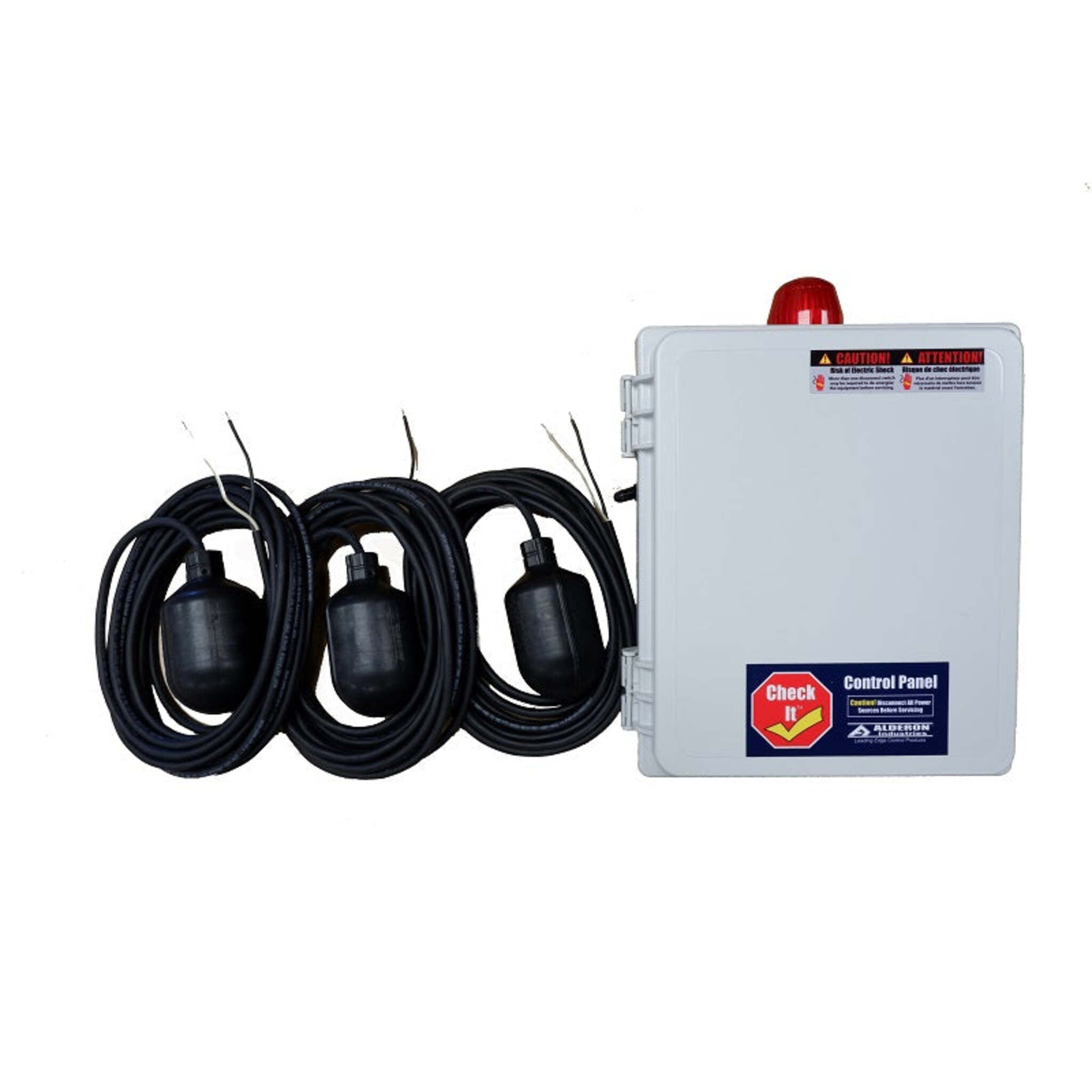

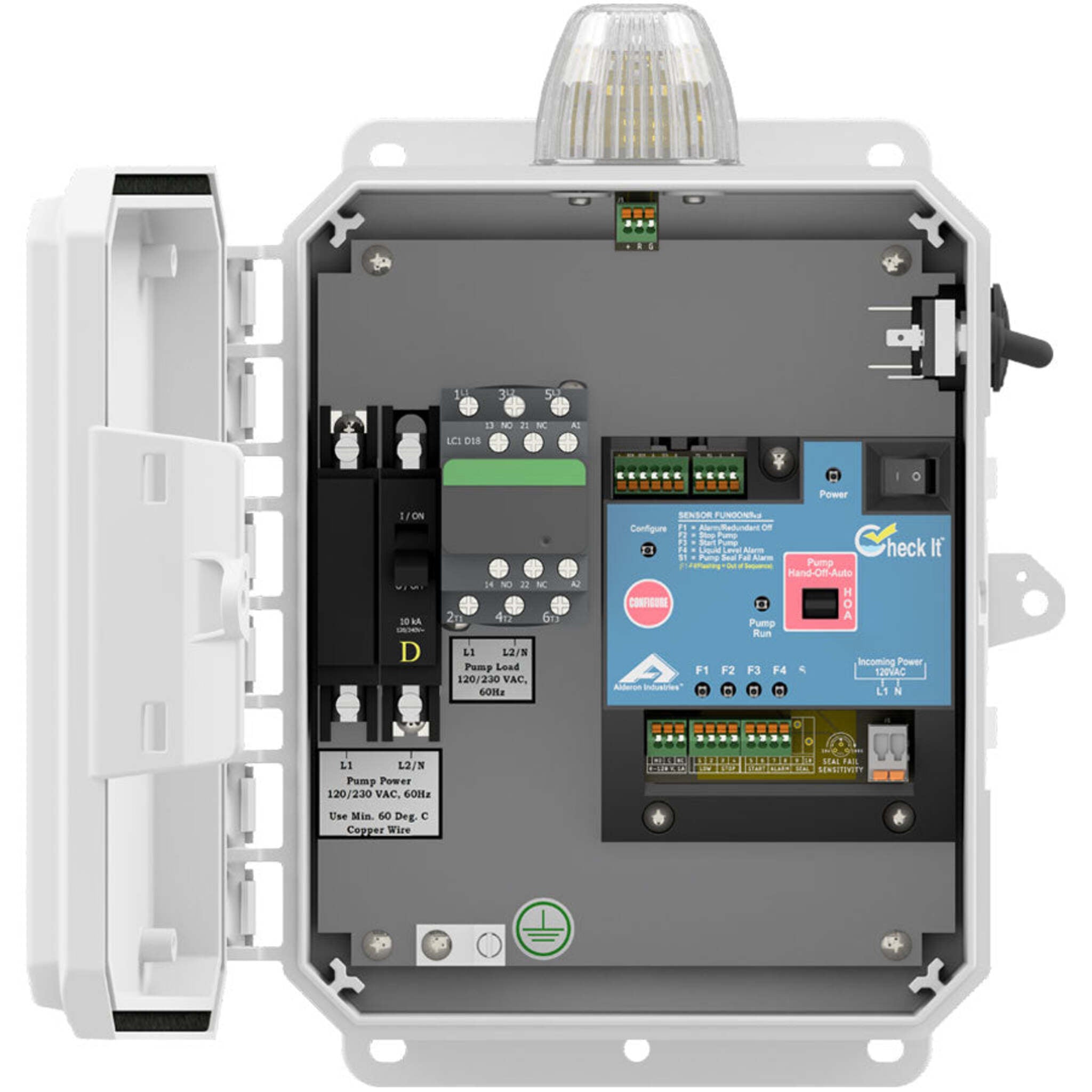

Alderon Check It™ Single Phase Simplex Pump Control Panel with Lightning and Surge Protection - Includes 3 Floats

Alderon Check It Simplex Control Panel

Upgrade your pump system with the state-of-the-art Check It Single Phase Simplex Control Panel, designed to provide optimal performance and maximum efficiency. This versatile control panel offers easy-to-use features and superior protection with lightning and surge protection. Its Type 4X rated enclosure ensures durability and reliability for both indoor and outdoor applications.

Key Features of the Simplex Panel:

• Type 4X Enclosure: Suitable for indoor and outdoor use with padlockable opaque door and top-mounted beacon for added security.
• Multi-Color LED Beacon: Provides clear status indication with green (normal), flashing green (pump running), flashing amber (HOA off), and flashing red (high/low alarm level) lights.
• Status LEDs: Monitor power, pump run, float activation, and optional seal fail with ease.
• Advanced Protection: Automatic resettable alarm and control fuses with built-in PCB lightning and surge protection.
• Configurable Settings: Easily adjust settings for sensor error input, alarm reset, redundant start, system normal beacon, and seal fail pump stop.

• Sensor Options: Accommodates up to 4 digital inputs and features automatic low alarm enable.
• Dry Contacts Included: NO/NC contacts for general alarm and power loss.

Operate the Check It Simplex Panel Effortlessly:

• Hand-Off-Auto Switch: Off reminder with yellow flashing beacon.
• Check It Test/Configure Button: Activate test routine, clear alarms, and enable configuration settings.
• Exterior Test Switch: Test beacon and buzzer or clear all alarms with a simple activation.

Upgrade your pump management

The Check It Single Phase Simplex Control Panel is the ultimate solution for pump system management, offering advanced features, user-friendly operation, and reliable performance. Improve your system today with this cutting-edge control panel and experience the difference in efficiency and ease of use.
