Description

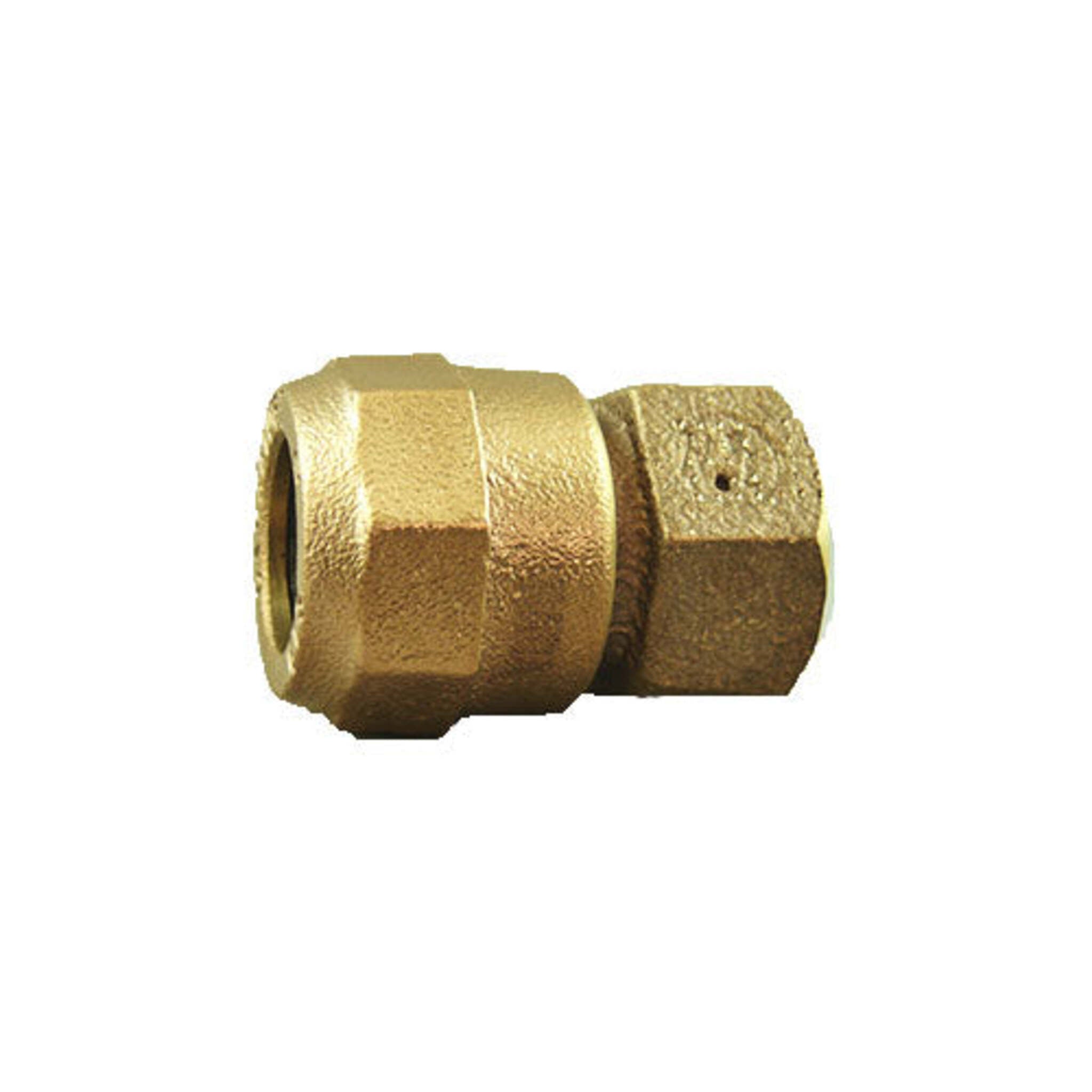

Brass CTS x FIP Adapter for Copper, Poly and PEX Water Lines
Product Overview
Use this CTS female adapter when a water service pipe needs to connect to a male pipe thread, like a valve or a threaded nipple. One end grips copper, CTS poly or PEX pipe with no soldering. The other end has female threads (FIP). It is made for cold water service lines, including buried lines.
Key Features and Benefits
- Fits three common service pipes: copper type K or L, CTS poly and PEX, which share the same outside size.
- Needs no soldering or glue, because tightening the nut presses a rubber seal and a stainless steel grip ring onto the pipe.
- The female thread end screws onto any male pipe thread of the same size.
- Made of no-lead brass that meets NSF/ANSI 61 and 372 for drinking water.
- Rated for 300 PSI working pressure and made to AWWA C800, the standard for water service fittings.
Which CTS Female Adapter Size Do You Need?
Both ends are the same size. Measure the outside diameter (OD) of your pipe and match it to the table.
- Copper, CTS poly, or PEX pipe: this adapter fits.
- PVC or IPS poly pipe: the pipe is bigger, so use the IPS compression x FPT adapter.
- Need a male thread instead: use the CTS compression male adapter.
| Size | Pipe OD | Length | Weight |
|---|---|---|---|
| 3/4" | 0.875" | 1.65" | 0.8 lb |
| 1" | 1.125" | 1.84" | 1.2 lb |
| 1-1/4" | 1.375" | 2.48" | 2.0 lb |
| 1-1/2" | 1.625" | 2.77" | 2.3 lb |
| 2" | 2.125" | 2.70" | 3.1 lb |
How to Install a CTS Female Adapter
- Pipe end: Cut the pipe square with a tube cutter, not a hacksaw. Put an insert stiffener in a poly or PEX pipe (CTS insert stiffeners for 3/4" and 1" pipe), push the pipe in all the way, and tighten the nut until it stops.
- Thread end: Put pipe sealant or PTFE tape on the male thread. Turn the adapter only on its flat sides with a smooth-jawed wrench.
- Before burying: Pressure test the line and keep water from freezing inside the fitting.
Technical Specifications
| Specification | Details |
|---|---|
| Brand and series | Cambridge Brass 117NL |
| Connections | CTS compression x female pipe thread (FIP, also called FPT or FNPT) |
| Sizes | 3/4", 1", 1-1/4", 1-1/2", 2" (same size both ends) |
| Fits pipe | Copper type K or L; CTS polyethylene SDR 9; PEX SDR 9; polybutylene SDR 9 |
| Pressure rating | 300 PSI working pressure |
| Body | No-lead brass |
| Seal | EPDM rubber with a stainless steel grip ring |
| Continuity spring | Brass spring in the seal keeps copper pipe electrically connected through the fitting |
| Standards | AWWA C800, NSF/ANSI 61, NSF/ANSI 372 |
| Use | Cold water service lines |
| Insert stiffener | Required in plastic pipe (poly, PEX) |
| Not for | PVC pipe, IPS poly pipe, hot water |
Buy CTS Female Adapters Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Cambridge Brass supplier and sells the 117NL CTS female adapter in 3/4" to 2" sizes. Cleanflow ships across Canada and the USA. Most orders over $199 ship free, and exchanges are accepted within 30 days of purchase under the Cleanflow refund policy. Not sure about the size? Email info@cleanflow.ca or browse all Cambridge Brass fittings.
Frequently Asked Questions
What does FIP mean in plumbing?
FIP means female iron pipe. It is a threaded opening that a male pipe thread (MIP) screws into.
What is the difference between FIP and FPT?
None. FIP, FPT, and FNPT are different names for the same female pipe thread.
What is a female adapter in plumbing?
It is a fitting with an inside thread on one end and a pipe connection on the other. It lets a pipe connect to a valve or fitting that has a male thread.
How do you connect a poly pipe to a brass fitting?
Use a brass compression fitting that matches the pipe's outside size. Put an insert stiffener in the pipe end, push the pipe in, and tighten the nut.
How do you connect copper pipe to threaded pipe?
Use an adapter like this one. The copper pipe goes into the compression end, and the female thread screws onto the threaded pipe with sealant or PTFE tape.
