Description
3-Stage Replacement Cartridge Set: 20 Micron Sediment + 5 Micron Sediment + 0.5 Micron Carbon Block
Overview

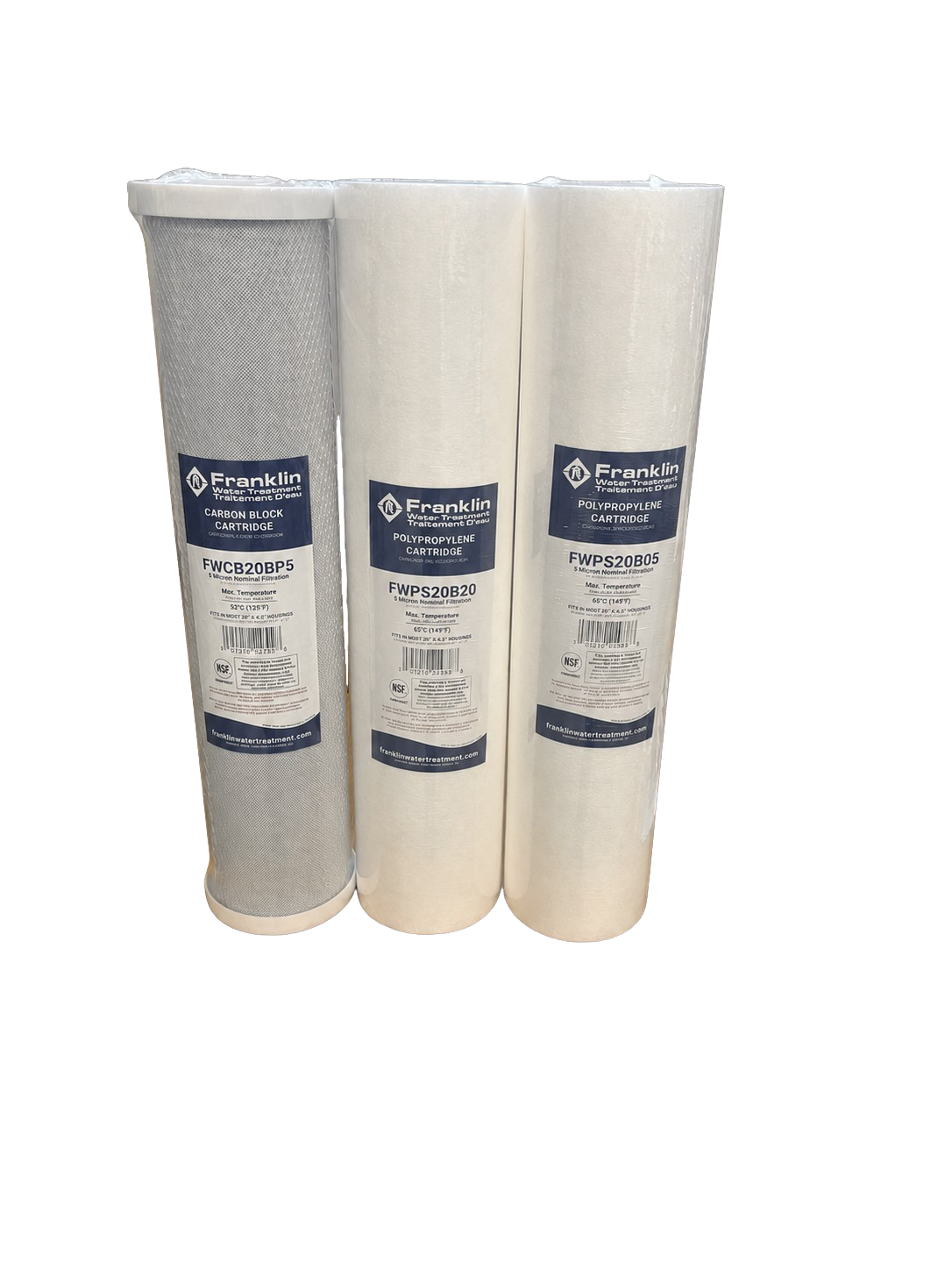

A complete 3-cartridge replacement kit for Big Blue Triplex filtration systems. Each kit includes a 20 micron sediment filter, a 5 micron sediment filter, and a 0.5 micron coconut shell carbon block, configured in a graduated sequence from coarse to fine. The first two stages remove progressively finer sediment. The third stage reduces chlorine, taste, and odor. Available in 10" and 20" Big Blue (4.5" OD) formats.
Kit Contents
| Stage | Filter | Micron | Type | Function |
|---|---|---|---|---|
| 1 | FWPS Melt Blown | 20 | Sediment (depth filter) | Captures sand, silt, rust, scale |
| 2 | FWPS Melt Blown | 5 | Sediment (depth filter) | Captures finer particles that pass Stage 1 |
| 3 | FWCB Carbon Block | 0.5 | Adsorption filter | Reduces chlorine, taste, odor |
The sediment cartridges (Stages 1 and 2) are NSF 42 certified melt blown polypropylene. The carbon block (Stage 3) is NSF 42 and NSF 61 certified coconut shell activated carbon. All certifications are for material safety requirements.
Filter Construction and Staging
Stage 1: 20 Micron Sediment Filtration
The first stage uses a 20 micron melt blown polypropylene cartridge to capture larger particles including sand, silt, rust, and scale before they reach the finer downstream filters. The polypropylene fibers are thermally bonded without binders or adhesives, which makes them chemically resistant and resistant to bacterial growth. By removing coarse sediment first, this stage extends the service life of Stages 2 and 3.
Stage 2: 5 Micron Sediment Filtration
The second stage removes finer suspended particles that pass through the 20 micron first stage. The same thermally bonded melt blown construction provides high dirt-holding capacity with low pressure drop. Together, Stages 1 and 2 ensure that only very fine particles reach the carbon block.
Stage 3: 0.5 Micron Carbon Block Filtration
The final stage uses a 0.5 micron coconut shell activated carbon block to reduce dissolved chlorine, taste, and odor through chemical adsorption. Coconut shell carbon delivers high chlorine reduction capacity with minimal carbon fines. Because Stages 1 and 2 have already removed the sediment load, the carbon block can focus on chemical reduction rather than clogging with particulates, which extends its service life.
Available Sizes
These replacement kits are available in both:
- 10" x 4.5" OD Big Blue Filter Kit — standard residential whole house systems
- 20" x 4.5" OD Big Blue Filter Kit — higher flow applications, heavier sediment loads, or longer service intervals
The 20" cartridges provide higher dirt-holding capacity and longer service life. If your Triplex housing accepts 20" cartridges and you want to change filters less often, the 20" kit is the better value.
Applications
- Whole house water filtration
- Well water sediment and chlorine treatment
- Municipal water chlorine, taste, and odor reduction
- Pre-filtration for UV disinfection systems
- Pre-treatment for reverse osmosis systems
- Residential and light commercial water systems
Buy Big Blue Triplex Replacement Kits from Cleanflow
Cleanflow carries the Big Blue Triplex replacement filter kit in both 10" and 20" sizes. Browse the full Big Blue Water Filters collection or explore the complete Franklin Water lineup. Need Triplex housing? The Triplex 10" Big Blue housing accepts all three cartridges in this kit. Need individual filters instead of the full kit? The FWPS melt blown and FWCB carbon block are available separately. Free shipping on orders over $199. 30-day return policy. Email info@cleanflow.ca for volume pricing.
Frequently Asked Questions
Are these filters compatible with all Big Blue housings?
Yes. The cartridges are standard 4.5" OD Big Blue format and fit most industry-standard Triplex housings in the matching length (10" or 20").
What contaminants does this kit remove?
Stages 1 and 2 remove sediment, sand, rust, dirt, silt, and scale particles. Stage 3 reduces dissolved chlorine, taste, and odor. The carbon block does not remove bacteria. For microbiological treatment, add UV disinfection downstream.
Are the filters NSF certified?
The melt blown sediment cartridges are NSF 42 certified for material safety. The carbon block is NSF 42 and NSF 61 certified for material safety. The chlorine reduction capacity is based on the manufacturer's own lab testing, not NSF performance testing.
What is the difference between the 10" and 20" kits?
Both use the same 3-stage configuration. The 20" cartridges have higher dirt-holding capacity and longer service intervals. Choose 20" for higher-flow systems, heavier sediment loads, or when you want to change filters less often.
How often should the filters be replaced?
Sediment filters (Stages 1 and 2) typically last 3 to 6 months depending on water quality. The carbon block (Stage 3) typically lasts 6 to 12 months. Replace when you notice reduced flow, returning chlorine taste, or when the pressure drop across the housing rises noticeably. Heavy sediment or well water may require more frequent changes.
Can this kit be used on well water?
Yes. The 20 micron first stage handles the coarse sediment common in well water. Test your water first to determine if additional treatment (iron removal, UV disinfection, or softening) is needed beyond this 3-stage kit.
Can I buy the individual cartridges separately?
Yes. Cleanflow stocks the FWPS melt blown sediment filters and FWCB carbon block filters individually. The kit is a convenience bundle for buyers replacing all three stages at once.
