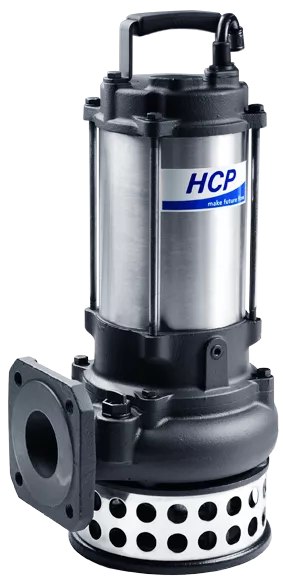

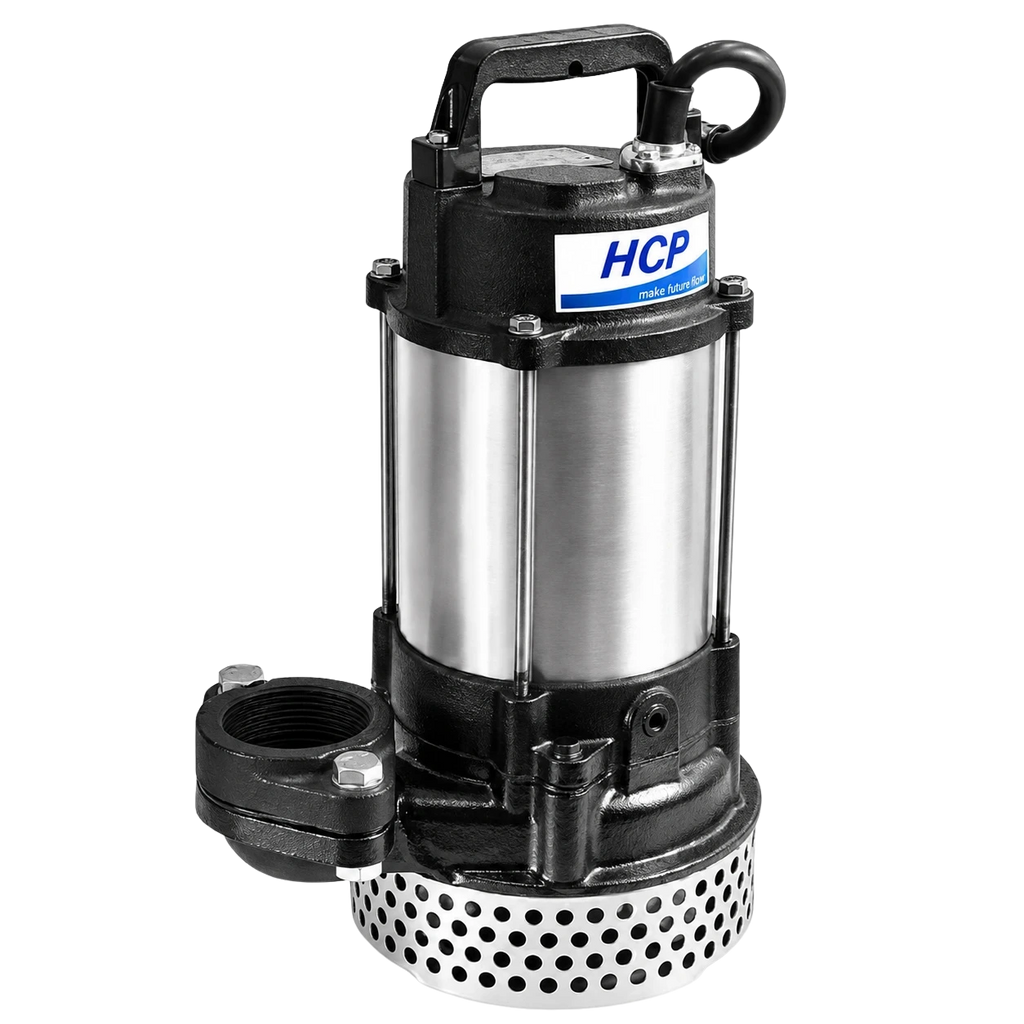

HCP AN-21A Submersible Dewatering Pump for Muddy Jobsite Water
Product Overview
The HCP AN-21A submersible dewatering pump is a 1 HP, 120V unit that moves up to 88 GPM, reaches 53 ft of head, and passes 1/4 inch solids. Its vortex impeller pulls muddy and silty water from sump pits, basements, and construction excavations. The pump comes in single-phase and three-phase versions.
Quick Specs
- Horsepower: 1 HP (0.75 kW)
- Voltage / Phase: 120V 1-phase (also 208/240V and 575V 3-phase), 10 A at 120V, 60 Hz
- Discharge: 2 inch (50 mm), Female NPT
- Max Flow: 88 GPM
- Max Head: 53 ft
- Solids Handling: 1/4 inch (7 mm)
- Impeller: Vortex
- Cord: 30 ft, 3-prong 120V plug
Key Features of HCP AN-21A Submersible Dewatering Pumps
- The vortex impeller passes 1/4 inch (7 mm) solids, so the AN-21A moves muddy, silty, and sandy water that clogs a standard sump pump.
- At 1 HP the AN-21A reaches 53 ft of head, clearing deeper pits and longer discharge runs than a 1/2 HP pump.
- A cast-iron (FC200) casing and volute with a 304 stainless steel motor frame withstand abrasive, continuous duty.
- A double mechanical seal (carbon/ceramic upper, silicon carbide lower) runs in an oil-filled chamber to keep water out of the motor.
- The 120V model adds a built-in thermal protector and moisture sensor, and the IP68 sealed motor runs fully submerged to 33 ft (10 m).
Specifications
| Category | Details |
|---|---|
| Brand | HCP |
| Model | AN-21A |
| SKU (by voltage) | AN-21A-6117EPE3NX (120V), AN-21A-63AOEXE4NX (240V), AN-21A-635OEXE4NX (575V) |
| Product Type | Submersible dewatering / sump pump |
| Motor Output | 1 HP (0.75 kW); input 1.1 kW |
| Voltage Options | 120V 1-phase, 208/240V 3-phase, 575V 3-phase, 60 Hz |
| Rated Current | 10 A (120V 1-phase) |
| Start Method | Capacitor (120V) |
| Speed | 3420 rpm (2 pole) |
| Insulation Class | B |
| Discharge | 2 inch (50 mm), Female NPT |
| Max Flow | 88 GPM |
| Max Head | 53 ft |
| Solids Handling | 1/4 inch (7 mm) |
| Impeller | Vortex, PA+G50 (glass reinforced) |
| Mechanical Seal | Double (carbon/ceramic upper, silicon carbide lower), oil-filled (VG32, 190 cc) |
| Casing / Volute | Cast iron (FC200) |
| Motor Frame | 304 stainless steel (SUS304) |
| Shaft | SUS410 stainless |
| Strainer | 304 stainless steel |
| Cooling | External |
| Protection Devices | Thermal protector and moisture sensor (120V 1-phase) |
| Ingress Protection | IP68 |
| Max Submersion Depth | 33 ft (10 m) |
| Max Liquid Temp | 104F (40C) |
| Cord | 30 ft, SJOW, 3-prong 120V plug |
| Weight | 34 lb (15.5 kg) 1-phase; 33 lb (15 kg) 3-phase, less cable |
| Certifications | cUL (UL778), CSA C22.2 No. 108-14 |
| Manufacturer | HCP Pump Manufacturer Co., Ltd. |
Performance Overview
The 1 HP motor reaches about 53 ft of head, so the AN-21A holds flow on higher and longer discharge runs that stall a smaller pump. Flow peaks near zero lift and drops as height rises.
Applications
- Dewatering flooded basements and cellars
- Emptying construction and excavation pits with silty runoff
- Sump-pit and utility-vault drainage on jobsites
- Flood control and storm cleanup
- Higher-head jobs where a 1/2 HP pump stalls, such as deep pits and long hose runs
Buy the HCP AN-21A Submersible Dewatering Pump Online from Cleanflow
The HCP AN-21A submersible dewatering pump suits crews that need more flow and head to move silty, gritty water a standard sump pump cannot. Cast-iron construction, a vortex impeller, and double seals hold up to abrasive, continuous duty.
Cleanflow Utility Supply Company is an authorized HCP dealer, stocking and shipping HCP pumps across Canada and the continental USA, with free shipping on orders over $199.
Browse the full range of submersible dewatering pumps to compare flow and head, then add the AN-21A to your cart or contact us for help sizing the right pump for your job.
Frequently Asked Questions
Does the HCP AN-21A replace the A-21?
Yes. It is HCP's direct replacement for the discontinued A-21, with the same 1 HP, 2 inch, 1/4 inch solids setup and an updated AN-series motor. It comes in 120V, 240V, and 575V, so existing A-21 installs swap over with no plumbing change.
How much water does the AN-21A move?
Up to 88 GPM, with a maximum head near 53 ft. Flow is highest at low lift and drops as discharge height rises, and the 1 HP motor holds flow at height better than a 1/2 HP pump.
AN-2.5 or AN-21A, which do I need?
Choose the 1/2 HP AN-2.5 for light dewatering at low lift, and the 1 HP AN-21A when you need more flow (88 GPM) or higher head (about 53 ft) for deeper pits and longer runs. Both pass 1/4 inch solids.
What solids can the AN-21A handle?
Up to 1/4 inch (7 mm), through the vortex impeller. That covers muddy, silty, and sandy water. It is not a sewage pump; those pass 2 inch solids.
Is the HCP AN-21A certified, and does it have motor protection?
Yes. It carries CSA C22.2 No. 108-14 and cUL (UL778), with an IP68 sealed motor. The 120V model includes a built-in thermal protector and a moisture sensor.
