Description
Heavy-Duty Submersible Pump for Muddy & Silty Dewatering

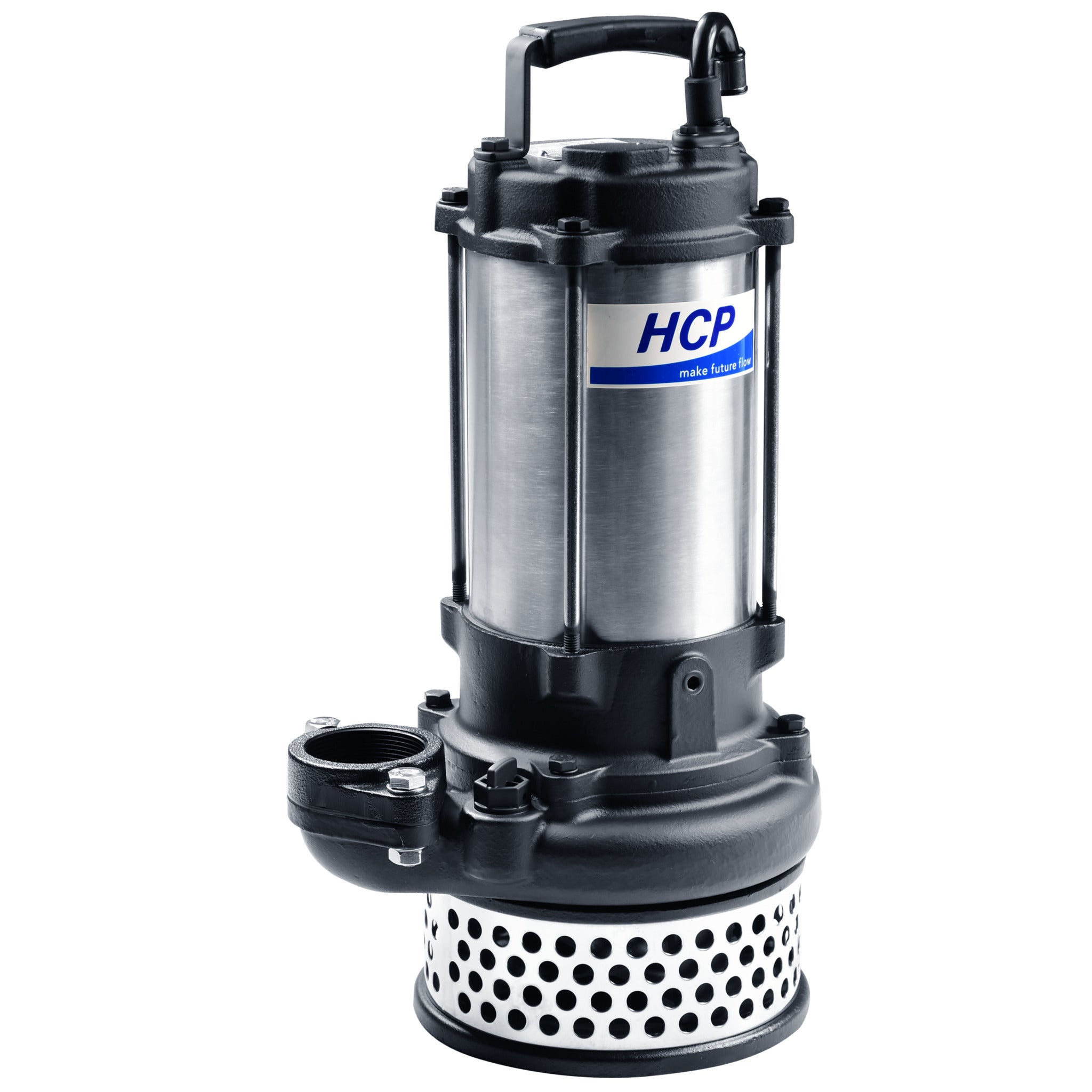

The HCP AN-23 2" Submersible Dewatering Pump is a commercial-grade, high-capacity water removal pump built for challenging muddy and silty conditions. It’s equipped with a 3 HP, 240 V single-phase motor. This robust pump delivers up to 160 GPM flow and is designed for demanding dewatering jobs where reliable performance is key. This reliable HCP pump is part of submersible dewatering pumps built with a cast iron upper cover and volute paired with a 304 stainless steel motor frame. The AN-23 combines strength and corrosion resistance for prolonged duty.
Key Benefits of the Heavy-Duty Dewatering Pump
- Provides high-capacity dewatering with a maximum flow rate of 160 GPM.
- Handles muddy and silty water with solid passage capability.
- Built for durability with cast iron and stainless steel construction.
- Reinforced impeller withstands abrasive conditions.
- Features dual mechanical seals for long life in dirty water applications.
- Bottom strainer reduces the risk of large debris entering the pump.
- Certified for safety and quality with cUL and CSA listings.
HCP AN-23 Submersible Pump Specifications
| Specifications | Details |
|---|---|
| Model | AN-23 |
| Motor Power | 3 HP (2.2 kW) |
| Voltage | 240 V AC, Single Phase |
| Amperage | Approx. 14 A |
| Discharge Port | 2" (50 mm) MPT |
| Max Flow Rate | 160 GPM (605 LPM) |
| Max Head | 102 ft (31 m) |
| Max Solids Handling | ~7/16 in (10.5 mm) |
| Impeller Type | Reinforced Thermoplastic |
| Construction | Cast Iron & 304 Stainless Steel |
| Seals | Carbon/Ceramic & Silicon Carbide |
| Cable Length | 30 ft (9.1 m) |
| Dimensions (H x W x L) | 23" x 11" x 12" approx. |
| Operating Weight | ~77 lbs (35 kg) |
| Certifications | cUL and CSA Certified |
What’s Included
- HCP AN-23 2" Submersible Dewatering Pump
- 30-ft Power Cable with Molded Plug
- Bottom End Strainer
Key Features of HCP AN-23 Dewatering Pump
Powerful 3 HP Motor
A robust 3 HP motor paired with a rugged hydraulic design delivers strong flow and head for demanding dewatering tasks.
Reinforced Impeller
The glass fiber reinforced impeller ensures durability and efficient performance even when pumping debris-laden water.
Dual Mechanical Seals
A combination of carbon/ceramic and silicon carbide seals helps keep water out of the motor housing, extending service life.
Corrosion-Resistant Construction
With cast iron and 304 stainless steel components, the pump resists rust and wear in tough environments.
Bottom End Strainer
The integral strainer reduces risk from large debris like stones, enhancing pump reliability.

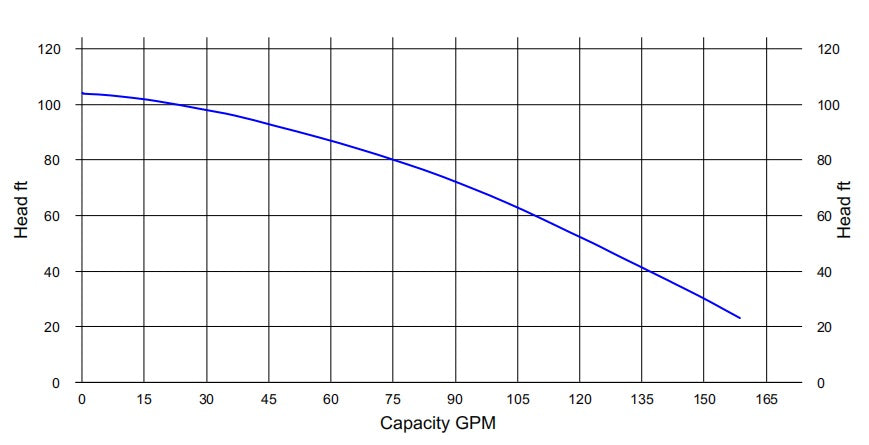

Performance Overview
This submersible dewatering pump is engineered for continuous operation in muddy, silty, or debris-filled water conditions. Its performance balance of flow and head makes it suitable for moderate-distance pumping and elevated discharge applications in construction and industrial environments.
Applications
- Construction site dewatering
- Civil engineering and excavation projects
- Flood water control
- Utility trenches and sumps
- Pond and reservoir dewatering
- General industrial water management
Installation and Usage Guidelines
- Designed for submersible use only; do not run dry.
- Install on a stable surface to avoid vibration or tipping.
- Use within rated temperature and electrical limits.
- For automatic on/off control, pair with a compatible float switch.
Professional-Grade Pumping Solutions from Cleanflow
Cleanflow offers a comprehensive range of high-performance HCP pumps for contractors, industrial operators, and service professionals throughout Canada and the USA. With expert support and reliable availability, Cleanflow helps you find the right pump for your toughest water management needs. Get this today for dependable water removal, efficient performance, and long-lasting reliability on your next project.
Frequently Asked Questions
How deep can the HCP AN-23 be installed?
The AN-23 is designed for typical submersible dewatering depths used on construction and industrial sites. Always follow the manufacturer’s maximum submergence rating and cable limits, and ensure the pump is installed on a stable surface to maintain proper performance.
What type of power supply does the HCP AN-23 require?
The pump operates on 240 V single-phase power and should be connected to a properly protected and grounded electrical circuit. Installation by a qualified electrician is recommended for jobsite use.
Is the HCP AN-23 suitable for continuous operation?
Yes. The AN-23 is built for demanding dewatering applications and can operate for extended periods within its rated limits. Proper submersion, voltage supply, and routine inspection help support continuous operation.
What discharge hose size should be used with the AN-23?
The AN-23 features a 2-inch discharge port, so a 2-inch discharge hose is typically used. Matching the hose size helps maintain flow performance and minimizes back pressure.
Can the HCP AN-23 run dry?
No. The pump is water-cooled and must remain submerged during operation. Running it dry can lead to overheating and damage to the seals and motor.
