Description
Efficient Residual Dewatering for Basements, Pools & Flat Surfaces

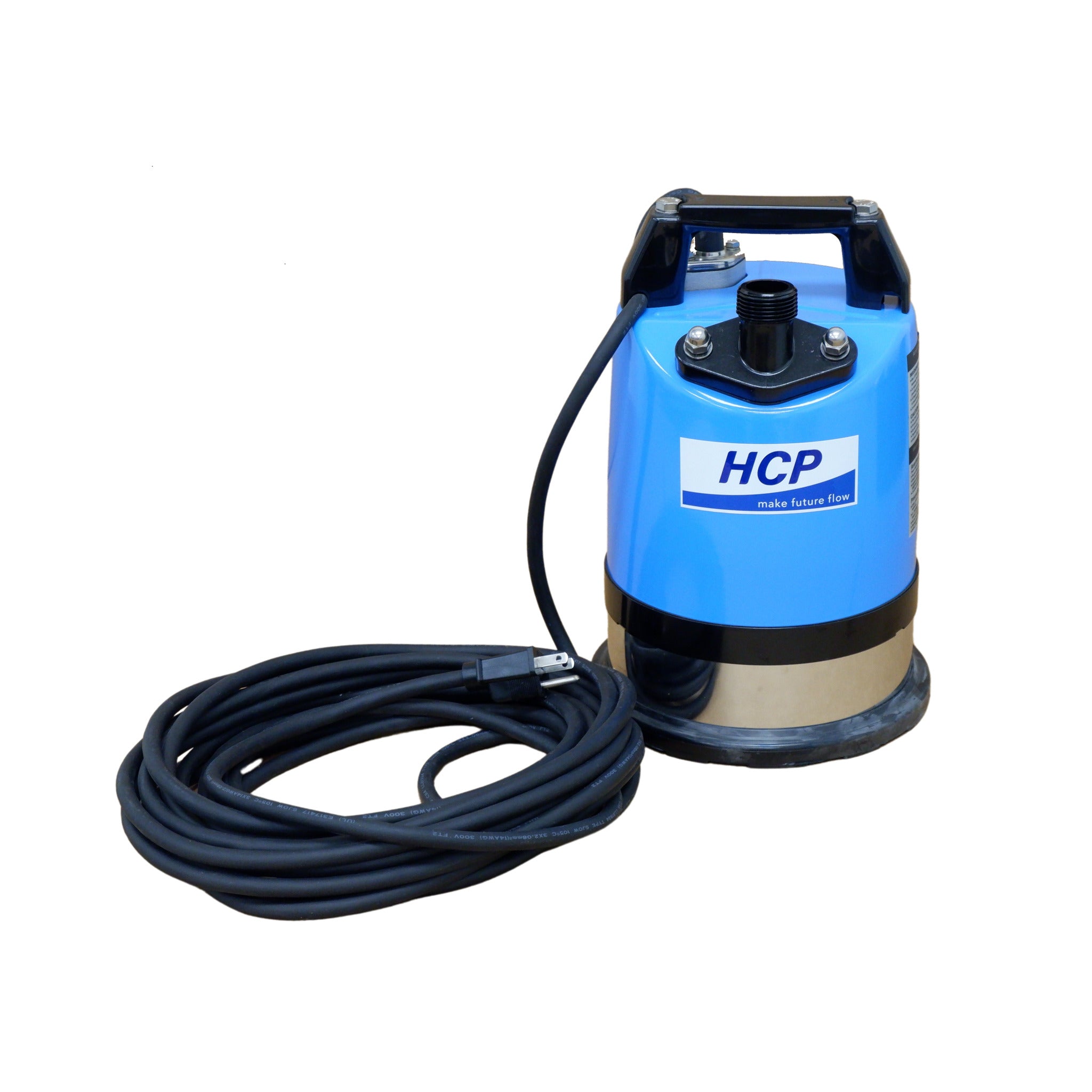

The HCP GDR-400-1 is a compact submersible puddle sucker pump designed for shallow water removal in basements, pool covers, flat roofs, and tanks. It removes water down to 1 mm with a start-up at around 5 mm, making it ideal for clearing residual water and small puddles. This lightweight yet durable HCP pump is part of a broad range of professional submersible dewatering pumps trusted for reliable water management.
Key Benefits of the Residual Dewatering Pump
- Removes water down to very low residual levels for thorough cleanup
- Achieves flow rates up to 64 GPM for fast water removal
- Handles small suspended solids up to 1/4" in diameter
- Extends service life with dual mechanical seals in an oil-filled chamber
- Protects the motor with an integrated thermal protector
- Sits flat on surfaces for effective shallow water pumping
- Resists wear with a durable urethane rubber impeller
- Compact and easy to position in tight areas
HCP GDR-400-1 Pump Specifications
| Specification | Details |
|---|---|
| Discharge Size | 1" MPT |
| Impeller | Robust Urethane Rubber |
| Total Head | 46 ft (14.02 m) |
| Water Capacity | 26 GPM (98 LPM) |
| Maximum Solid Intake | 0.25" (6.35 mm) |
| Motor Power | 0.5 HP (0.373 kW) |
| Phase | Single Phase |
| Voltage | 115V AC |
| Start Method | Capacitor |
| Running Amperage | 5.6 A |
| Cable Length | 30 ft (9.1 m) |
| Pump Diameter | 8" (203 mm) |
| Overall Height | 12" (305 mm) |
| Operating Weight | 31 lb (14 kg) |
| Certifications | cUL and UL Certified |

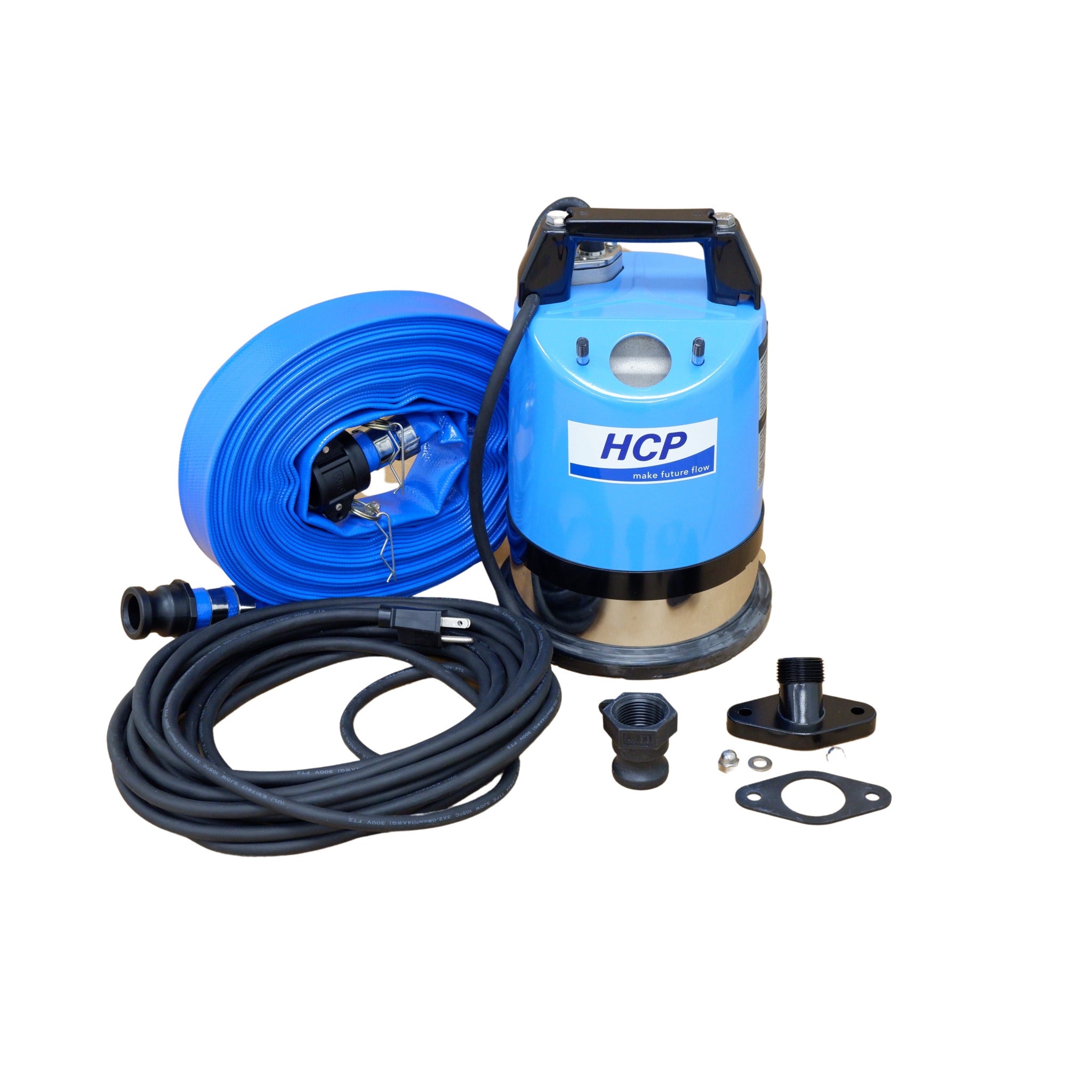

What’s Included
- HCP GDR-400-1 Submersible Puddle Sucker Pump
- 30-ft Power Cable with 120 V three-prong plug
- Removable Discharge Connection

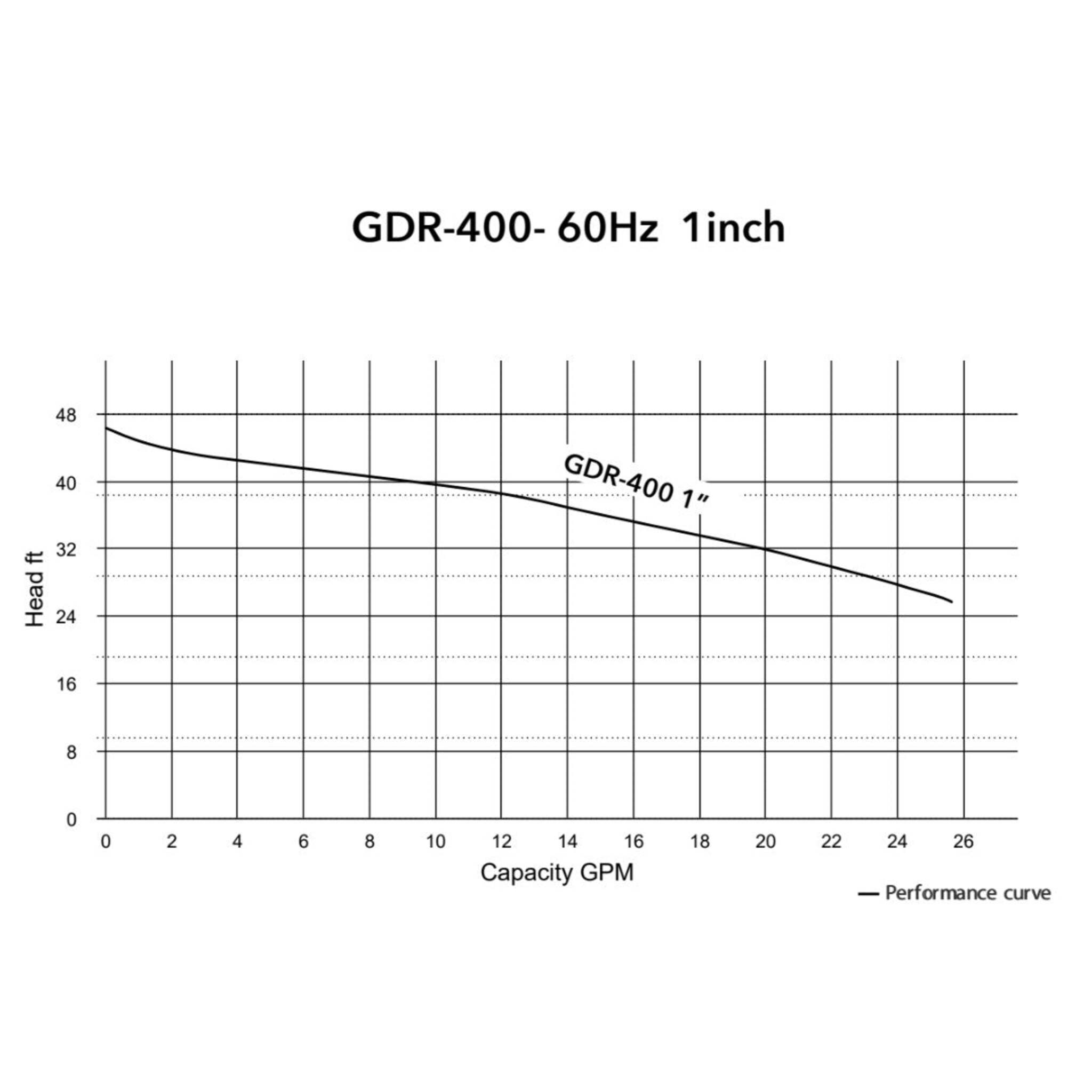

Performance Overview
This 115V submersible puddle sucker pump is designed for efficient shallow-water removal in low-depth applications. With a 1/2 HP motor and capacity of up to 64 GPM, it delivers a practical balance of flow and lift for clearing puddles, seepage, and residual water on flat surfaces such as basements, rooftops, and pool covers. Its low-level pumping capability makes it especially effective where minimal standing water remains.
Applications & Usage Guidelines
This puddle sucker pump is engineered for residual dewatering tasks where water levels are shallow, making it perfect for:
- Basements, crawl spaces, and utility rooms
- Pool covers and deck areas
- Flat roofs or patios after rain
- Storage tanks and shallow pits

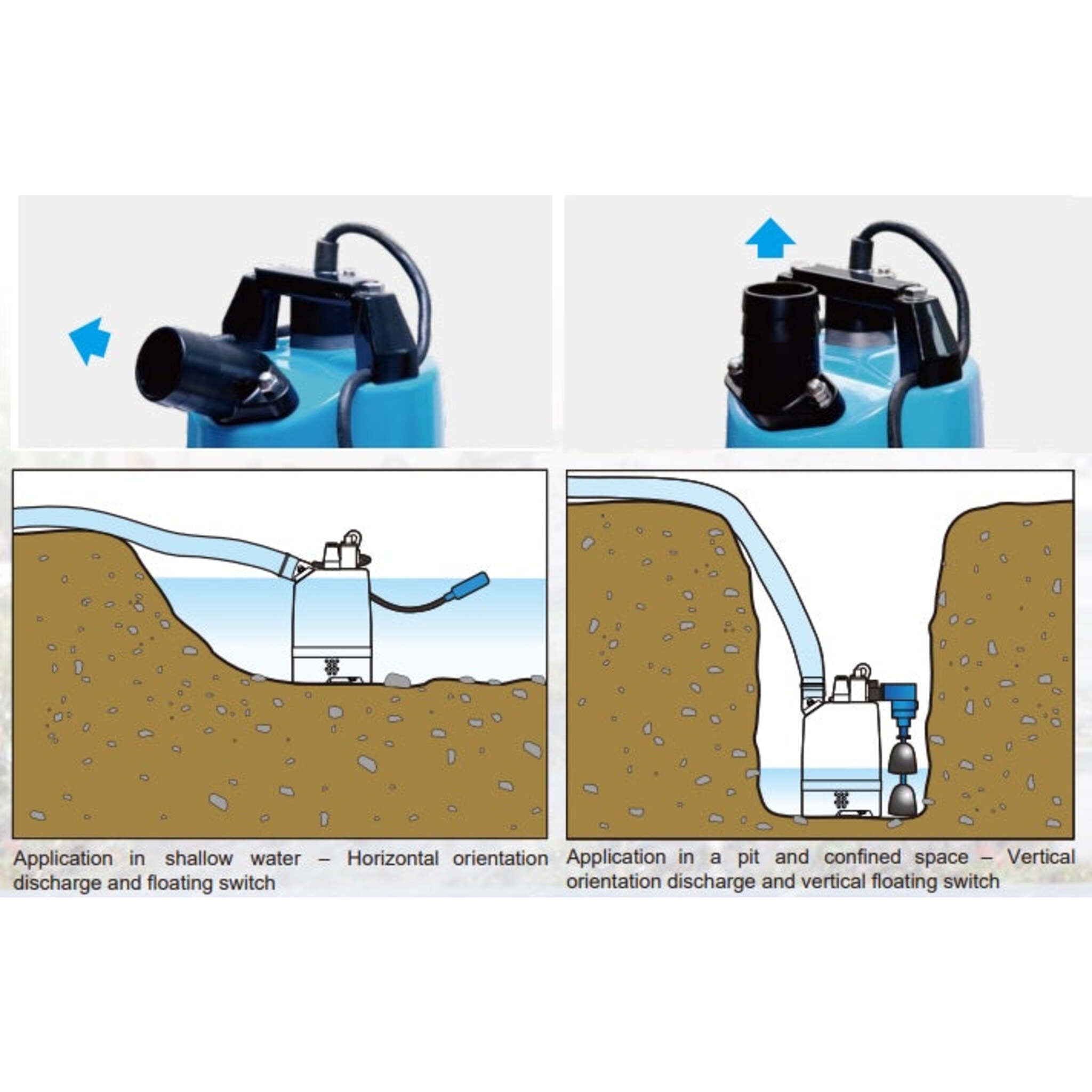

Usage Tips:
- Only use this pump in submerged conditions
- Place the pump flat on the surface for optimal residual removal down to minimum water depths
- For automatic operation, pair with a compatible float switch accessory
Accessories & Add-Ons
- 1" Layflat Discharge Hose: Efficient discharge for surface water removal
- Type A Camlock Fittings: Quick connect/disconnect hose fittings
- Piggyback Float Switch: Automatic operation based on water level changes
High-Performance Pumping Solutions from Cleanflow
Cleanflow offers a full range of HCP pumps built for dependable performance in water management applications, from compact seepage models like the GDR-400-1 to heavy-duty industrial dewatering pumps. Known for durability and efficient operation, HCP pumps serve contractors, industrial operators, and property owners who need reliable water removal solutions.
Frequently Asked Questions
Can the GDR-400-1 remove water from flat surfaces down to very low depths?
Yes. The GDR-400-1 is designed for residual dewatering and can remove water down to approximately 1 mm, making it ideal for clearing shallow puddles and leftover water on flat surfaces.
Is this pump suitable for pool covers and basements?
Yes. The pump performs well on flat surfaces such as pool covers, patios, basements, crawl spaces, and other areas where shallow water accumulates.
Does the GDR-400-1 support automatic on and off control?
Yes. Automatic operation can be achieved by pairing the pump with a compatible shallow-water piggyback float switch accessory.
Is the GDR-400-1 easy to move and position?
Yes. Its compact size and lightweight design make it easy to carry, position, and reposition as needed for shallow water removal tasks.
What type of water is this pump best suited for?
The GDR-400-1 is best suited for clean or lightly dirty water and shallow seepage applications. It is not intended for heavily debris-filled or sludge-heavy water.
