Hydromatic VA1 10 Cast Iron Sump Pump, 3/10 HP, 38 GPM, 120V, Vertical Piggyback Float Switch, Thermal Overload Protected, 1-1/2" NPT, Oil-Fill Motor

SKU: VA1 10

Price:
Sale price$263.88 CAD
Free shipping
Stock:
In stock
Brand-Wide Volume Discounts: More Items, More Savings!
{"scale_min":"1.0","scale_max":"5.0","value":"4.94"}

Description

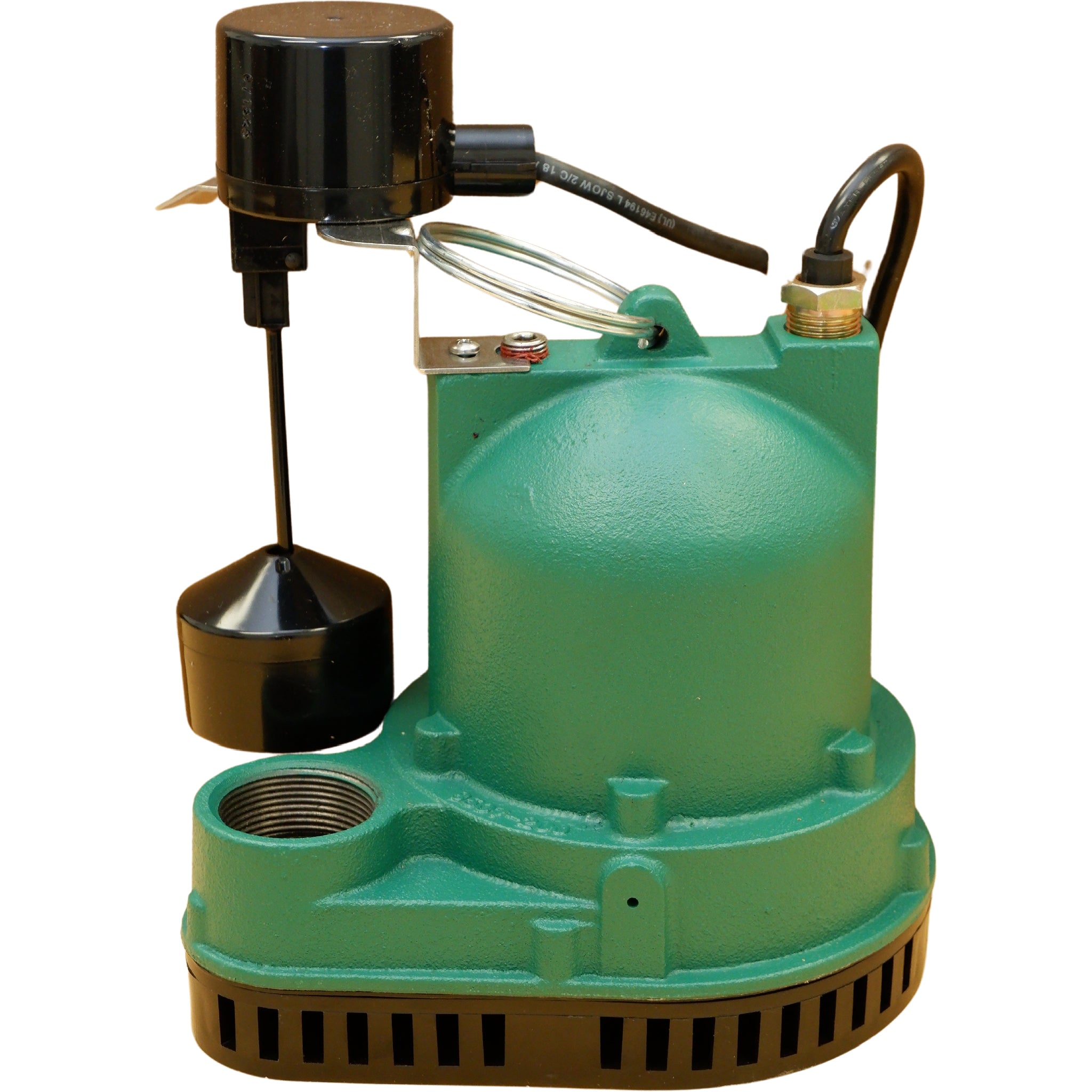

Hydromatic VA1 10 Cast Iron Sump Pump with Vertical Float Switch

Upgrade your water protection system with our ultra-efficient Hydromatic VA1-10 Cast Iron Sump Pump. Part of Hydromatic’s top-selling series, this submersible sump pump features superior durability, reliability, and performance, perfect for crawl spaces, basements, sump pits, and industrial circulation applications.

The Hydromatic VA1 10 sump pump is characterized by an automatic operation mechanism thanks to Hydromatic's patented vertical mechanical float switch. Moreover, each switch includes a piggyback plug-in setup, simplifying conversion to manual operation - providing you effortless control over your flood protection system.

Hydromatic VA1 10 Cast Iron Sump Pump

Built to last, this sump pump features a robust cast-iron body and oil-filled motor, engineered to deliver excellent cooling properties. These qualities extend the pump's lifespan and protect it from overheating. Thanks to its motor windings with in-built automatic thermal overload protection, your pump is shielded from potential heat damage.

Key Features of the VA1 10 Sump Pump Include:

  • Carbon-ceramic mechanical shaft seal ensuring longevity and optimal performance
  • Single-row ball-bearing construction offering superior reliability
  • Oil-filled motor with automatic reset thermal overload protection, safeguarding your pump from overheating
  • The Hydromatic VA1 sump pump includes a vertical piggyback float switch for automatic operation.

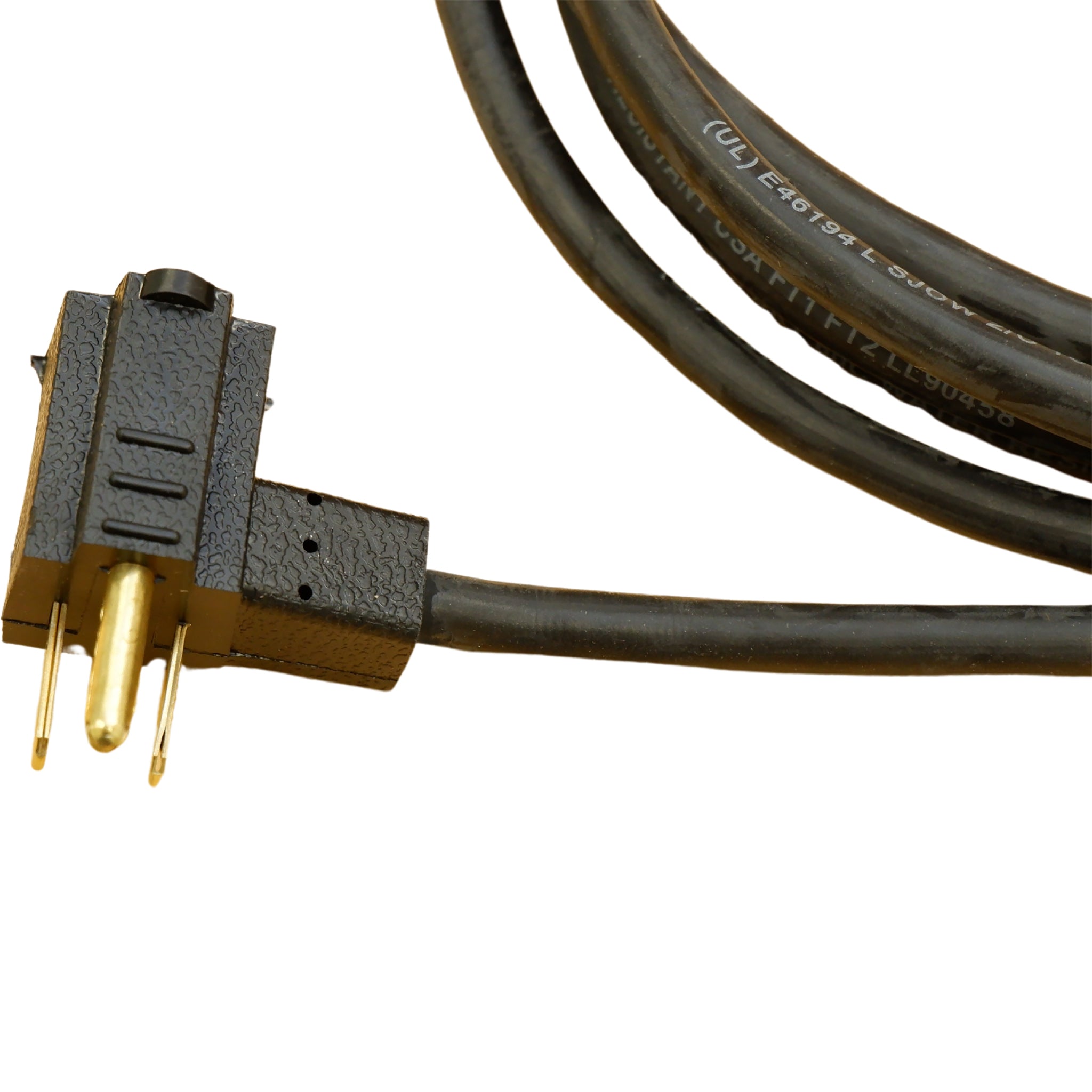

  • Piggyback electrical plug for straightforward maintenance and switch replacement
  • 10-foot vertical pump switch with piggyback plug for hassle-free operation and easy installation into narrow sump pits
  • Best-in-class 3-year limited warranty ensuring your peace of mind
  • See our Sump Pump Accessories collection for the fittings, hose, check valves, and hose clamps for your install.

Installation Components

Optimize Your Setup with Essential Upgrades

When installing or replacing your Hydromatic VA1-10 Cast Iron Sump Pump, consider enhancing your system with our recommended installation components. Upgrading at the time of pump replacement ensures a seamless integration and reduces the need for future system interruptions:

Discharge Hose Kit: Designed to handle the output of the VA1-10, this sump pump discharge hose kit includes all necessary fittings, ensuring a leak-proof connection and efficient water displacement.

Flex Rubber Check Valve: Our flex rubber check valve is easy to install and provides backflow prevention. Simple screw clamp installation.

Sump Pump Alarm with Float Switch: Our sump pump liquid level alarm system can notify you before water overflows. Ideal for monitoring sump pit water levels when you're away or sleeping.

Replacement Float Switch: Just looking for a replacement float switch? Check out the SJE VerticalMaster 3, a universal part that fits the VA1 10 as a replacement for the originally installed vertical float switch.

Compare Similar Models & Explore More Options

Need this pump with a wide-angle float switch instead? Try the Hydromatic WA1-10 with a piggyback-style wide-angle float for easier servicing.

You can also explore our full submersible sump pumps collection for more options from Hydromatic and other trusted brands, including high-capacity and automatic models.

Hydromatic Sump Pump Performance Curve

Hydromatic VA1 10 Cast Iron Sump Pump Dimension Drawing

Specifications Table – Model: Hydromatic VA1 sump pump (VA1-10)

 Specifications
Materials of Construction Cast Iron and Engineered Thermoplastic
Switch Type 10-Ft Vertical Piggyback
Horsepower 0.3 HP
Weight 23 lbs
RPM 1550
Voltage 115V AC, 1 Phase, 60 Hz
Full Load Amps 8.0
Motor Type Shaded Pole (4 Pole)
NEMA Design A
Insulation Class B
Minimum Sump Diameter 12"
Discharge Pipe Size 1-1/2" Female NPT
Maximum Solids 1/2" (13mm)
Maximum Output 38 GPM
Intermittent Liquid Temp 120°F
Power Cord 10-Ft Length (18/3 SJTW)
Agency Listing CSA
Warranty 3 Year Limited

Why Choose the Hydromatic VA1-10?

The Hydromatic VA1-10 sump pump is part of the trusted Hydromatic pumps line, designed for reliable performance in confined spaces. Here’s why professionals choose it:

  • Durable Build – Cast-iron construction and oil-filled motor for long life.
  • Automatic Reliability – Vertical float switch ensures consistent operation.
  • Easy Conversion – Piggyback plug allows quick switch to manual use.
  • Compact Design – Perfect for narrow pits and tight installations.
  • Proven Performance – The Hydromatic VA1 sump pump delivers dependable water removal in residential and light industrial applications.

Frequently Asked Questions

Is the Hydromatic VA1 sump pump suitable for narrow pits?

Yes, the Hydromatic VA1 sump pump is ideal for narrow pits. Its vertical mechanical float switch requires only a 12-inch diameter, making it perfect for tight spaces while still providing reliable water removal and easy maintenance in confined sump installations.

What’s the difference between VA1-10 and WA1-10?

The Hydromatic VA1-10 sump pump features a vertical float switch, perfect for narrow pits with limited space. In contrast, the WA1-10 uses a wide-angle float switch, offering easier servicing and reliable performance in larger pits. Choosing between them depends on your sump pit’s diameter and installation requirements.

Can you adjust the float switch on a sump pump?

Yes, you can adjust a sump pump vertical float switch if it’s not turning on or off at the correct water levels. Always disconnect the pump from the power supply first, then readjust the float switch. Multiple adjustments may be needed to achieve the ideal on/off operation.

Where to buy a Hydromatic sump pump?

You can buy the Hydromatic sump pump directly from Cleanflow, your trusted Canadian supplier of pumps and water management solutions. Serving customers across North America, Cleanflow offers the Hydromatic VA1-10 sump pump and other Hydromatic pumps, ensuring fast shipping, expert support, and reliable performance for residential, commercial, and industrial needs.
