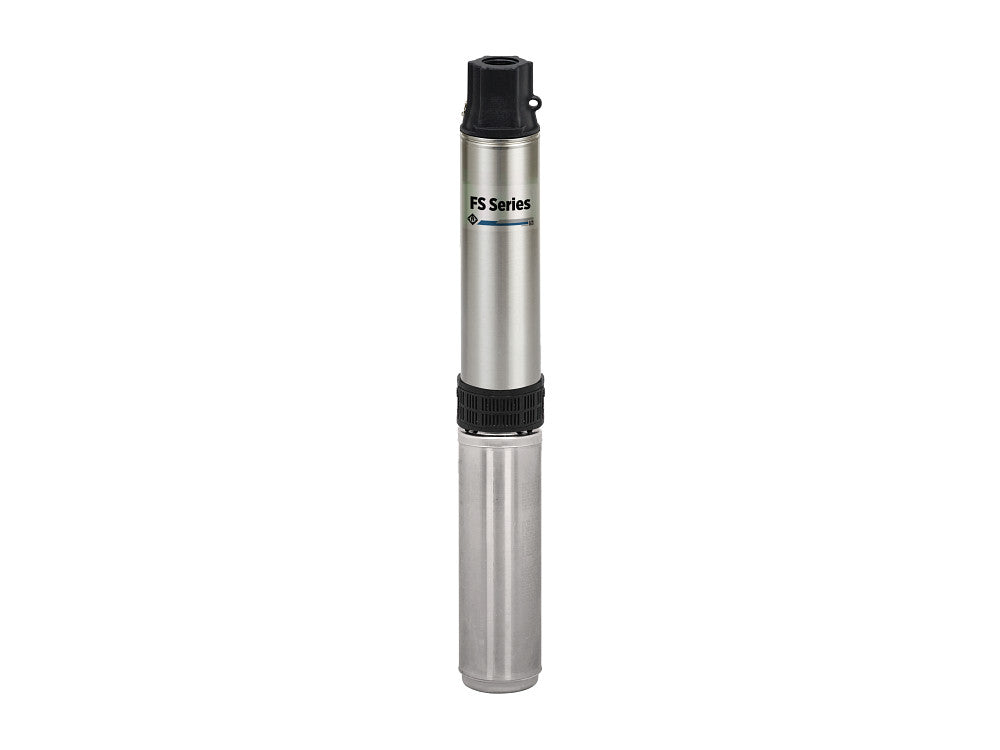

Franklin Electric 22FS15S4-3W230 Submersible Well Pump – 1.5 HP, 22 GPM, 230V

High-Flow Franklin 1.5 HP Submersible Well Pump for Potable and Irrigation Systems

The Franklin Electric FS Series 22FS15S4-3W230 is a submersible well water pump for residential and agricultural water systems. This 1.5 hp single-phase submersible pump uses a 4-inch encapsulated motor and stainless steel construction to deliver consistent flow for private wells and pressure systems. Certified to ANSI/NSF Standard 61, this Franklin Electric submersible pump is a reliable choice for potable water applications.

Key Benefits of the Franklin 1.5 HP Submersible Well Pump

• Delivers a consistent and reliable water supply with a 22 GPM flow rate.
• Improves system longevity, especially when pumping abrasives.
• Reduces vertical downthrust applied to the submersible motor.
• Increases the overall performance and efficiency of the water system.
• Ensures safety for drinking water applications with NSF 61 certification.
• Operates with an efficiency of 73.00% at service factor load.
• 1.5 hp single-phase submersible pump delivers reliable power for residential and agricultural systems.

Franklin Submersible Pump Specifications

What’s Included

• Submersible well pump (Model: 22FS15S4-3W230)
• Factory-installed 1.5 HP Franklin Electric motor

Available Options

Choose from two available options to match your system requirements:

• Pump + Motor Only: Receive the Franklin Electric FS Series submersible well pump with the integrated 1.5 HP single-phase motor.

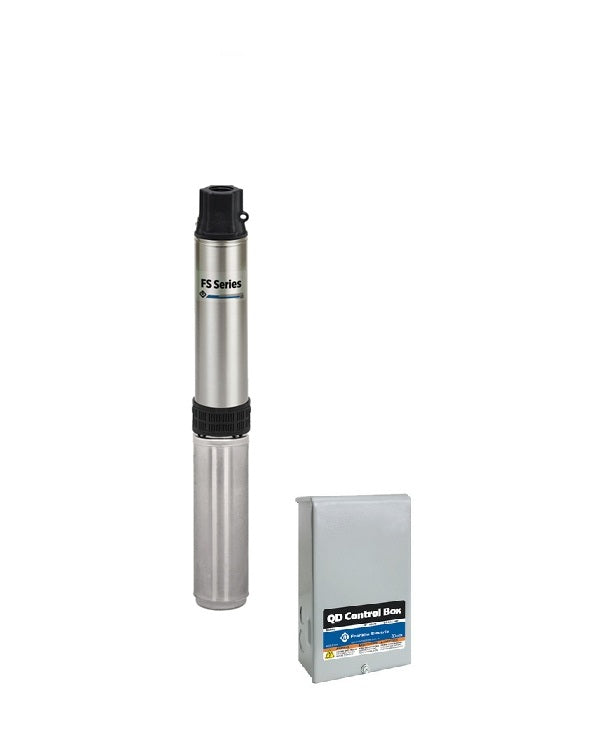

• Pump + Motor with Control Box: The same pump and motor set, plus a compatible control box (Part Number 2801074915) for 3-wire operation and enhanced system protection.

Select the appropriate option before ordering to ensure you have the components needed for your installation.

Key Features – Franklin Electric 1.5 HP Submersible Well Pump (Model 22FS15S4-3W230)

Floating Stage Hydraulics

The FS Series submersible well pump floating stage design improves efficiency and minimizes wear from abrasives, extending the pump's operational life.

Stainless Steel Construction

The pump body, discharge, intake screen, and motor bracket are made from corrosion-resistant AISI 304 stainless steel for durability in well environments.

Encapsulated Motor

The Franklin 1.5 hp submersible well pump motor is fully encapsulated for reliable, continuous-duty operation.

Integrated Check Valve

Includes a built-in check valve to protect the system from backflow.

3-Wire Motor Design

Requires a control box (part number 2823008110), allowing for easier access to components and system diagnostics from the surface. Find compatible options in our well pump accessories collection.

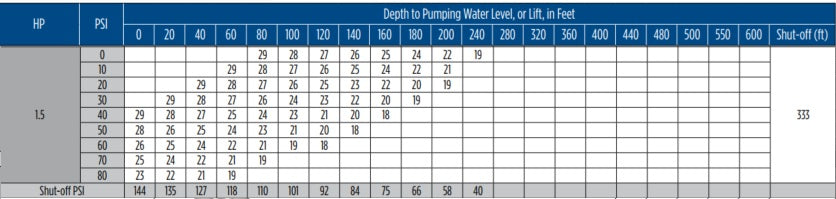

Performance Overview

This Franklin submersible pump 1.5 hp model is suited for applications requiring a 22 GPM flow rate. It performs reliably up to a maximum shut-off head of 333 feet. The pump's 10-stage design ensures consistent pressure, ideal for larger homes or irrigation systems needing steady water delivery.

Common Applications

• Residential potable water systems
• Private well water supply
• Agricultural irrigation
• Water pressure boosting systems
• General clean water transfer
• Livestock watering systems
• Greenhouse and horticultural water delivery

Installation and Usage Guidelines

• This pump is intended for clean, potable water applications only.
• The 3-wire motor requires an external control box for operation.
• Ensure your well casing is a minimum of 4 inches in diameter for proper installation.
• For a complete and secure installation, consider using durable pitless adapters.
• Maximum fluid temperature should not exceed 120 °F.

Purchase the Franklin Electric Submersible Pump from Cleanflow

Cleanflow is a trusted supplier of water system components, including Franklin Electric products, across Canada and the USA. We stock reliable pumps and accessories to ensure your projects are completed with quality parts.

Explore our complete collection of well pumps for more options.

Frequently Asked Questions

Why can’t I see an intake screen on this pump?

The intake screen on Franklin Electric FS Series submersible well pumps is internal, not an external wrap-around screen. This internal design helps protect the pump and supports efficient operation. Because the intake screen is built into the motor bracket, it is not visible from the outside unless the pump is partially disassembled.

What is the primary advantage of floating stage hydraulics?

Floating stage hydraulics improve durability and efficiency by minimizing internal wear, even when pumping abrasive materials. This design helps extend pump life and maintain consistent performance.

Is this Franklin Electric well pump suitable for drinking water?

Yes. This pump is ANSI/NSF Standard 61 certified, confirming it is safe for use in potable drinking water systems.

What are the electrical requirements for this pump?

This 1.5 HP single-phase submersible pump requires a 230V, single-phase, 60 Hz power supply and must be operated using a compatible 3-wire control box.

What size discharge pipe is needed?

The pump is equipped with a 1.25-inch FNPT threaded discharge connection.

Can this pump run continuously?

Yes. The Franklin Electric 1.5 HP submersible well pump features a continuous-duty rated motor. Proper system design, including correctly sized pressure tanks, helps protect the pump and maintain steady water pressure.

What is included in the box?

The package includes the Franklin Electric FS Series submersible well pump and integrated motor. Two purchase options are available: pump and motor only, or pump and motor with a compatible control box. Additional installation components are sold separately.
